Introduction
This user manual provides comprehensive instructions for the Yale Y879/55/130/1 Combination Padlock. Please read this manual carefully before using your padlock to ensure proper setup, operation, and maintenance. Retain this manual for future reference.
Product Overview
The Yale Y879/55/130/1 is a robust combination padlock designed for securing various items and locations, including gates, sheds, and garages. It features a durable construction and a protective cover for enhanced weather resistance.
Key Features:
- Combination Locking Mechanism: Eliminates the need for keys, offering convenience and peace of mind.
- Protective Cover: Shields the locking mechanism from environmental elements, enhancing durability and weather resistance.
- Versatile Application: Suitable for securing outdoor structures like gates, garden sheds, and garages.
- Durable Construction: Made from alloy steel and stainless steel for reliable security.
Image 1: Yale Y879/55/130/1 Combination Padlock with its protective cover in both open and closed positions, showcasing the combination dials.
Setting Your Combination
Your Yale Y879/55/130/1 Combination Padlock comes with a factory-set combination, usually 0-0-0-0. You can easily reset this to a personal combination of your choice. Please note that specific instructions may vary slightly; always refer to the packaging or any included leaflet for the most accurate steps for your specific padlock.
- Open the Padlock: Ensure the padlock is open. If it's new, use the factory-set combination (e.g., 0-0-0-0) to open it.
- Locate the Reset Mechanism: On most combination padlocks, there is a small reset button, lever, or screw. For this model, it is typically located on the side or bottom of the padlock, or the shackle itself might need to be rotated 90 or 180 degrees.
- Engage Reset Mode:
- If there's a button: Press and hold the reset button (you might need a pen or small tool).
- If there's a lever: Move the lever to the 'SET' position.
- If shackle rotation: With the padlock open, rotate the shackle 90 or 180 degrees (depending on the model) and press it down into the body of the lock.
- Set Your New Combination: While in reset mode, rotate the dials to your desired personal combination. Choose a memorable but secure sequence of numbers.
- Disengage Reset Mode:
- Release the reset button.
- Move the lever back to the 'LOCK' position.
- Pull the shackle up and rotate it back to its original position.
- Test the New Combination: Scramble the dials, then enter your new combination and attempt to open the padlock. Ensure it opens correctly. Scramble the dials again to lock it.
Important: Write down your combination and store it in a secure, memorable place. If you forget your combination, there is no master key or override, and the padlock cannot be opened without knowing the code.

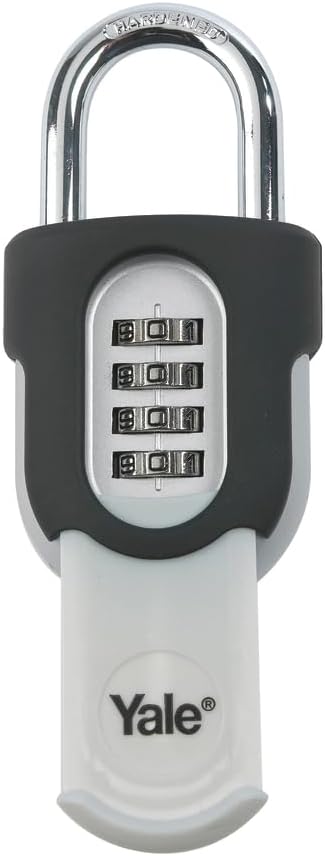

Image 2: Close-up view of the Yale Y879/55/130/1 Combination Padlock, showing the four combination dials and the shackle in an open position, ready for combination setting or use.
Operating Instructions
To Open the Padlock:
- Align the dials to your personal four-digit combination.
- Pull up the shackle to release the lock.
To Close and Lock the Padlock:
- Ensure the shackle is fully inserted into the padlock body.
- Scramble the dials to a random sequence of numbers. This secures the padlock and prevents unauthorized opening.

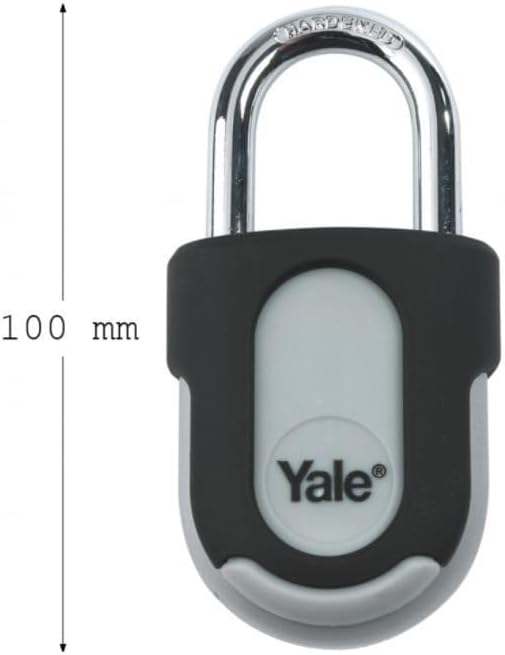

Image 3: The Yale Y879/55/130/1 Combination Padlock in its closed and locked state, with the protective cover concealing the dials.
Maintenance
To ensure the longevity and smooth operation of your Yale combination padlock, especially when used outdoors, follow these maintenance tips:
- Regular Cleaning: Periodically wipe down the padlock with a damp cloth to remove dirt and grime.
- Lubrication: If the combination dials become stiff or difficult to turn, apply a small amount of silicone-based lubricant or WD-40 to the moving parts. Avoid oil-based lubricants that can attract dust.
- Protective Cover: Always ensure the protective cover is properly closed when the padlock is not in use to shield the mechanism from moisture and debris.
- Inspect for Wear: Regularly check the shackle and body for any signs of damage or excessive wear that might compromise security.
Troubleshooting
Padlock will not open with the correct combination:
- Ensure each number is precisely aligned in the center of the viewing window.
- Verify that you are using the correct combination. If you recently changed it, try both the old and new combinations if you are unsure.
- Check for any debris or foreign objects obstructing the dials or shackle mechanism.
Dials are stiff or hard to turn:
- Apply a small amount of silicone-based lubricant or WD-40 to the dials and the shackle mechanism. Work the dials back and forth to distribute the lubricant.
- Ensure the padlock is clean and free from dirt or rust buildup, especially if used in outdoor environments.
Forgot the combination:
Unfortunately, combination padlocks like the Yale Y879/55/130/1 do not have a master key or a way to reset the combination if it has been forgotten without knowing the current code. It is crucial to keep your combination in a secure and memorable location.
Specifications
| Model Number: | Y879/55/130/1 |
| Brand: | Yale |
| Lock Type: | Combination Lock |
| Material: | Alloy Steel, Stainless Steel |
| Approximate Dimensions (H x W x D): | 105.1 mm x 53.6 mm x 32.4 mm |
| Weight: | 280 Grams |
| Color: | Multicolor (typically black/grey with metal shackle) |
Image 4: Technical drawing illustrating the precise dimensions of the Yale Y879/55/130/1 Combination Padlock, including shackle diameter and body measurements.
Safety Information
- Ensure the padlock is securely closed and the dials are scrambled after each use to maintain security.
- Do not force the shackle or dials, as this can damage the locking mechanism.
- Keep the padlock out of reach of children to prevent accidental locking or tampering.
- This padlock is a deterrent against theft; it does not guarantee absolute security. Always use it in conjunction with other security measures where appropriate.
Warranty and Support
For information regarding warranty coverage, technical support, or to purchase replacement parts, please visit the official Yale website or contact Yale customer service directly. Contact details can typically be found on the product packaging or the Yale brand website.
Official Yale Website: www.yalehome.com
