Introduction
Welcome to the user manual for your Calor GV7165 Express Turbo Steam Generator Iron. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and keep it for future reference.
Product Overview
The Calor GV7165 Express Turbo Steam Generator Iron is designed for powerful and efficient ironing. It features a high-pressure steam system and a large water tank for extended use, ensuring quick and effective wrinkle removal.

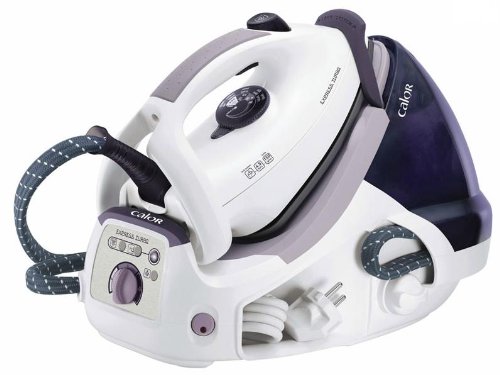

Figure 1: Front view of the Calor GV7165 Express Turbo Steam Generator Iron, showcasing its compact design and purple water tank.
Setup and First Use
- Unpacking: Carefully remove the steam generator iron from its packaging. Retain all packaging materials for future transport or storage.
- Placement: Place the steam generator on a stable, heat-resistant surface, such as an ironing board designed for steam generators. Ensure adequate ventilation.
- Water Tank Filling: The appliance features a large 1.4-liter water tank. Fill the tank with tap water. For optimal performance and to prolong the life of your appliance, consider using demineralized or distilled water, especially in hard water areas. The quick filling system allows for refilling without waiting.
- Cord Management: Utilize the integrated steam cord storage zipper and the electrical cord storage compartment for neat organization.
- Securing the Iron: Use the Lock System to securely attach the iron to its base unit for safe transport and storage.
- Power Connection: Plug the power cord into a suitable grounded electrical outlet.
- Heating Up: Switch on the appliance. The iron heats up rapidly, typically within 2 minutes. The "Steam Ready" indicator light will illuminate when the iron is ready for use.
Operating Instructions
- Steam Generation: The Calor GV7165 provides unlimited autonomy, allowing for continuous ironing without interruption.
- Steam Output: This appliance delivers a powerful continuous steam output of 100 g/min. For stubborn creases, activate the Turbo function for a boost of 150 g/min.
- Variable Steam: Adjust the steam output according to the fabric type and your ironing needs.
- Pressure: The 4.5 bar pressure ensures steam penetrates deep into the fibers for effective wrinkle removal.
- Soleplate: The Ultragliss Diffusion soleplate glides smoothly over all fabric types, providing excellent heat distribution.
- Easycord System: The Easycord system keeps the steam cord elevated, preventing it from interfering with your ironing.
- Vertical Steaming: The powerful steam output also allows for vertical steaming of hanging garments, curtains, and delicate fabrics.
Maintenance and Care
- Descaling: The appliance features a "Tank Cleaning" or "Empty Tank" indicator. Regularly descale your steam generator iron to maintain optimal performance and extend its lifespan. Refer to the full instruction manual for detailed descaling procedures.
- Water Tank: The stainless steel water tank is designed for durability. Ensure it is cleaned periodically.
- Cleaning the Soleplate: Clean the Ultragliss Diffusion soleplate with a damp cloth after it has cooled down. Do not use abrasive cleaners or metallic scouring pads.
- Storage: After use, allow the appliance to cool completely. Secure the iron to its base using the Lock System and store the cords in their designated compartments. Store in a dry, safe place.
Troubleshooting
If you encounter issues with your Calor GV7165, please refer to the following common troubleshooting steps:
- No Steam:
- Check if the water tank is filled.
- Ensure the appliance is properly plugged in and switched on.
- Wait for the "Steam Ready" indicator light to illuminate.
- Check for blockages in the steam vents; descale if necessary.
- Water Leaking:
- Ensure the water tank cap is securely closed.
- Do not overfill the water tank.
- Check if the iron is at the correct temperature setting for steam.
- Iron Not Heating:
- Verify the power cord is securely plugged into a working outlet.
- Check if the appliance is switched on.
If problems persist, please contact customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | Calor |
| Model Number | GV7165 |
| Power (Wattage) | 2200 W |
| Steam Pressure | 4.5 bar |
| Continuous Steam Output | 100 g/min |
| Turbo Steam Boost | 150 g/min |
| Water Tank Capacity | 1.4 L |
| Heat-up Time | 2 minutes |
| Soleplate Material | Ultragliss Diffusion (Stainless Steel) |
| Product Dimensions | 39.8 x 23 x 26 cm |
| Product Weight | 150 Grams (Note: This likely refers to the iron unit only, not the full system.) |
Warranty and Support
Calor is committed to providing quality products. Spare parts for the GV7165 Express Turbo Steam Generator Iron are available for 5 years after the product purchase date.
For further assistance, warranty claims, or to inquire about spare parts, please contact Calor customer support through their official website or the retailer where the product was purchased. Please have your model number (GV7165) and proof of purchase ready.
