Ritto 1220030 Speaker Instruction Manual

1. Product Overview

The Ritto 1220030 speaker is a replacement component designed for use within various Ritto TwinBus intercom systems and outdoor stations. This speaker is engineered to restore audio functionality to compatible units, ensuring clear communication. It features a robust design suitable for its intended applications.

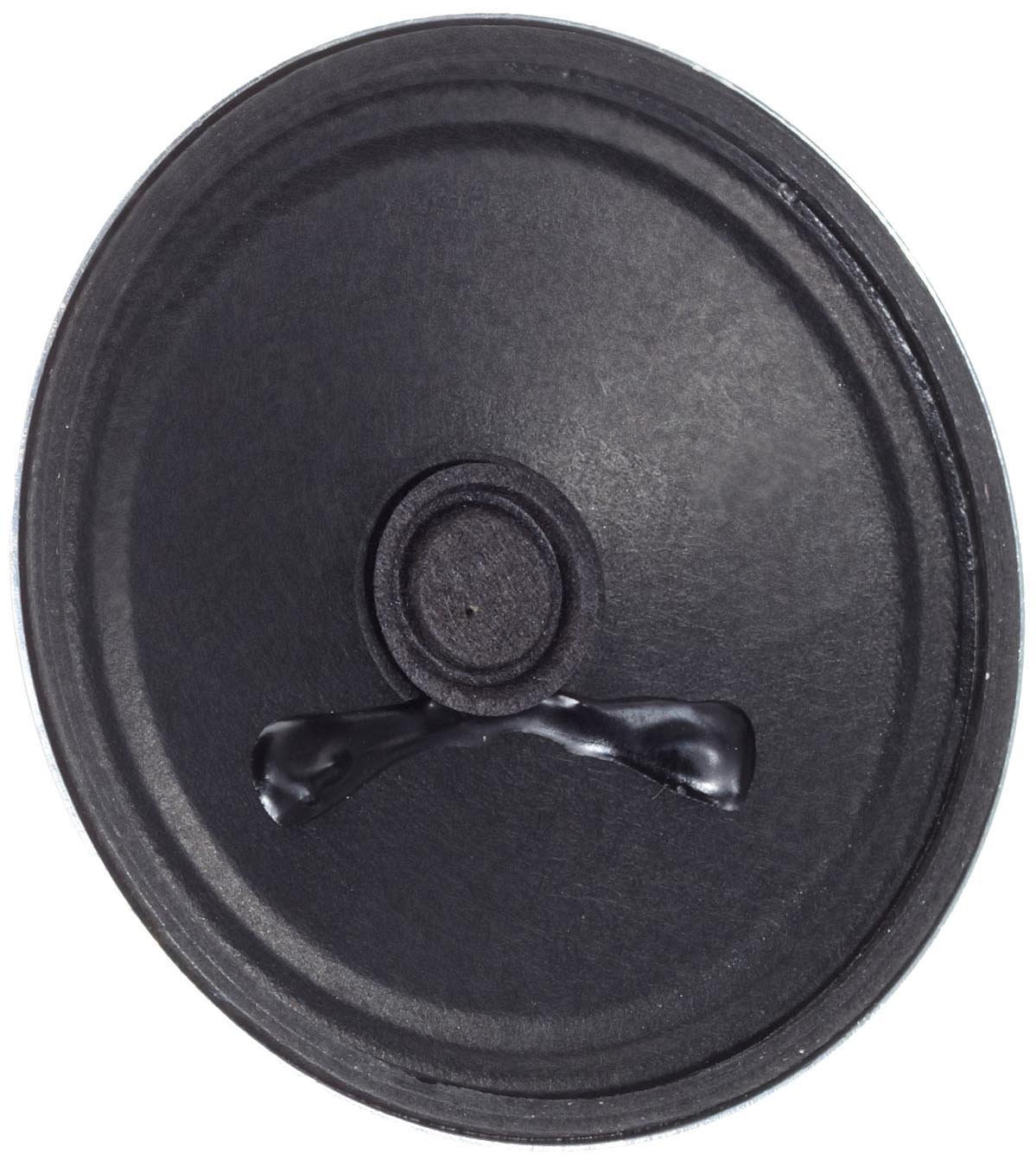

This image displays the front view of the Ritto 1220030 speaker. It features a black speaker cone with a central dust cap and a black rubber or foam surround, all housed within a metallic frame. The speaker is circular in shape.

Key features include:

• Suitable for outdoor station applications.
• Color: Black.
• Mounting Type: Recessed.

2. Compatibility

The Ritto 1220030 speaker is intended as a direct replacement for the speaker component in the following Ritto TwinBus products:

• 1413270 TwinBus Switchboard Office
• 1421170 TwinBus Concierge White Main Office
• 1421670 TwinBus Concierge White Video Main Office
• 1600070 Text White
• 1613071 Text Automatic White
• 1613260 Text Automatic Brown
• 1613270 Text Automatic White
• 1613271 Number Position Automatic White
• 1620071 Speech Position Two-Wheel White
• 1693070 Separate Telephone Call White
• 1911241 Main Office (Table) Anthracite
• 1911271 Main Office (Table) White
• 1911342 Main Office (Table/Display) Anthracite
• 1911372 Main Office (Table/Display) White
• 1911441 Main Office (Wall) Anthracite
• 1911471 Main Office (Wall) White
• 1911542 Main Office (Wall/Display) Anthracite
• 1911572 Main Office (Wall/Display) White

Ensure your existing unit's model number matches one of the listed compatible products before attempting replacement.

3. Installation

This speaker is designed for recessed mounting within compatible Ritto TwinBus systems. Installation typically involves replacing an existing speaker unit. Due to the nature of intercom and electrical systems, it is highly recommended that installation be performed by a qualified technician to ensure proper function and safety. Incorrect installation may lead to system malfunction or damage.

General steps for replacement (consult your specific system's manual for detailed instructions):

1. Power Disconnection: Always disconnect power to the intercom system before beginning any installation or replacement work.
2. Access: Carefully open the housing of the compatible intercom unit or outdoor station to access the existing speaker.
3. Removal: Disconnect the wiring from the old speaker and remove it from its mounting. Note the polarity of the wires if applicable.
4. Installation of New Speaker: Connect the wires to the new Ritto 1220030 speaker, ensuring correct polarity. Secure the new speaker in its recessed mounting position.
5. Reassembly & Testing: Close the unit's housing. Reconnect power to the system and test the audio functionality to confirm proper operation.

4. Operation

The Ritto 1220030 speaker functions as an integral audio output component within the compatible Ritto TwinBus intercom system. Once correctly installed, it will automatically provide sound reproduction for incoming calls, announcements, or other audio signals generated by the intercom system. No user configuration is typically required for the speaker itself.

5. Maintenance

The Ritto 1220030 speaker requires minimal maintenance. To ensure optimal performance and longevity:

• Cleaning: If the speaker is exposed to dust or debris, gently wipe the surface with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Environmental Protection: As it is suitable for outdoor stations, ensure the surrounding enclosure remains sealed and protected from direct water exposure or extreme environmental conditions beyond the system's specifications.
• Inspection: Periodically inspect the speaker for any visible damage or loose connections, especially if installed in an outdoor environment.

6. Troubleshooting

If you experience issues with audio output after installing the Ritto 1220030 speaker, consider the following troubleshooting steps:

• No Sound: Verify that all wiring connections are secure and correctly polarized. Ensure the intercom system itself is powered on and functioning correctly.
• Distorted Sound: Check for loose connections or damaged wiring. Ensure the speaker is properly seated in its mounting. If the distortion persists, the issue might lie with the intercom system's amplifier or signal source.
• Low Volume: Confirm that the volume settings on the main intercom unit are adjusted appropriately.

If problems persist after performing these checks, it is advisable to contact a qualified technician or Ritto customer support for further assistance.

7. Specifications

8. Warranty and Support

For information regarding warranty coverage, technical support, or service for your Ritto 1220030 speaker, please refer to the documentation provided with your original Ritto intercom system or contact Ritto customer service directly. Keep your purchase receipt and model information handy when seeking support.

You can typically find contact information on the official Ritto website or within the user manual of the primary intercom unit.
