Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions before operating the mixer.
- Do not immerse the mixer base, cord, or plug in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Avoid contact with moving parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
Product Overview
The Delfino Die Cast Pro Stand Duo Mixer is a robust kitchen appliance designed for various mixing tasks, featuring twin motors and a durable die-cast construction. It includes a 4.1-quart stainless steel bowl and multiple attachments for versatile use.

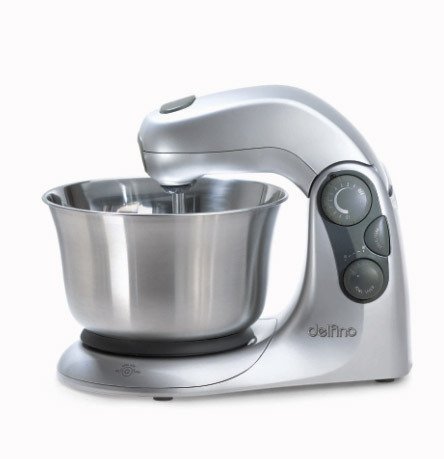

A silver Delfino Die Cast Pro Stand Duo Mixer with a stainless steel bowl and control knobs on the side. The mixer features a sleek, modern design with a sturdy base and an angled mixing arm.
Included Components:
- Delfino Die Cast Pro Stand Duo Mixer Base
- 4.1-Quart Stainless Steel Bowl
- Heavy-Duty Stainless Steel Beater
- Heavy-Duty Stainless Steel Whisks
- Heavy-Duty Stainless Steel Dough Hooks
- Plastic Spatula
Setup
- Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
- Placement: Place the mixer on a clean, dry, and stable surface. Ensure there is adequate space around the mixer for operation.
- Initial Cleaning: Before first use, wash the stainless steel bowl, beater, whisks, dough hooks, and spatula in warm, soapy water. Rinse thoroughly and dry completely. Wipe the mixer base with a damp cloth.
Operating Instructions
1. Attaching the Bowl
- Ensure the mixer is unplugged.
- Place the 4.1-quart stainless steel bowl onto the base, aligning the grooves.
- Twist the bowl clockwise until it locks securely into place.
2. Attaching Accessories (Beater, Whisks, Dough Hooks)
- Ensure the mixer is unplugged and the mixing head is in the raised position (if applicable, refer to specific model mechanism for raising/lowering).
- Insert the desired attachment (beater, whisks, or dough hooks) into the attachment port on the mixing head.
- Twist or push the attachment until it clicks securely into place.
3. Adding Ingredients
Add your ingredients to the stainless steel bowl. Do not overfill the bowl beyond its maximum capacity.
4. Selecting Speed and Operation
- Plug the mixer into a standard electrical outlet.
- Use the control knob to select the desired speed. The mixer offers 10 beater mixing speeds and 2 bowl speeds for precise control over various recipes.
- Start at a lower speed and gradually increase as needed to prevent splashing and ensure thorough mixing.
- The powerful 480-watt motor is suitable for kneading up to 2 pounds (900 grams) of dough, whipping cream, and mixing batters.
- To stop the mixer, turn the speed control knob to the 'OFF' position.
5. Removing Bowl and Accessories
- Unplug the mixer from the power outlet.
- Remove the attachment by twisting or pulling it out of the port.
- Twist the bowl counter-clockwise to unlock and remove it from the base.
Maintenance and Cleaning
Proper cleaning and maintenance will ensure the longevity and optimal performance of your Delfino Stand Duo Mixer.
- Always unplug the mixer before cleaning.
- Mixer Base: Wipe the exterior of the mixer base with a soft, damp cloth. Do not use abrasive cleaners or immerse the base in water.
- Stainless Steel Bowl and Attachments: Wash the 4.1-quart stainless steel bowl, beater, whisks, and dough hooks in warm, soapy water. Rinse thoroughly and dry immediately to prevent water spots. Note: These parts are not dishwasher safe.
- Spatula: The plastic spatula can be washed in warm, soapy water.
- Storage: Store the mixer and its accessories in a clean, dry place when not in use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not turn on. | Not plugged in; power outlet issue; mixer head not fully lowered. | Ensure the mixer is securely plugged into a working outlet. Check circuit breaker. Ensure the mixing head is properly locked into the operating position. |
| Attachments not mixing properly. | Attachment not securely installed; wrong attachment for task; ingredients too thick. | Ensure the attachment is fully inserted and locked. Use the appropriate attachment for the consistency of ingredients. Adjust speed or add liquid if mixture is too thick. |
| Mixer makes unusual noise or vibrates excessively. | Overloaded; unstable surface; damaged part. | Reduce the amount of ingredients. Ensure the mixer is on a flat, stable surface. If noise persists, discontinue use and contact customer support. |
Specifications
| Brand | Delfino |
| Model Name | Die Cast Pro |
| Model Number | DLKM382 |
| Power | 480 Watt |
| Bowl Capacity | 4.1 Quart |
| Controls Type | Knob Control |
| Special Feature | Removable Bowl |
| Item Weight | 6 kg 990 g |
| Item Dimensions (LxWxH) | 56.6 x 17.8 x 37.1 Centimeters |
| Manufacturer | Toastess International |
| UPC | 061283301918 |
| Dishwasher Safe | No |
Warranty Information
This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase or contact Delfino customer support for detailed information regarding warranty terms and conditions.
Customer Support
For technical assistance, parts, or service, please contact Delfino customer support. Contact information can typically be found on the manufacturer's website or in the product packaging.
