1. Introduction
Thank you for choosing the Memphis Street Edge 16-SE4.50 4-Channel Class AB Amplifier. This manual provides essential information for the proper installation, operation, and maintenance of your amplifier. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety.
The 16-SE4.50 is designed to deliver high-quality audio amplification for your vehicle's sound system, featuring a 4-channel Class AB design for balanced power and sound fidelity.

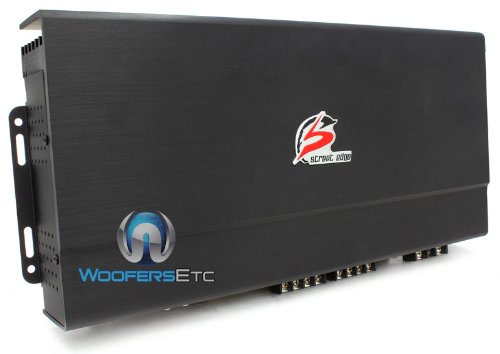

Figure 1: Front view of the Memphis Street Edge 16-SE4.50 amplifier. This image shows the overall design and layout of the amplifier unit.
2. Important Safety Instructions
Always observe the following safety precautions to prevent injury or damage to the amplifier and vehicle:
- Disconnect the vehicle's battery negative terminal before starting any installation.
- Ensure all wiring is properly routed and secured to prevent pinching or damage.
- Use appropriate gauge wiring for power and ground connections as specified in this manual.
- Do not mount the amplifier in locations exposed to direct sunlight, excessive heat, moisture, or dust.
- Ensure adequate ventilation around the amplifier to prevent overheating.
- If you are unsure about any part of the installation process, consult a professional car audio installer.
- Do not attempt to repair the amplifier yourself. Refer all servicing to qualified personnel.
3. Setup and Installation
3.1 Unpacking
Carefully remove the amplifier from its packaging. Inspect the unit for any signs of damage. If damage is present, contact your dealer immediately.
Figure 2: Product packaging for the Memphis Street Edge 16-SE4.50 amplifier. This image shows the retail box the amplifier comes in.
Figure 3: Owner's Manual included with the Memphis Street Edge amplifier. This image displays the cover of the instruction booklet.
3.2 Mounting Location
Choose a mounting location that provides adequate ventilation and protection from moisture and direct heat. Common locations include under seats, in the trunk, or behind panels. Ensure the mounting surface is solid and secure.
3.3 Wiring Connections
Refer to the diagram below for proper wiring connections. All connections must be secure and insulated to prevent short circuits.
Figure 4: Close-up view of the input and output terminals on the Memphis Street Edge 16-SE4.50 amplifier. This image details the RCA inputs, gain controls, filter switches, and speaker terminals.
Figure 5: Detailed view of the power, ground, remote, and speaker output terminals on the Memphis Street Edge 16-SE4.50 amplifier. This image highlights the fuse locations and terminal blocks.
Power Connections:
- B+ (12V Power): Connect directly to the positive terminal of the vehicle's battery using an appropriate gauge power cable (e.g., 8 AWG for typical installations). An inline fuse holder (not supplied) should be installed within 18 inches of the battery.
- GND (Ground): Connect to a clean, unpainted metal surface of the vehicle chassis. Ensure a good electrical connection. Use the same gauge wire as the power cable.
- REM (Remote Turn-On): Connect to the remote output of your head unit. This wire turns the amplifier on and off with the head unit.
Audio Input Connections:
- RCA Inputs (Low Level): Connect to the RCA pre-outs of your head unit using high-quality RCA cables.
- High Level Input: If your head unit does not have RCA outputs, use the high-level input. Connect the speaker wires from your head unit directly to the high-level input terminals.
Speaker Output Connections:
- Connect your speakers to the corresponding speaker output terminals (CH1, CH2, CH3, CH4). Ensure correct polarity (+ to + and - to -).
- The amplifier supports both stereo and bridged configurations. Refer to the specific wiring diagrams for your desired setup.
4. Operation and Adjustments
Once the amplifier is installed, you can adjust its settings for optimal sound performance.
4.1 Gain Control
The gain control (labeled "GAIN") matches the amplifier's input sensitivity to the output of your head unit. Start with the gain set to minimum. Play a familiar track at about 75% of your head unit's maximum volume. Slowly increase the amplifier's gain until you hear distortion, then back off slightly. This ensures maximum clean output.
4.2 Crossover Settings
The 16-SE4.50 features built-in crossovers to direct specific frequency ranges to your speakers.
- FULL: Full range audio is sent to the speakers. Use for coaxial speakers or if an external crossover is used.
- HPF (High Pass Filter): Allows frequencies above the set point to pass. Use for component speakers or full-range speakers to prevent low bass from distorting them. Adjust the frequency knob (e.g., 80Hz-2.5kHz).
- LPF (Low Pass Filter): Allows frequencies below the set point to pass. Use for subwoofers. Adjust the frequency knob (e.g., 50Hz-250Hz).
4.3 Bass Boost
The bass boost control (labeled "BASS BOOST") allows you to increase the output at a specific low frequency. Use sparingly, as excessive bass boost can lead to distortion and speaker damage. Start at 0dB and increase gradually if desired.
5. Maintenance
The Memphis Street Edge 16-SE4.50 amplifier requires minimal maintenance to ensure long-term performance.
- Cleaning: Periodically wipe the amplifier's exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Connections: Occasionally check all wiring connections for tightness and corrosion. Loose connections can cause performance issues or damage.
- Ventilation: Ensure that the amplifier's cooling fins are free from dust and debris to maintain proper heat dissipation.
- Fuse Replacement: If a fuse blows, replace it only with a fuse of the exact same type and rating (e.g., 25A). Using an incorrect fuse can damage the amplifier or cause a fire.
6. Troubleshooting
If you experience problems with your amplifier, consult the following troubleshooting guide before contacting support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No Power / Amplifier does not turn on |
|
|
| No Sound Output |
|
|
| Distorted Sound |
|
|
| Amplifier Overheats |
|
|
7. Specifications
The following are general specifications for the Memphis Street Edge 16-SE4.50 amplifier. Specific performance metrics may vary.
- Model: 16SE450
- Channels: 4-Channel
- Amplifier Class: Class AB
- Mounting Type: Surface Mount
- UPC: 543254089990
- Manufacturer: Memphis
- First Available: February 1, 2014
- ASIN: B004H616QA
Note: Detailed power output specifications (RMS/Peak) are typically found in the full owner's manual or product packaging.
8. Warranty and Support
Memphis Audio products are designed and manufactured to the highest quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Memphis Audio website. Keep your purchase receipt as proof of purchase for warranty claims.
For technical support or service inquiries, please contact your authorized Memphis Audio dealer or the Memphis Audio customer service department.
Contact Information: Please refer to the official Memphis Audio website or your product documentation for the most current contact details.
