1. Introduction
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of the GE WB30T10129 Radiant Element for Stove. This component is a genuine GE factory part designed for specific GE stove models to ensure proper heating functionality. Please read this manual thoroughly before attempting any installation or service.

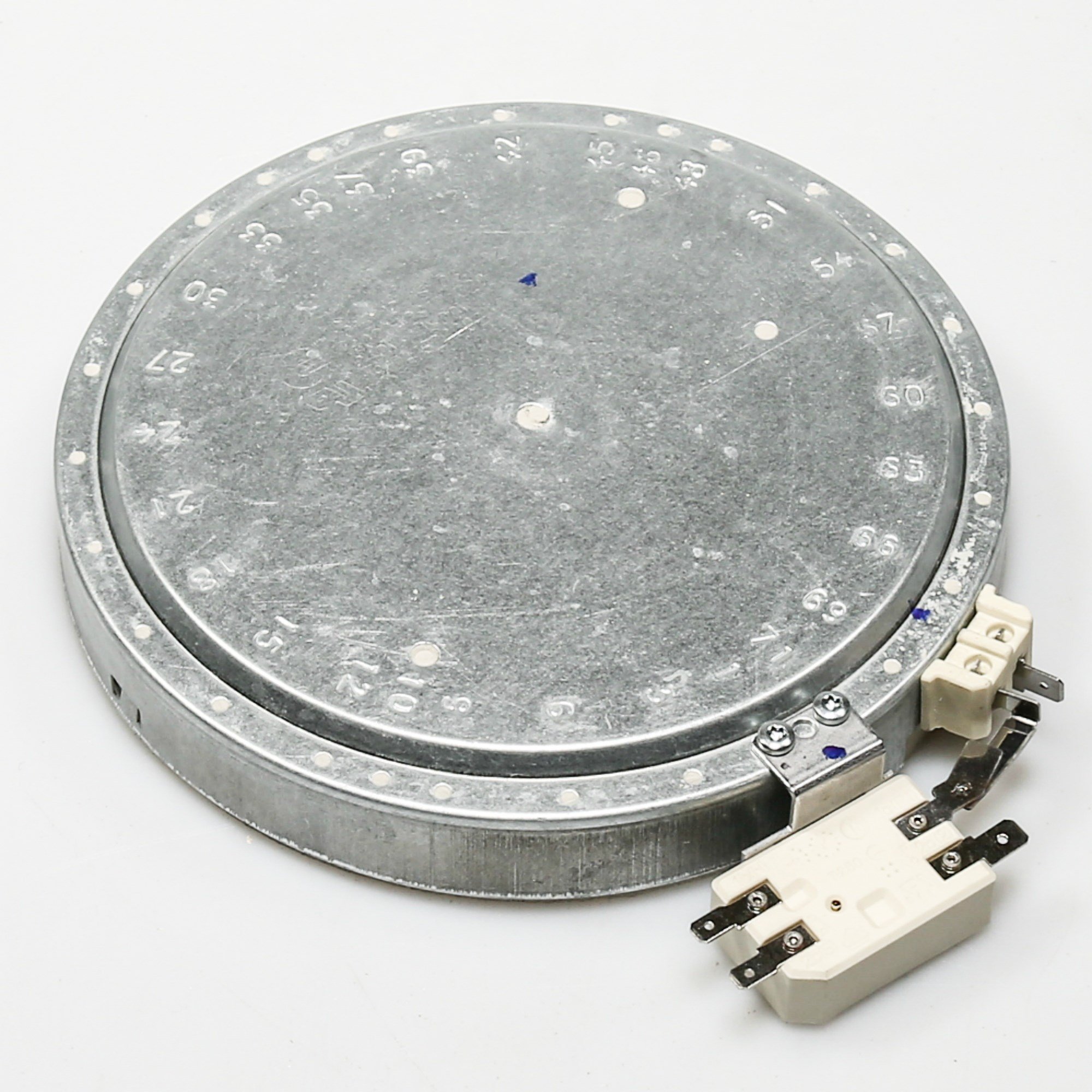

Image 1.1: The GE WB30T10129 Radiant Element. This image displays the circular heating element with its electrical terminals.
2. Safety Information
WARNING: To reduce the risk of electric shock, fire, or injury to persons, observe the following safety precautions:
- Always disconnect power to the stove or range by unplugging the appliance or turning off the circuit breaker before attempting any installation, maintenance, or repair. Failure to do so can result in serious injury or death.
- Wear appropriate personal protective equipment, such as gloves and safety glasses, during installation.
- Ensure all electrical connections are secure and properly insulated after installation.
- This part should only be installed by qualified individuals with experience in appliance repair. If you are unsure, consult a professional technician.
- Keep children and pets away from the work area during installation.
- Do not operate the stove if the radiant element is damaged or improperly installed.
3. Installation Instructions
This section outlines the general steps for replacing a radiant element. Specific procedures may vary slightly depending on your stove model. It is highly recommended to consult your stove's service manual or search for model-specific instructional videos online (e.g., on platforms like YouTube) for visual guidance.
- Disconnect Power: Before beginning, ensure the stove is completely disconnected from its power source. Unplug the appliance or turn off the corresponding circuit breaker in your home's electrical panel.
- Access the Range Top: Locate and remove the screws securing the front edge of the range top. Carefully lift the range top to gain access to the radiant element compartment. You may need to prop it up or have another person hold it securely.
- Identify and Document Wiring: Before disconnecting any wires, carefully note the position and connection of each wire to the old radiant element's terminals. It is advisable to take a photograph for reference. The new element may have slightly different terminal placements, and an instruction sheet for wire arrangement is typically included with the new part.
- Remove Old Element: Remove the screws that hold the old radiant element to the underside of the range top. Pry off any small clips that secure the element in place. Note the numeric locations around the perimeter where these clips were installed.
- Disconnect Wires: Carefully disconnect the wires from the terminals of the old element. Ensure the wire terminals are not loose; if they are, gently tighten them before connecting to the new element.
- Install New Element:
- Connect the wires to the terminals of the new GE WB30T10129 Radiant Element according to the documentation you made and any instructions provided with the new part. It is often easier to connect the wires before securing the element to the range top.
- Position the new element in the compartment. Reinstall the clips at their original numeric locations around the perimeter.
- Secure the element by reinserting the screws. Note that the element's perimeter material is designed to accept screws directly; apply gentle pressure and turn to screw them in.
- Reassemble Range Top: Carefully lower the range top back into its original position. Reinsert and tighten the screws that secure the front edge of the range top.
- Restore Power: Once installation is complete and all connections are secure, restore power to the stove by plugging it back in or turning on the circuit breaker.
- Test Functionality: Test the radiant element to ensure it heats up correctly.
4. Operation
The GE WB30T10129 Radiant Element operates as an integral part of your stove's cooking surface. Its function is controlled directly by the stove's burner control knobs. To operate, simply turn the corresponding control knob to the desired heat setting. The element will heat up, providing radiant heat to cookware placed on the stove surface.
- Ensure cookware is properly seated on the stove surface for efficient heat transfer.
- Avoid placing empty cookware on a high-heat element for extended periods.
- Always turn off the element using the control knob when cooking is complete.
5. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your radiant element. Always ensure the stove is cool and disconnected from power before performing any cleaning or inspection.
- Cleaning: For spills or residue on the stove surface around the element, clean according to your stove's manufacturer instructions. Avoid harsh abrasives or chemicals that could damage the surface or the element itself.
- Inspection: Periodically inspect the radiant element for any visible signs of damage, such as cracks, discoloration, or loose connections. If any damage is observed, discontinue use and consult a qualified technician.
- Terminal Connections: During any stove maintenance that involves accessing the element, briefly check that the electrical terminals remain tight and secure. Loose connections can lead to inefficient heating or electrical hazards.
6. Troubleshooting
If you experience issues with your radiant element, refer to the following common troubleshooting steps. Always ensure power is disconnected before inspecting any internal components.
| Problem | Possible Cause | Solution |
|---|---|---|
| Element does not heat up. | No power to stove, faulty control switch, loose wiring connection, or element failure. |
|
| Element heats unevenly. | Internal damage to the element or faulty control switch. |
|
| Element sparks or smokes. | Loose electrical connection, foreign material on element, or element failure. |
|
If troubleshooting steps do not resolve the issue, contact GE customer support or a qualified appliance technician.
7. Specifications
- Model Number: WB30T10129
- Part Number: WB30T10129
- Type: Radiant Element
- Brand: GE
- Item Weight: 1.37 pounds
- Package Dimensions: 20.71 x 14.02 x 3.03 inches
- Batteries Required: No
- Date First Available: January 6, 2011
8. Warranty Information
The GE WB30T10129 Radiant Element comes with a 1-year manufacturer warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact GE customer service.
9. Customer Support
For further assistance, technical support, or to inquire about warranty service, please contact GE Appliances customer service. You can typically find contact information on the official GE Appliances website or within your stove's original user manual.
Online Resources: Visit the official GE Appliances website for product information, FAQs, and service scheduling.
