1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the YORK 031-00808-000 Surge Suppressor. This device is an RC (Resistor-Capacitor) network designed to protect electrical circuits from voltage surges and transient spikes, ensuring the longevity and reliable operation of connected equipment.
2. Safety Information
WARNING: Electrical shock hazard. Installation and maintenance of this device should only be performed by qualified personnel. Always disconnect power to the circuit before attempting any installation, inspection, or servicing. Ensure proper grounding practices are followed according to local electrical codes.
- Do not operate the device if it appears physically damaged.
- Ensure the operating environment is dry and free from excessive moisture or corrosive substances.
- Verify that the suppressor's specifications match the requirements of the circuit it is intended to protect.
3. Product Overview

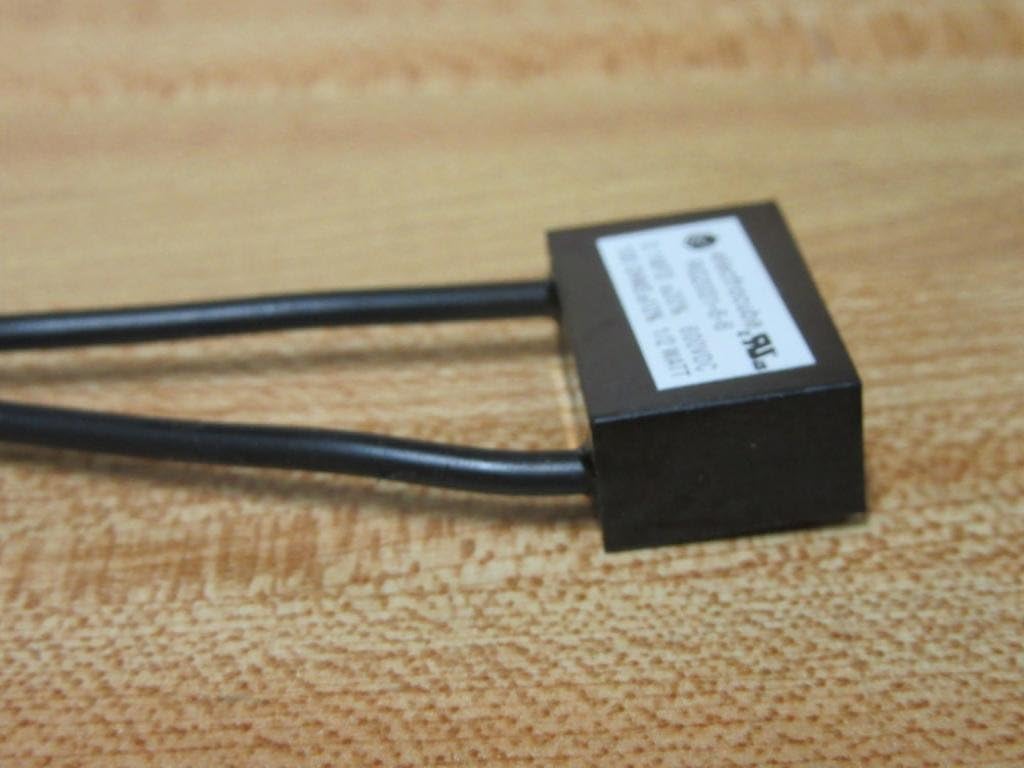

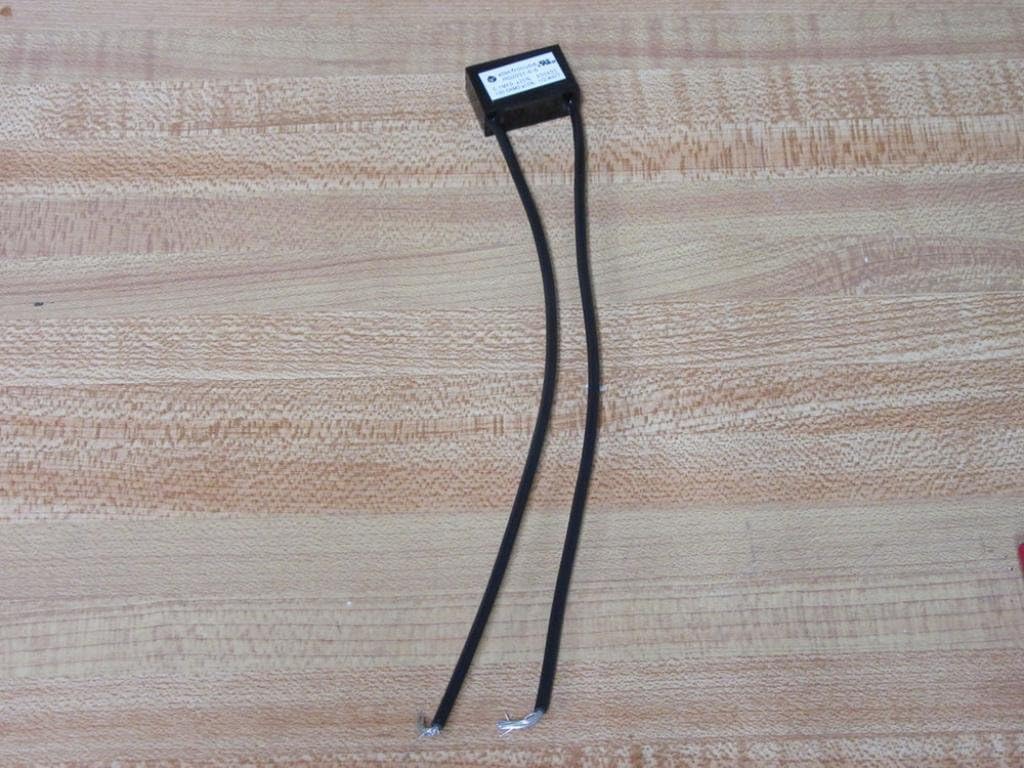

The YORK 031-00808-000 is a compact surge suppressor featuring a 0.1 MFD capacitor and a 100 Ohm resistor, designed for 600 VDC applications. It includes two insulated wires for easy integration into existing electrical systems.
4. Specifications
| Attribute | Value |
|---|---|
| Capacitance (MFD) | 0.1 ± 20% |
| Resistance (Ohms) | 100 ± 10% |
| Voltage Rating | 600 VDC |
| Power Rating | 1/2 Watt |
| Wire Length | 6 3/4 inches |
| Number of Wires | 2 |
| Manufacturer | York |
| Part Number | 031-00808-000 |
| Item Weight | 0.48 ounces |
| Product Dimensions | 2 x 2 x 2 inches |
5. Installation (Setup)
Follow these steps for proper installation of the surge suppressor:
- Disconnect Power: Before beginning any installation, ensure that all power to the circuit where the suppressor will be installed is completely disconnected at the main breaker or power source.
- Identify Connection Points: Determine the specific points in the electrical circuit where surge protection is required. The suppressor is typically connected in parallel across the load or component to be protected.
- Connect Wires: Connect one wire of the surge suppressor to one side of the circuit (e.g., positive or line) and the other wire to the opposite side (e.g., negative or neutral/ground). Ensure connections are secure, mechanically sound, and properly insulated to prevent short circuits.
- Secure Device: Position the suppressor in a location where it is protected from physical damage, excessive heat, and moisture. Ensure it does not interfere with other components.
- Verify Connections: Double-check all wiring to ensure correct polarity and secure connections.
- Restore Power: Once installation is complete and verified, carefully restore power to the circuit.
- Test Operation: Monitor the protected equipment for normal operation.
6. Operation
The YORK 031-00808-000 Surge Suppressor operates automatically upon correct installation. As an RC network, it continuously works to absorb and dissipate transient voltage spikes that occur in the electrical circuit. This passive operation requires no user intervention once installed, providing ongoing protection to sensitive electronic components from damaging voltage fluctuations.
7. Maintenance
The YORK 031-00808-000 Surge Suppressor is designed for maintenance-free operation under normal conditions. However, periodic inspection is recommended to ensure continued performance and safety.
- Visual Inspection: Periodically inspect the device and its connections for any signs of physical damage, such as cracks, discoloration, swelling, or burnt areas. Also check for corrosion on the wire terminals.
- Connection Integrity: Ensure that all electrical connections remain tight and secure. Loose connections can lead to overheating or intermittent protection.
- Environmental Conditions: Verify that the operating environment remains within appropriate temperature and humidity ranges, and that the device is not exposed to excessive vibration or corrosive chemicals.
- Replacement: If any damage or signs of degradation are observed, or if the protected equipment experiences repeated surge-related issues, replace the surge suppressor immediately with an identical or equivalent model.
8. Troubleshooting
If equipment connected to the surge suppressor experiences unexpected failures or continues to be affected by power surges, consider the following troubleshooting steps:
- Verify Installation: Double-check that the suppressor is correctly wired across the protected circuit, ensuring proper polarity and secure connections.
- Inspect for Damage: Carefully examine the surge suppressor for any visible signs of damage, such as discoloration, cracks, or burnt areas. A damaged suppressor indicates it may have absorbed a significant surge and needs replacement.
- Circuit Load Compatibility: Confirm that the suppressor's voltage and power ratings are appropriate for the circuit and equipment it is protecting. An undersized suppressor may not provide adequate protection.
- External Factors: Consider if the surges are originating from external sources (e.g., utility grid issues, lightning strikes) that might overwhelm the suppressor's capacity. Additional layers of surge protection at the main service panel might be necessary.
- Professional Consultation: If problems persist after performing these checks, consult a qualified electrician or service technician for further diagnosis and resolution.
9. Warranty and Support
For specific warranty information, terms, and conditions related to the YORK 031-00808-000 Surge Suppressor, please refer to the original purchase documentation provided with your product. For technical support, service inquiries, or to obtain replacement parts, please contact your authorized YORK product supplier or distributor. It is recommended to keep your purchase receipt and product details readily available for any warranty claims or support requests.
