Introduction
This manual provides essential information for the safe and effective use of your HON Mobile Pedestal. Please read these instructions thoroughly before operating the unit and retain them for future reference. This mobile pedestal is designed for organized storage of documents and office supplies, featuring multiple drawers and a locking mechanism for security.

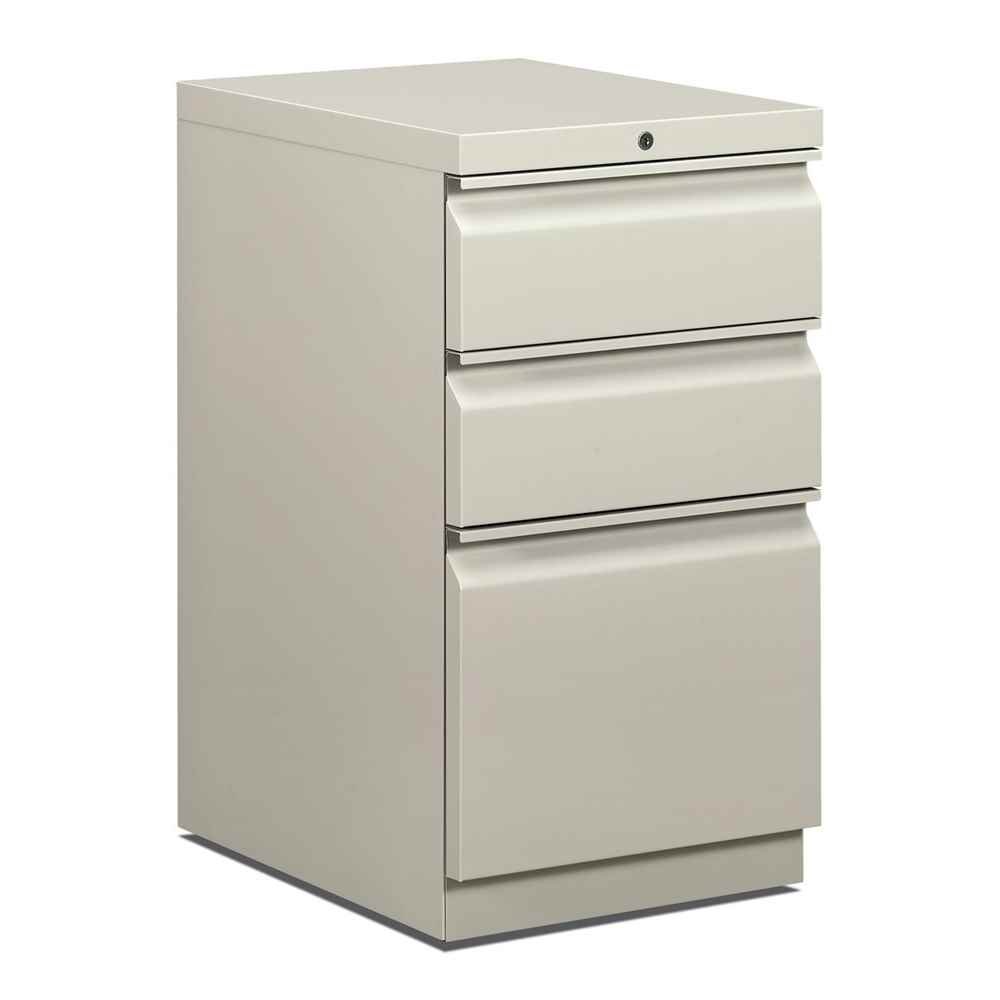

This image displays the HON Mobile Pedestal, a light gray, three-drawer filing cabinet. It features two smaller box drawers at the top and one larger file drawer at the bottom, suitable for legal or letter-sized documents. A security lock is visible on the top right of the unit, designed to secure all drawers. The pedestal is equipped with casters for mobility, though they are not visible in this specific view. The overall design is functional and suitable for office environments.
Safety Information
Potential hazards from the security lock require caution during use. Ensure proper floor mounting to prevent tipping or instability.
- Always ensure the pedestal is placed on a level and stable surface.
- Do not overload drawers, as this can affect stability and drawer operation.
- When moving the pedestal, ensure all drawers are closed and locked to prevent accidental opening and potential tipping.
- Keep fingers clear of drawer slides when opening or closing drawers.
Setup
The HON Mobile Pedestal is shipped fully assembled and does not require additional assembly. It is designed for pedestal installation and features casters for mobility.
- Unpacking: Carefully remove the pedestal from its packaging. Inspect for any shipping damage.
- Placement: Position the mobile pedestal in your desired location. Ensure the floor surface is level and clear of obstructions to allow for smooth movement of the casters.
- Stability Check: Gently push and pull the unit to confirm it is stable and does not wobble. If the unit feels unstable, reposition it on a more even surface.
Operating Instructions
Drawer Operation
The pedestal features two box drawers and one file drawer, equipped with ball-bearing suspensions for smooth operation.
- Opening Drawers: Gently pull the drawer handle to open. The ball-bearing suspension allows for full extension.
- Closing Drawers: Push the drawer firmly until it is fully closed and latched.
- File Drawer: The bottom drawer is designed to accommodate legal and letter-sized documents. Ensure files are properly aligned to prevent jamming.
Locking Mechanism
The pedestal is equipped with a security lock to secure all drawers simultaneously.
- To Lock: Ensure all drawers are fully closed. Insert the key into the lock cylinder located on the top right of the unit. Turn the key clockwise to engage the locking mechanism. Remove the key.
- To Unlock: Insert the key into the lock cylinder. Turn the key counter-clockwise to disengage the locking mechanism. The drawers can now be opened.
- Key Management: Keep spare keys in a secure location separate from the pedestal.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your mobile pedestal.
- Cleaning: Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the painted finish.
- Drawer Slides: Periodically check drawer slides for smooth operation. If a drawer becomes stiff, a small amount of silicone-based lubricant can be applied to the slides.
- Casters: Keep casters free of debris (e.g., hair, dust) to ensure smooth mobility. Clean them as needed.
- Lock: If the lock mechanism becomes stiff, a small amount of graphite lubricant can be applied to the keyhole. Do not force the key.
Troubleshooting
Refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawer will not open or close smoothly | Overloaded drawer, debris in slides, bent slide. | Reduce drawer contents. Clean drawer slides. Inspect slides for damage; contact support if bent. |
| Lock mechanism is stiff or not working | Debris in lock, worn key, drawers not fully closed. | Ensure all drawers are fully closed. Apply graphite lubricant to keyhole. Try a spare key. |
| Pedestal wobbles or is unstable | Uneven floor surface, heavy items in top drawers. | Move to a level surface. Distribute weight evenly, placing heavier items in lower drawers. |
| Casters are not rolling freely | Debris caught in casters. | Turn the pedestal on its side (with drawers locked) and remove any debris from the caster wheels. |
Specifications
| Feature | Detail |
|---|---|
| Brand | HON |
| Model | B/B/F, R Pull |
| Color | Grey |
| Product Dimensions | 22.25"D x 17"W x 30.75"H |
| Item Weight | 74 Pounds |
| Material | Alloy Steel |
| Finish Type | Painted |
| Number of Drawers | 3 (2 Box, 1 File) |
| File Compatibility | Legal, Letter |
| Special Feature | Lockable |
| Mounting Type | Floor Mount |
| Base Type | Casters |
| Assembly Required | No |
| UPC | 631530590930 |
Warranty and Support
For warranty information or technical support, please refer to the official HON website or contact their customer service department. Keep your purchase receipt and product model information handy when contacting support.
Manufacturer: HON COMPANY
