Zoom AD-14D Power Supply Adapter Instruction Manual

1. Introduction and Overview

The Zoom AD-14D is a dedicated AC power adapter designed to provide stable and continuous power to compatible Zoom audio and video recording devices. This adapter eliminates the need for battery power during extended use, ensuring uninterrupted operation for your creative projects.

Compatible Zoom Devices:

• ARQ AR-96
• H4n
• H4n Pro
• Q3
• Q3HD
• R16
• R24

2. Safety Information

Please read and understand the following safety precautions before using the Zoom AD-14D Power Supply Adapter to prevent electric shock, short circuit, damage, or other hazards.

• Power Source: Use only with the specified voltage and frequency as indicated on the adapter. Connecting to an incompatible power source may cause damage.
• Environment: Do not expose the adapter to water, moisture, rain, or extreme temperatures. Avoid using in dusty or humid environments.
• Handling: Do not attempt to disassemble, modify, or repair the adapter. Refer all servicing to qualified personnel.
• Cable Care: Avoid placing heavy objects on the power cord or subjecting it to excessive bending or pulling. Ensure the cord is not pinched or damaged.
• Ventilation: Ensure adequate ventilation around the adapter during use. Do not cover it with cloth or other materials.
• Disconnection: Always unplug the adapter from the wall outlet when not in use for extended periods or during electrical storms.

3. Setup

Follow these steps to correctly connect your Zoom AD-14D Power Supply Adapter to your compatible Zoom device.

1. Identify DC Input: Locate the DC input jack on your Zoom device. This is typically a circular port labeled 'DC IN' or with a power symbol.
2. Connect Adapter to Device: Carefully insert the small DC plug of the AD-14D adapter into the DC input jack of your Zoom device. Ensure a firm connection.
3. Connect to Power Outlet: Plug the AC power plug of the adapter into a standard, grounded wall outlet.

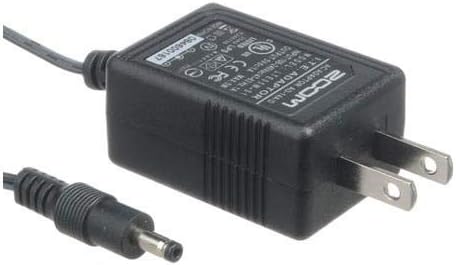

Image 1: The Zoom AD-14D Power Supply Adapter, showing the main unit and coiled DC output cable.

Image 2: A closer view of the Zoom AD-14D Power Supply Adapter, highlighting the DC output plug for device connection.

4. Operating Instructions

Once the AD-14D Power Supply Adapter is correctly connected to your Zoom device and a power outlet, your device will automatically draw power from the adapter.

• Power On: Turn on your Zoom device as you normally would. It will now operate using AC power provided by the adapter.
• Battery Bypass: When the adapter is connected, most compatible Zoom devices will bypass internal batteries, preserving their charge.
• Extended Use: The adapter allows for extended recording or operation sessions without the need to monitor or replace batteries.
• Disconnection: To disconnect, first power off your Zoom device, then unplug the adapter from the wall outlet, and finally disconnect the DC plug from your device.

5. Maintenance

Proper care will ensure the longevity and reliable performance of your AD-14D Power Supply Adapter.

• Cleaning: Use a soft, dry cloth to clean the adapter. Do not use liquid cleaners or solvents.
• Storage: Store the adapter in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Cable Integrity: Regularly inspect the power cord for any signs of damage, fraying, or exposed wires. If damage is found, discontinue use immediately.
• Avoid Stress: Do not wrap the cable too tightly around the adapter or pull on the cable to disconnect it from the outlet or device. Always grasp the plug.

6. Troubleshooting

If you encounter issues with your AD-14D Power Supply Adapter, try the following troubleshooting steps:

• Device Not Powering On:
  • Ensure the adapter's DC plug is fully inserted into the Zoom device.
  • Verify the AC plug is securely inserted into a working wall outlet. Try a different outlet.
  • Confirm that your Zoom device is compatible with the AD-14D adapter (refer to Section 1).
  • Check the power switch on your Zoom device.
• Adapter Feels Warm: It is normal for the adapter to become warm during operation. If it becomes excessively hot to the touch or emits smoke/unusual odors, immediately unplug it from the wall outlet and discontinue use.
• Intermittent Power: Check all connections for looseness. Ensure the power cord is not damaged.

If problems persist after trying these steps, contact Zoom customer support or your retailer for assistance.

7. Specifications

8. Warranty and Support

For detailed warranty information, technical support, and service inquiries regarding your Zoom AD-14D Power Supply Adapter, please refer to the warranty card included with your original Zoom product or visit the official Zoom Corporation website. Keep your purchase receipt as proof of purchase for warranty claims.
