Baldwin Filters RS5304 Radial Seal Inner Air Element Instruction Manual

1. Product Overview

The Baldwin Filters RS5304 is a heavy-duty radial seal inner air element designed to provide superior air filtration for various engine applications. This filter is crucial for protecting your engine from harmful contaminants, ensuring optimal performance and extending engine life. It meets or exceeds OEM specifications and is manufactured under TS 16949 and ISO 9001 certifications, reflecting Baldwin's commitment to quality.

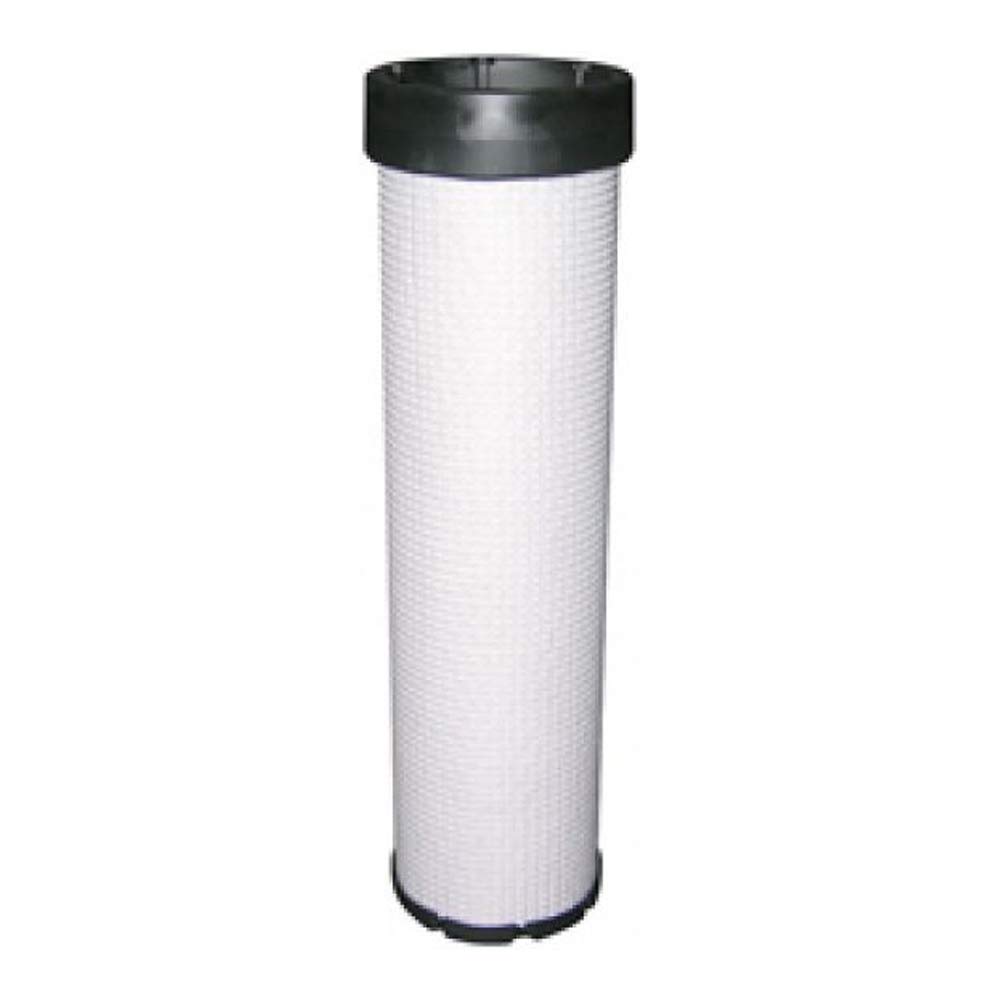

A close-up view of the Baldwin RS5304 Radial Seal Inner Air Element, highlighting its construction and radial seal design.

2. Setup and Installation

Proper installation of the air element is critical for effective filtration and engine protection. Always refer to your vehicle or equipment manufacturer's service manual for specific installation procedures and safety precautions.

1. Preparation: Ensure the engine is turned off and cooled down. Locate the air filter housing.
2. Remove Old Filter: Carefully open the air filter housing. Remove the old air element, noting its orientation. Dispose of the old filter responsibly.
3. Inspect Housing: Clean the inside of the air filter housing, removing any dust, debris, or foreign objects. Inspect the housing for any damage or cracks.
4. Install New Filter: Insert the Baldwin RS5304 Radial Seal Inner Air Element into the housing, ensuring it seats correctly and the radial seal forms a tight, leak-free connection. Do not force the filter.
5. Secure Housing: Close and secure the air filter housing according to the manufacturer's instructions. Ensure all clamps or fasteners are properly engaged.
6. Final Check: Verify that the housing is completely sealed and there are no gaps that could allow unfiltered air to enter the engine.

Note: Incorrect installation can lead to engine damage due to unfiltered air. If unsure, consult a qualified technician.

3. Operation

Once installed, the Baldwin RS5304 Radial Seal Inner Air Element continuously filters incoming air before it reaches the engine's combustion chamber. This process removes dust, dirt, pollen, and other airborne particles that can cause wear and tear on engine components. A clean air filter ensures optimal air-fuel mixture, contributing to efficient engine operation, proper horsepower, and reduced emissions.

The radial seal design provides a secure fit, preventing contaminants from bypassing the filter media. Consistent operation with a high-quality air filter like the RS5304 is vital for maintaining engine health and longevity.

4. Maintenance

Regular maintenance of your air filter is essential for sustained engine performance and protection. The frequency of inspection and replacement depends on operating conditions, such as dust levels and engine usage.

• Inspection: Periodically inspect the air filter element for visible signs of dirt accumulation, damage, or clogging. A dirty filter may appear dark or have debris embedded in its pleats.
• Replacement: Replace the Baldwin RS5304 air element according to your vehicle or equipment manufacturer's recommended service intervals, or sooner if operating in severe conditions (e.g., dusty environments). A general guideline is to replace it every 12,000 to 15,000 miles or annually, but always prioritize OEM recommendations.
• Cleaning: Do not attempt to clean the air filter element by washing or using compressed air, as this can damage the filter media and compromise its effectiveness. Always replace with a new, genuine Baldwin filter.
• Disposal: Dispose of used air filters according to local environmental regulations.

An assortment of red Baldwin Filters, including primary and secondary filters, demonstrating the variety of filter types available.

5. Troubleshooting

If you experience issues related to engine performance, the air filter may be a contributing factor. Consider the following:

• Reduced Engine Power: A clogged air filter restricts airflow to the engine, leading to reduced horsepower and acceleration. Inspect and replace the filter if it appears dirty.
• Increased Fuel Consumption: An engine struggling to draw air through a dirty filter may consume more fuel. Check the air filter as part of your diagnostic process.
• Unusual Engine Noises: While less common, a severely clogged filter can sometimes cause the engine to work harder, potentially leading to unusual noises.
• Visible Dirt in Air Intake: If you notice dirt or debris past the air filter, it indicates an improper seal or a damaged filter. Re-inspect the installation and the filter's integrity.

Always ensure the air filter is correctly installed and free from obstructions. If problems persist after checking the air filter, consult a professional mechanic.

6. Specifications

7. Warranty and Support

For information regarding the warranty of your Baldwin RS5304 Radial Seal Inner Air Element, please refer to the official Baldwin Filters website or contact their customer support directly. Warranty terms and conditions may vary.

For technical assistance, product inquiries, or support, please visit the Baldwin Filters official website or contact their authorized distributors.
