1. Product Overview
The VXB S6007-2RS is a high-quality deep groove radial ball bearing designed for various industrial applications. Constructed from stainless steel, it offers excellent corrosion resistance and durability. This bearing features double rubber seals (2RS) to protect against dust, dirt, and moisture, ensuring a longer service life and consistent performance. It comes pre-lubricated with grease, making it ready for immediate installation in suitable environments.
2. Product Description and Features
The S6007-2RS bearing is engineered for reliability and performance. Key features include:
- Item: S6007-2RS Ball Bearing
- Type: Deep groove radial ball bearing, suitable for high radial and moderate axial loads.
- Material: High-grade Stainless Steel for superior corrosion resistance.
- Cage: Stainless Steel cage for robust internal component retention.
- Closures: Double sealed with rubber seals (RS/RS1/2RS1) on both sides to prevent contamination and retain lubricant.
- Lubrication: Self-lubricated with grease, eliminating the need for initial lubrication.
- Dimensions: Inner Diameter (ID): 35mm, Outer Diameter (OD): 62mm, Width/Height/Thickness: 14mm.

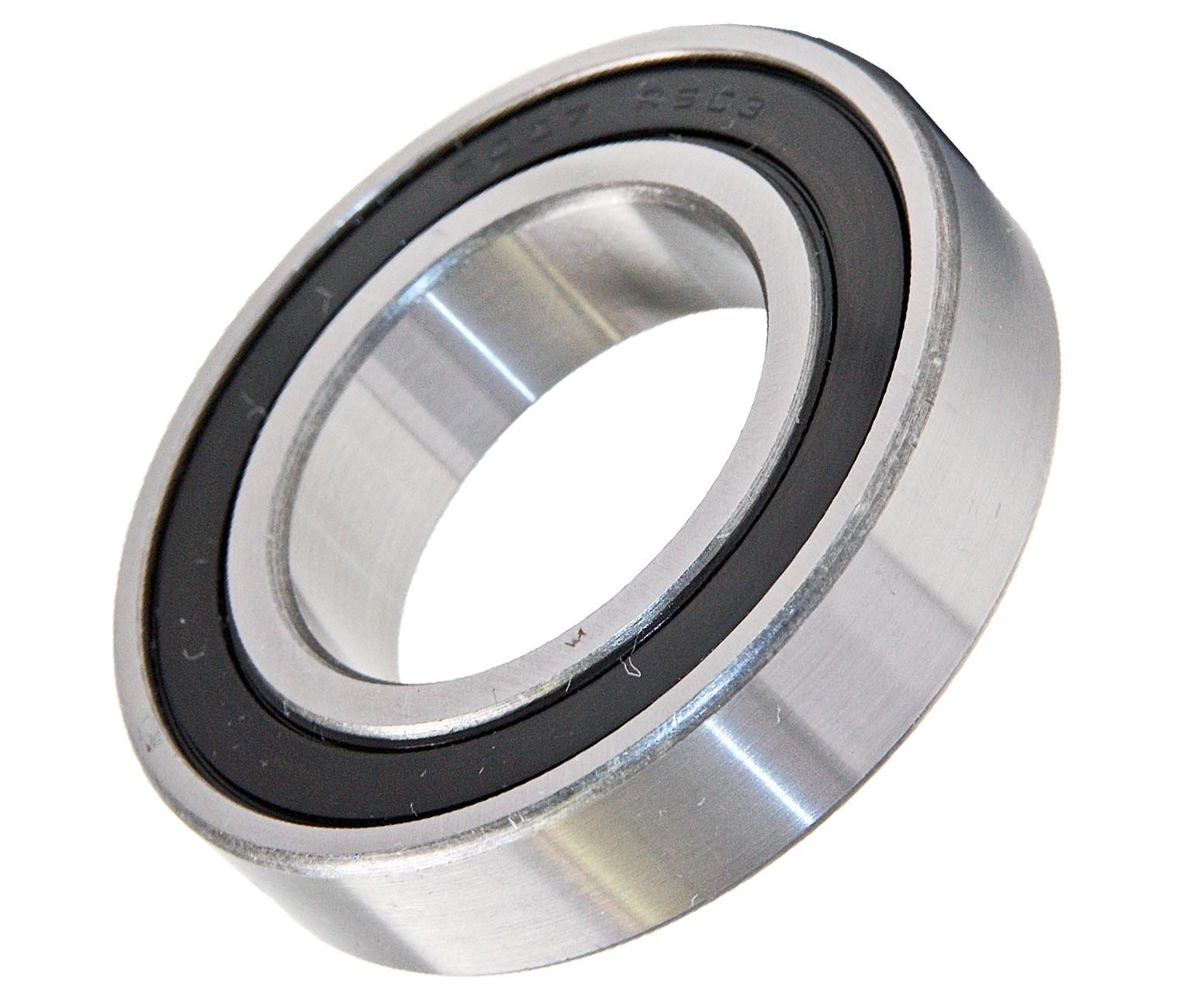

Image: VXB S6007-2RS Stainless Steel Sealed Ball Bearing, showing its sealed design.
3. Installation Guidelines
Proper installation is crucial for the longevity and performance of the S6007-2RS bearing. Follow these general guidelines:
- Preparation: Ensure the shaft and housing are clean, free from burrs, and within specified tolerances. A clean working environment is essential to prevent contamination.
- Mounting Method:
- Press Fit: For interference fits, apply pressure evenly to the ring being fitted (inner ring for shaft, outer ring for housing). Use a bearing press or a suitable sleeve and hammer, ensuring force is applied directly to the fitted ring to avoid damage to the rolling elements or seals.
- Heating: For larger bearings or tight fits, heating the bearing (e.g., with an induction heater or oil bath) can expand the inner ring, allowing it to slide onto the shaft. Do not exceed 120°C (248°F) and ensure even heating.
- Alignment: Ensure the bearing is correctly aligned during installation to prevent premature wear and failure.
- Seals: Avoid direct impact or excessive force on the rubber seals during installation, as this can damage them and compromise the bearing's protection.
- Post-Installation Check: After installation, rotate the shaft or housing by hand to check for smooth operation and any unusual resistance.
Always consult specific equipment manuals for detailed installation procedures relevant to your application.
4. Operation Considerations
The S6007-2RS bearing is designed for reliable operation under specified conditions.
- Load Capacity: This bearing has a dynamic load rating (Cr) of 16,000 N and a static load rating (Cor) of 10,300 N. Ensure that the applied loads in your application do not exceed these limits.
- Speed Limits: The limiting speed for grease lubrication is 6,800 RPM. Operating above this speed can lead to excessive heat generation and premature bearing failure.
- Temperature Range: Stainless steel bearings generally perform well across a wide temperature range. However, the rubber seals and grease have specific temperature limits. Consult the grease manufacturer's specifications if operating in extreme temperatures.
- Vibration and Noise: During normal operation, the bearing should run smoothly with minimal vibration and noise. Any significant increase in these factors may indicate an issue.
5. Maintenance
The S6007-2RS bearing is sealed and pre-lubricated, requiring minimal maintenance. However, periodic inspection is recommended.
- Inspection: Regularly inspect the bearing for signs of wear, damage, or contamination. Check the integrity of the rubber seals.
- Cleaning: If the bearing is exposed to harsh environments, periodically clean the exterior to prevent buildup around the seals. Do not use high-pressure washers directly on the seals.
- Relubrication: As a sealed bearing, the S6007-2RS is designed for a long service life without relubrication. If the application demands relubrication due to extreme conditions or extended service, consult a bearing specialist. For sealed bearings, relubrication ports are typically not present.
- Replacement: Replace the bearing if excessive noise, vibration, or play is detected, or if the seals are compromised.
6. Troubleshooting
Refer to the table below for common issues and potential solutions.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Excessive Noise/Vibration | Improper installation, contamination, insufficient lubrication, bearing damage, misalignment. | Check installation, inspect for contamination, replace if damaged, verify alignment. |
| Overheating | Excessive speed, over-lubrication (unlikely for sealed), misalignment, tight fit. | Reduce speed if exceeding limits, check fit, ensure proper alignment. |
| Premature Failure | Overload, contamination, improper installation, material fatigue. | Verify load conditions, ensure clean environment, correct installation procedures, replace bearing. |
| Seal Damage/Leakage | Improper handling during installation, harsh chemicals, excessive temperature. | Handle with care, avoid chemical exposure, ensure operating temperature is within limits, replace bearing. |
7. Specifications
Detailed technical specifications for the VXB S6007-2RS Stainless Steel Sealed Ball Bearing:
| Attribute | Value |
|---|---|
| Item Number | S6007-2RS |
| Bearing Type | Deep Groove Radial Ball Bearing |
| Material | Stainless Steel |
| Cage Material | Stainless Steel |
| Closures | Double Sealed (Rubber Seals RS/RS1/2RS1) |
| Lubrication | Grease (Self Lubricated) |
| Inner Diameter (ID) | 35 mm |
| Outer Diameter (OD) | 62 mm |
| Width/Thickness | 14 mm |
| Dynamic Load Rating (Cr) | 16,000 N |
| Static Load Rating (Cor) | 10,300 N |
| Limiting Speed (Grease) | 6,800 RPM |
| Item Weight | 5.6 ounces (approx. 158.7 grams) |
| Equivalent Models | 6007-2RS1, 6007-2RZ, S6007RS |
8. Safety Information
Adhere to the following safety precautions when handling and installing bearings:
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling bearings.
- Use correct tools and techniques for installation and removal to prevent injury and bearing damage.
- Avoid applying force directly to the bearing seals or outer ring when pressing onto a shaft, or to the inner ring when pressing into a housing.
- Do not exceed the specified load and speed limits of the bearing.
- Keep bearings and work areas clean to prevent contamination, which can lead to premature failure.
- Dispose of old bearings and lubricants responsibly according to local regulations.
9. Storage
To maintain the quality and extend the shelf life of your VXB S6007-2RS bearings:
- Store bearings in their original packaging in a cool, dry, and vibration-free environment.
- Avoid exposure to direct sunlight, high humidity, extreme temperatures, and corrosive atmospheres.
- Do not store bearings directly on the floor where they might be exposed to moisture or temperature fluctuations.
10. Warranty and Support
For specific warranty information or technical support regarding your VXB S6007-2RS Stainless Steel Sealed Ball Bearing, please refer to the documentation provided with your purchase or contact VXB directly through their official website or customer service channels.
VXB is committed to providing quality products and support.
