1. Introduction
This manual provides essential instructions for the proper installation, operation, and maintenance of the Dial Manufacturing 9440 Angle Needle Valve. Please read this manual thoroughly before installation and use to ensure safe and efficient operation. Retain this manual for future reference.
2. Safety Information
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always wash hands after handling.
- Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation and maintenance.
- Ensure all connections are secure and leak-free to prevent water damage or injury.
- Do not overtighten connections, as this can damage the valve or associated plumbing.
- Turn off the water supply before attempting any installation or maintenance.
- If you are unsure about any part of the installation or operation, consult a qualified plumber.
3. Product Overview
The Dial Manufacturing 9440 is a 1/4 inch MPT (Male Pipe Thread) Angle Needle Valve designed for precise flow control. It is commonly used with sill cocks and pipe adapters and includes a poly tube adapter for versatile connections.

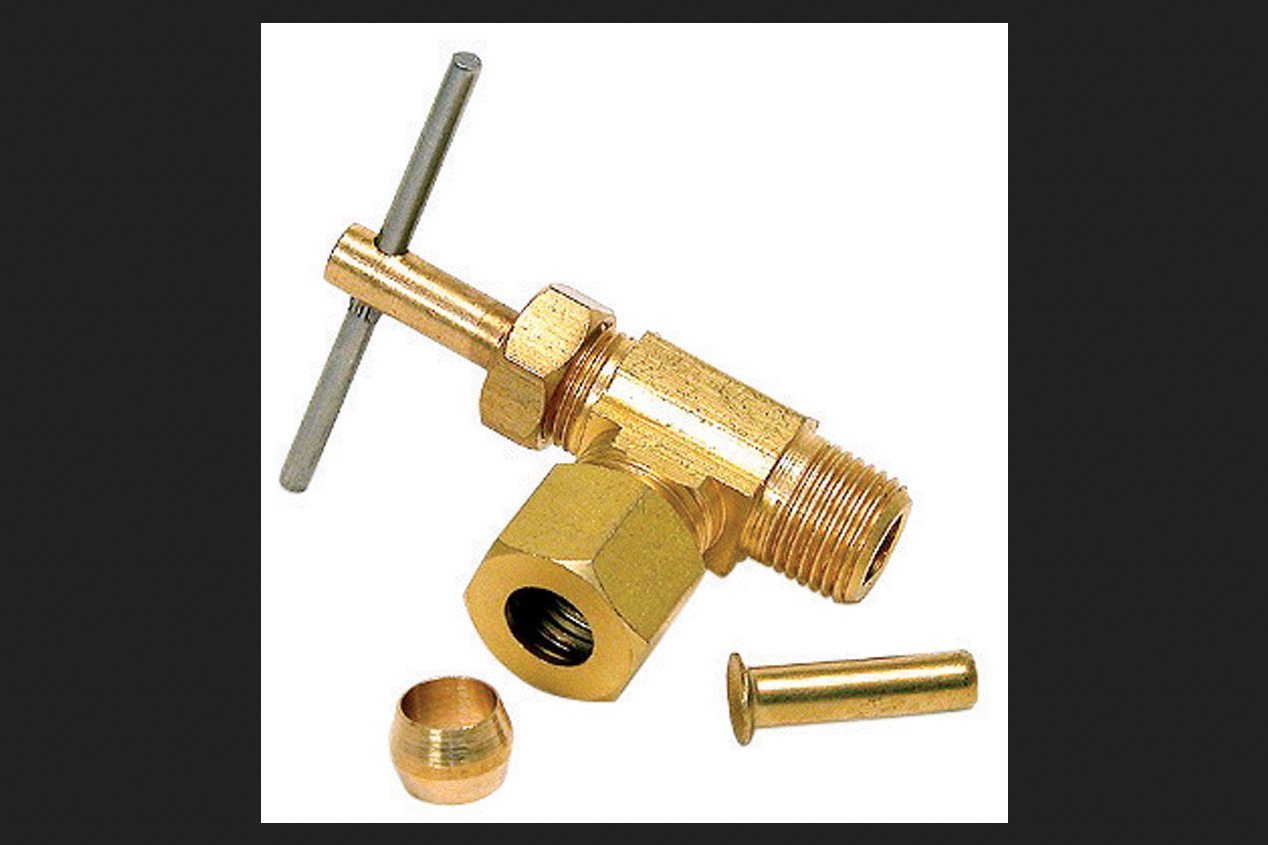

Figure 1: Dial Manufacturing 9440 Angle Needle Valve. This image shows the valve with its angled body and connection points, including the needle for flow adjustment.
Key features include:
- Type: Angle Needle Valve
- Connection Size: 1/4 inch MPT
- Compatibility: Designed to fit sill cocks and pipe adapters
- Included: Poly tube adapter
- Material: Metal construction for durability
4. Setup and Installation
Follow these steps for proper installation of the 9440 Angle Needle Valve:
- Prepare the Connection Point: Ensure the water supply to the sill cock or pipe adapter is turned off. Clean any debris from the threads of the connection point.
- Apply Thread Sealant: Apply appropriate thread sealant (e.g., PTFE tape or pipe dope) to the 1/4 inch MPT threads of the needle valve. Wrap the tape clockwise around the threads, typically 3-4 wraps.
- Attach the Valve: Carefully thread the needle valve onto the sill cock or pipe adapter. Hand-tighten first, then use a wrench to tighten an additional 1/2 to 1 turn past hand-tight. Do not overtighten.
- Connect Poly Tube (if applicable): If using the poly tube adapter, securely attach it to the valve's outlet. Ensure the poly tube is properly seated and secured to prevent leaks.
- Check for Leaks: Slowly turn on the water supply and inspect all connections for leaks. If leaks are detected, turn off the water, tighten the connection slightly, and recheck.
5. Operating Instructions
The 9440 Angle Needle Valve provides precise control over water flow.
- To Open the Valve: Turn the handle counter-clockwise to increase water flow.
- To Close the Valve: Turn the handle clockwise to decrease or shut off water flow.
- Adjusting Flow: The needle design allows for fine adjustments to the flow rate. Turn the handle slowly to achieve the desired flow.
6. Maintenance
Regular maintenance ensures the longevity and proper function of your valve.
- Periodic Inspection: Periodically inspect the valve and its connections for any signs of leaks, corrosion, or damage.
- Cleaning: If mineral deposits or debris accumulate, turn off the water supply, disconnect the valve, and clean it with a mild descaling solution or brush. Rinse thoroughly before reinstallation.
- Lubrication: The internal components typically do not require lubrication. If the handle becomes stiff, ensure no external debris is obstructing its movement.
- Winterization (if applicable): In freezing climates, ensure the valve and connected plumbing are drained or protected from freezing to prevent damage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Leak at connections | Loose connection, insufficient thread sealant, damaged threads. | Turn off water supply. Tighten connection. Reapply thread sealant if necessary. Inspect threads for damage. |
| No water flow or restricted flow | Valve not fully open, debris inside valve, water supply off. | Ensure valve is fully open (turn handle counter-clockwise). Check water supply. Disconnect and inspect valve for obstructions. |
| Handle is stiff or difficult to turn | Mineral buildup, external obstruction, internal component wear. | Clean external area. If problem persists, consider cleaning internal components or replacing the valve if worn. |
8. Specifications
- Model Number: 9440
- Brand: Dial Manufacturing
- Material: Metal
- Connection Type: 1/4 inch MPT (Male Pipe Thread)
- Number of Ports: 2
- Exterior Finish: Silver
- Product Dimensions: 7 x 6 x 1 inches (L x W x H)
- Item Weight: 1.5 pounds
- UPC: 026529944007
9. Warranty Information
For specific warranty details, please refer to the documentation provided with your purchase or contact Dial Manufacturing directly. Warranty terms typically cover manufacturing defects for a limited period from the date of purchase.
10. Customer Support
If you require further assistance or have questions not covered in this manual, please contact Dial Manufacturing customer support. Contact information can typically be found on the product packaging or the official Dial Manufacturing website.
