MTX Audio T815-44 T8000 Series Subwoofer Instruction Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your MTX Audio T815-44 T8000 Series Subwoofer. Please read these instructions carefully before use to ensure optimal performance and longevity of your product. Retain this manual for future reference.

Product Features

The MTX Audio T815-44 T8000 Series Subwoofer incorporates advanced design and materials for superior audio performance. Key features include:

• Spider Plateau Venting: Mechanically targets cooler air directly at the voice coil, enhancing thermal management and power handling.
• Asymmetrical Linear Drive System (ALDS): Utilizes an extended pole piece and a progressive spider to ensure linear cone motion, reducing distortion and improving sound accuracy.
• Cast Aluminum Basket: Provides a rigid and stable foundation, reducing resonance and unwanted distortion for cleaner bass output.
• Glass Fiber Cone: Offers an optimal stiffness-to-weight ratio, contributing to high sensitivity and responsive bass reproduction.
• 428 Degree Voice Coil Winding: Engineered to withstand the harshest conditions during play, ensuring durability and consistent performance.

Figure 1: Front view of the MTX Audio T815-44 T8000 Series Subwoofer, showcasing the glass fiber cone and robust surround.

Setup and Installation

Proper installation is crucial for the performance and safety of your subwoofer. It is recommended that installation be performed by a qualified professional.

Mounting

The T815-44 subwoofer is designed for flush mount applications within an appropriate enclosure. Ensure the enclosure is adequately sized and constructed to provide optimal acoustic performance and protect the subwoofer.

Wiring and Connections

Connect the subwoofer to a suitable amplifier using high-quality speaker wire. The T815-44 features a 4 Ohm impedance. Ensure your amplifier is stable at this impedance and can provide sufficient power (up to 600 Watts RMS) for optimal performance.

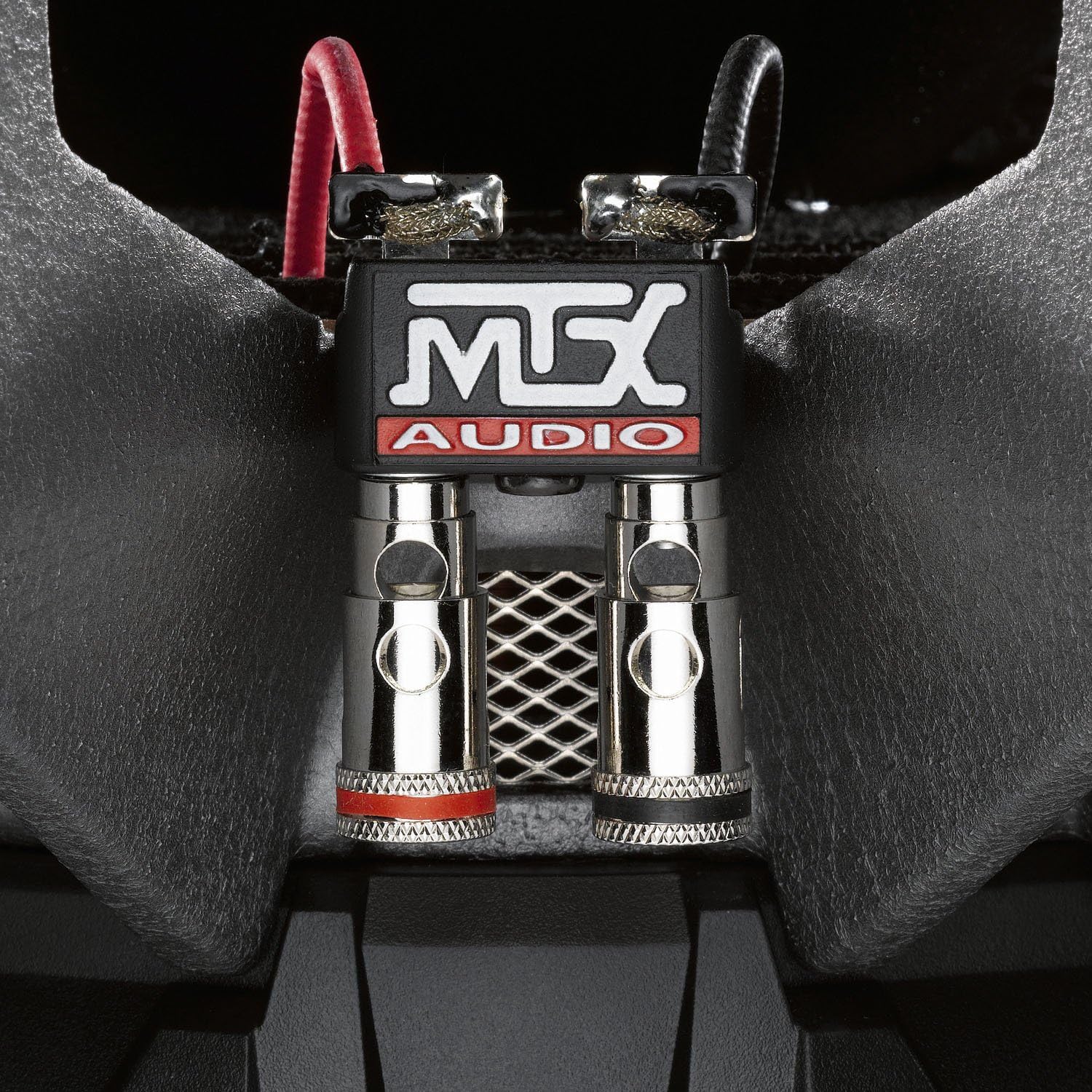

Figure 2: Close-up view of the subwoofer's robust terminal connections, designed for secure and reliable wiring.

Observe correct polarity when connecting the speaker wires to avoid phase issues that can degrade sound quality. Refer to your amplifier's manual for specific wiring diagrams and recommendations.

Operating Instructions

Once installed, the subwoofer operates as part of your car's audio system. The primary control for the subwoofer will be through your head unit or external amplifier controls.

Initial Power-Up

1. Ensure all connections are secure and correct before powering on your audio system.
2. Start with the amplifier gain set to its minimum level.
3. Gradually increase the volume on your head unit and then slowly adjust the amplifier gain until the desired bass level is achieved without distortion.

Audio System Integration

The T815-44 is designed for in-car audio systems. Utilize your head unit's subwoofer level control, crossover settings, and phase adjustments to integrate the subwoofer seamlessly with your main speakers. A typical frequency response for this subwoofer is 33 Hz, indicating its capability for deep bass reproduction.

While the product specifications mention "Voice Control" and "Control Method: Voice", these features typically refer to the overall car audio system's capabilities rather than direct voice control of the subwoofer itself. The subwoofer functions as an output device for the audio signals it receives.

Maintenance

The MTX Audio T815-44 T8000 Series Subwoofer requires minimal maintenance to ensure long-term performance.

• Cleaning: Use a soft, dry cloth to wipe down the subwoofer cone and surround. Avoid using harsh chemicals or abrasive cleaners.
• Inspection: Periodically check all wiring connections to ensure they remain tight and free from corrosion. Inspect the subwoofer surround for any signs of damage or deterioration.
• Environment: Ensure the subwoofer is installed in a location protected from direct sunlight, extreme temperatures, and moisture.

Troubleshooting

If you experience issues with your subwoofer, refer to the following common troubleshooting steps:

• No Sound:
  • Check all power and ground connections to the amplifier.
  • Verify that the remote turn-on wire is connected and receiving voltage.
  • Inspect speaker wire connections at both the subwoofer and amplifier for proper polarity and secure contact.
  • Ensure the amplifier is powered on and not in protection mode.
  • Check head unit settings for subwoofer output level and mute functions.
• Distorted Sound:
  • Reduce the amplifier gain or head unit volume.
  • Check for proper crossover settings to prevent the subwoofer from playing frequencies too high for its design.
  • Ensure the subwoofer is not over-powered or under-powered by the amplifier.
  • Inspect the subwoofer cone and surround for physical damage.
• Weak Bass:
  • Verify correct speaker wire polarity. Incorrect polarity can cause bass cancellation.
  • Check amplifier gain and head unit subwoofer level settings.
  • Ensure the subwoofer enclosure is sealed properly (if applicable) and is of the correct volume.
  • Adjust phase settings on your amplifier or head unit.

If these steps do not resolve the issue, consult a professional car audio installer or contact MTX Audio customer support.

Specifications

The following table details the technical specifications for the MTX Audio T815-44 T8000 Series Subwoofer:

Figure 3: Rear view of the subwoofer, showing the model number and branding on the magnet structure.

Warranty and Support

Your MTX Audio T815-44 T8000 Series Subwoofer is covered by a 5-year limited warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

For technical support, warranty service, or further inquiries, please visit the official MTX Audio website or contact their customer service department. Contact information can typically be found on the brand's official website.

Manufacturer: Mitek Corporation
