Schonbek Hamilton Rock Crystal 1-Light Wall Sconce (Model 5501AM) Instruction Manual

Introduction

Thank you for choosing the Schonbek Hamilton Rock Crystal 1-Light Wall Sconce. This manual provides essential information for the safe installation, operation, and maintenance of your lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.

The Hamilton Rock Crystal wall sconce, Model 5501AM, features a silver finish with amethyst and rose quartz rock crystals, designed to enhance various indoor spaces.

Safety Information

WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.

• This fixture is rated for indoor use only.
• Ensure the electrical supply to the fixture is 120 Volts.
• Use only E12 base, B10 shape 120V light bulbs, 60W maximum incandescent or LED equivalent. Bulbs are sold separately.
• All wiring connections must be in accordance with local and national electrical codes. If you are unfamiliar with proper electrical wiring, consult a qualified electrician.
• Do not exceed the maximum wattage specified.
• Handle crystal components with care to prevent damage or injury.

Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• Lighting Fixture (Schonbek Hamilton Rock Crystal 1-Light Wall Sconce)
• Mounting Hardware
• Instruction Sheets
• Manufacturer Warranty Certificate
• Certificate of Authenticity

Setup and Installation

Professional installation by a qualified electrician is recommended for this product.

1. Prepare for Installation: Turn off power at the main circuit breaker or fuse box. Ensure the power is off before proceeding.
2. Mounting: This fixture is designed to mount to a standard electrical box. Follow the detailed instructions provided in the included 'Instruction Sheets' for secure mounting.
3. Wiring: Connect the fixture's wires to the electrical box wires according to the wiring diagram in the 'Instruction Sheets'. Ensure all connections are secure using appropriate wire connectors.
4. Fixture Assembly: Once wired and mounted, attach any remaining decorative elements, such as the crystal components, as per the 'Instruction Sheets'.
5. Install Bulb: Carefully screw one E12 base, B10 shape bulb (not included) into the socket. Do not overtighten.
6. Restore Power: Once installation is complete and all components are secure, restore power at the circuit breaker or fuse box.

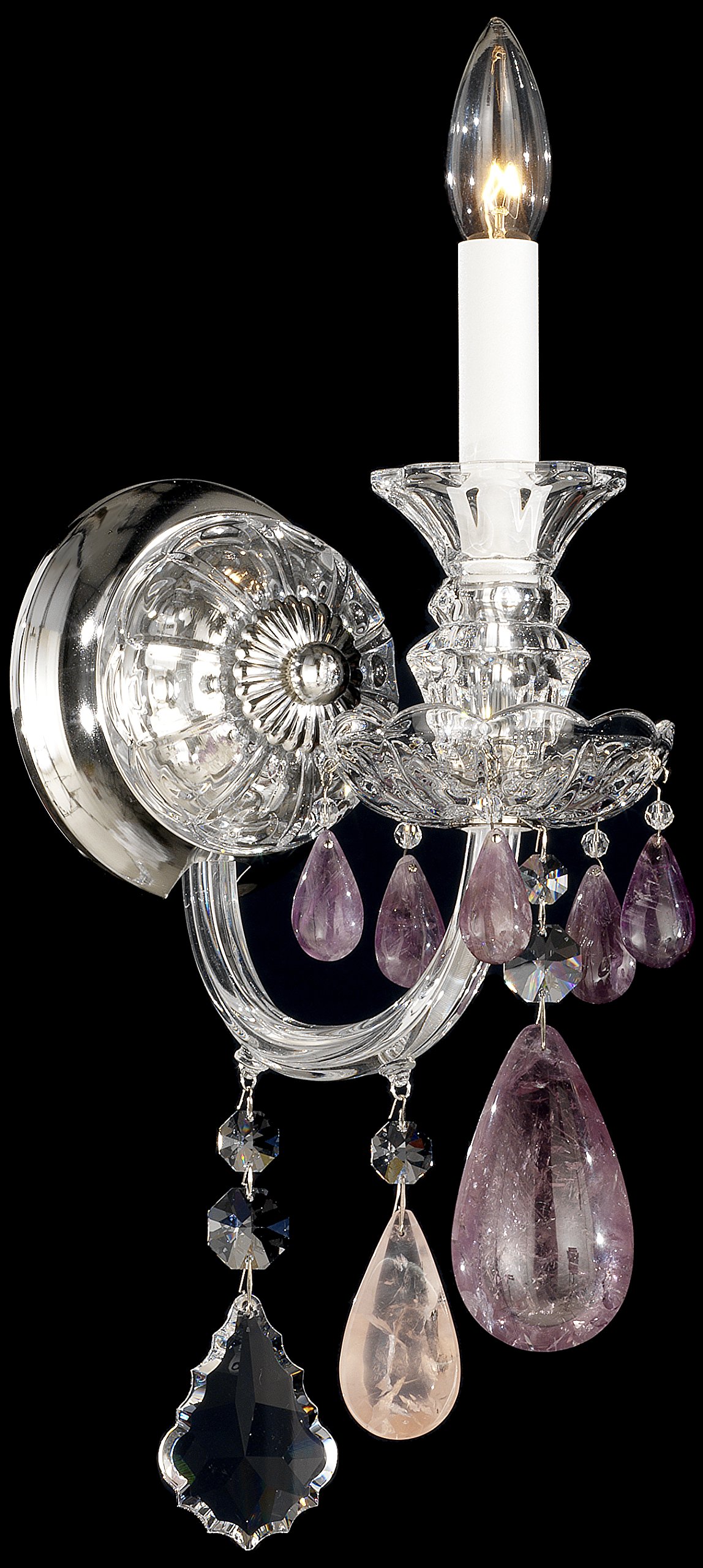

Image: Schonbek Hamilton Rock Crystal 1-Light Wall Sconce, Model 5501AM, featuring a silver finish and elegant amethyst and rose quartz crystals. This image illustrates the fully assembled fixture.

Operating Instructions

The Schonbek Hamilton Wall Sconce is designed for straightforward operation.

• Power On/Off: Control the light fixture using a standard wall switch connected to the electrical circuit.
• Dimming Function: If connected to a compatible dimmer switch, the fixture supports smooth and continuous dimming. Ensure the dimmer is rated for LED or incandescent bulbs as appropriate for your chosen bulb type.
• Bulb Replacement: Always turn off power at the circuit breaker before replacing the bulb. Allow the bulb to cool completely before touching.

Maintenance

Regular cleaning will help maintain the beauty and longevity of your Schonbek wall sconce.

• Cleaning Crystals: Gently wipe crystal components with a soft, lint-free cloth dampened with distilled water or a mild crystal cleaner. Avoid abrasive cleaners or harsh chemicals.
• Cleaning Metal Finish: Wipe the silver finish with a soft, dry cloth. Do not use abrasive cleaners, polishes, or solvents, as these may damage the finish.
• General Care: Periodically check all connections and mounting hardware to ensure they remain secure.

Troubleshooting

If you encounter issues with your wall sconce, refer to the following common troubleshooting steps:

• Light does not turn on:
  • Check if the power is on at the circuit breaker.
  • Ensure the light bulb is securely screwed into the socket and is not burnt out. Replace if necessary.
  • Verify all wiring connections are secure. (Consult a qualified electrician if unsure).
• Light flickers:
  • Ensure the bulb is fully tightened.
  • If using a dimmer, ensure it is compatible with the bulb type and properly installed.
  • Check for loose wiring connections.
• Dimming not working:
  • Confirm the light bulb is dimmable.
  • Ensure the dimmer switch is compatible with the bulb type (e.g., LED dimmer for LED bulbs).

If problems persist after following these steps, contact customer support or a qualified electrician.

Specifications

Warranty and Support

This Schonbek Hamilton Rock Crystal Wall Sconce comes with a 5-year manufacturer's warranty. Please refer to the 'Manufacturer Warranty Certificate' included in your package for full terms and conditions.

For technical assistance, replacement parts, or warranty claims, please contact Schonbek customer support. Have your model number (5501AM) and proof of purchase ready when contacting support.

A 'Certificate of Authenticity' is also included, verifying the genuine nature of your Schonbek product.
