Introduction
This manual provides detailed instructions for the proper setup, operation, and maintenance of your Okuma Cy-200 Cayenne Right Handed Baitcaster Crank reel. The Cy-200 is engineered with a rigid die-cast aluminum frame, an aluminum right side plate for gear alignment, and an A6061-T6 machined aluminum anodized spool. It features a machine-cut brass main and pinion gear, a Carbonite drag system, and a 9-precision bearing drive system for smooth performance. Please read this manual thoroughly before using your reel to ensure optimal performance and longevity.
Key Features
- 9 Precision Ball Bearings: Ensures smooth operation and retrieve.
- Deep Spool Capacity: Holds 160 yards of 12lb test line (Whiffled spool holds 130 yards of 12lb test).
- Rigid Construction: Features a die-cast aluminum frame and aluminum side plates for durability and gear alignment.
- Low Profile Design: Ergonomic and comfortable for extended use.
- High Drag Pressure: Provides 11 pounds of maximum drag pressure for handling strong fish.
- Carbonite Drag System: Delivers smooth and consistent drag performance.
- Micro-Click Drag Star: Allows for precise drag settings.
- Quick Set Anti-Reverse Roller Bearing: Eliminates back play for solid hook sets.
- Precision Japanese ABEC-5 Spool Bearings: Enhances casting distance and smoothness.
- 8-Position Velocity Control System: Provides adjustable braking for various lure weights and wind conditions.
- Easy Change Left Side Plate Access Port: Simplifies maintenance and spool access.
- Zirconium Line Guide Inserts: Suitable for use with braided lines.
Setup Guide
1. Attaching the Reel to a Rod
Align the reel foot with the reel seat on your fishing rod. Secure the reel by tightening the reel seat nut until the reel is firmly in place and does not wobble. Ensure the reel is oriented correctly for right-handed operation.
2. Spooling Fishing Line
- Open the left side plate access port to expose the spool.
- Tie the end of your fishing line to the spool using an arbor knot or similar secure knot.
- Close the side plate.
- Thread the line through the line guide and all guides on your fishing rod.
- Apply light tension to the line as you reel it onto the spool. Ensure the line is spooled evenly across the entire width of the spool. Do not overfill the spool; leave approximately 1/8 inch (3mm) from the spool lip to prevent tangles and backlashes.
Figure 1: Front view of the Okuma Cy-200 Cayenne Baitcaster Reel, showing the handle, spool, and main body.
Operating Instructions
1. Adjusting the Drag System
The Carbonite drag system is controlled by the star-shaped drag knob located next to the handle. Turn the drag knob clockwise to increase drag pressure and counter-clockwise to decrease it. Adjust the drag so that line can be pulled off the spool with moderate effort, preventing line breakage during a fight with a fish. A good starting point is to set the drag to approximately 25-30% of your line's breaking strength.

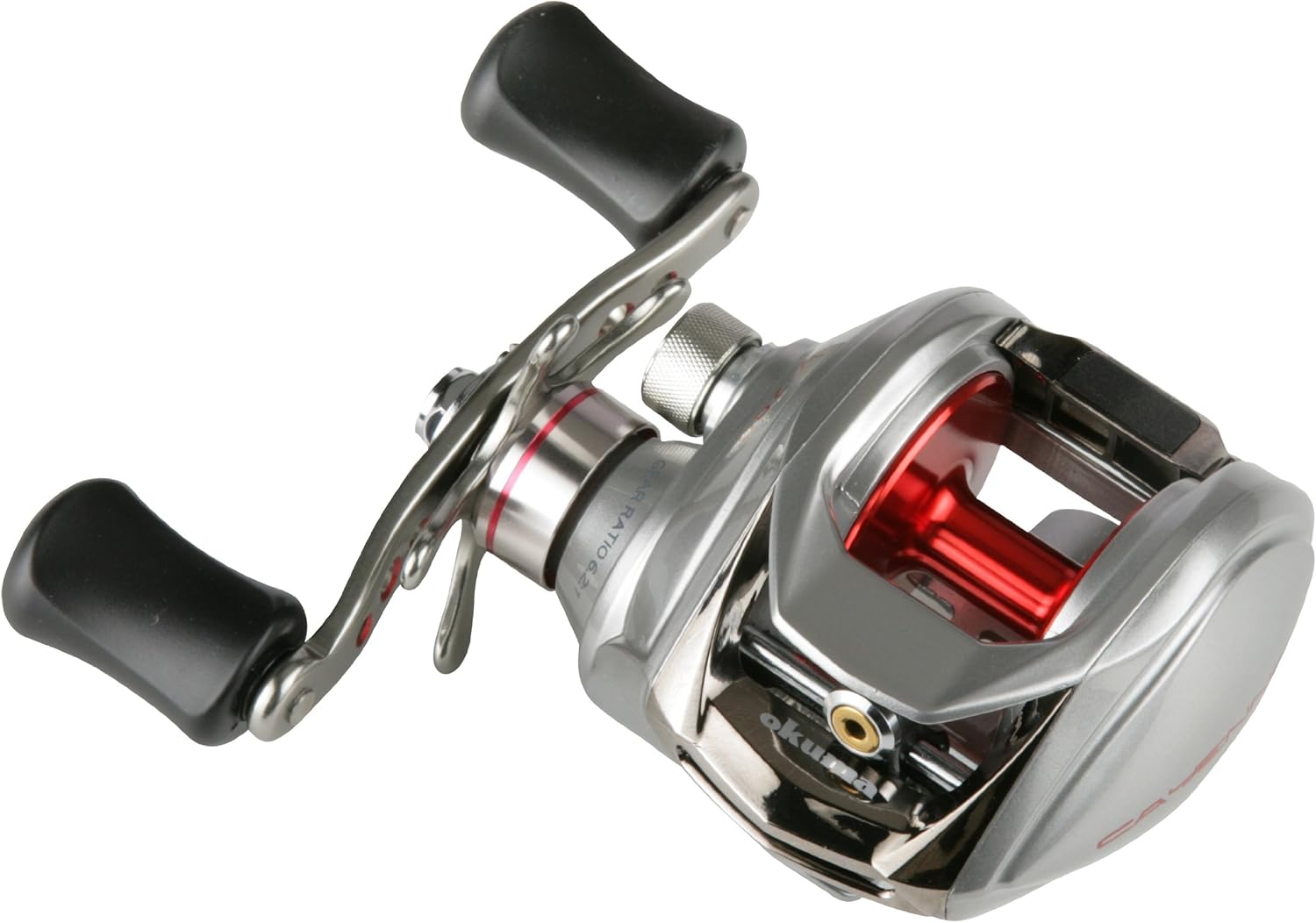

Figure 2: Side view of the Okuma Cy-200 Cayenne Baitcaster Reel, highlighting the gear ratio and drag star.
2. Adjusting the Spool Tension (Cast Control)
The spool tension knob, typically located on the side opposite the handle, controls the free spin of the spool. To set, attach your lure, engage the reel, and then disengage the spool. Slowly tighten the spool tension knob until the lure slowly falls to the ground. This setting helps prevent backlashes during casting. Fine-tune as needed based on lure weight and casting conditions.
3. Using the Velocity Control System (Braking)
The 8-position Velocity Control System (VCS) is an internal centrifugal braking system. To access, open the left side plate. Adjust the small pins or weights inside the reel to control the amount of braking applied to the spool during a cast. More pins engaged means more braking, which is useful for beginners or when casting lighter lures or into wind. Fewer pins engaged allows for longer casts but requires more thumb control to prevent backlashes.
4. Casting
- Hold the rod and reel comfortably.
- Press the thumb bar to disengage the spool.
- Use your thumb to lightly feather the spool to prevent it from spinning freely.
- Make your cast. As the lure flies, continue to feather the spool with your thumb to control its speed and prevent backlashes.
- Just before the lure hits the water, apply firm thumb pressure to stop the spool.
- Begin retrieving by turning the handle. This will automatically re-engage the spool.
Figure 3: Other side view of the Okuma Cy-200 Cayenne Baitcaster Reel, displaying the Cy-200 model number.
Maintenance
1. After Each Use
- Rinse the reel with fresh water to remove salt, sand, and debris. Do not submerge the reel.
- Wipe the reel dry with a soft cloth.
- Loosen the drag completely to prevent compression of the drag washers during storage.
2. Periodic Lubrication
- Apply a small amount of reel oil to the spool bearings, handle knobs, and any moving parts.
- Apply a thin layer of reel grease to the main gear and pinion gear. Refer to a reel schematic if performing a full disassembly.
- Use only lubricants specifically designed for fishing reels.
3. Storage
Store your reel in a cool, dry place, away from direct sunlight and extreme temperatures. Consider using a reel cover or case to protect it from dust and physical damage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Frequent Backlashes | Spool tension too loose, braking system not engaged enough, improper thumb control, overfilled spool. | Tighten spool tension, engage more pins on the Velocity Control System, practice thumb control, remove excess line. |
| Stiff or Grinding Retrieve | Lack of lubrication, dirt/debris in gears, damaged bearings. | Clean and lubricate gears and bearings. If problem persists, professional service may be required. |
| Drag Slips or is Inconsistent | Drag washers are dry, worn, or contaminated with oil/grease. | Clean drag washers. Replace if worn. Ensure drag is loosened during storage. |
| Line Does Not Lay Evenly | Line guide is obstructed or damaged, reel not spooled correctly. | Check line guide for debris. Respool line ensuring even tension. |
Specifications
- Model: Cy-200
- Brand: Okuma
- Hand Orientation: Right Hand
- Color: Silver/Red
- Material: Aluminium
- Bearing Count: 9 Ball Bearings
- Maximum Drag: 11 Pounds
- Spool Capacity (12lb test): 160 yards (Deep Spool), 130 yards (Whiffled Spool)
- Product Dimensions: 30.48 x 30.48 x 15.24 cm
- Item Weight: 272.16 g
- UPC: 739998141098
- First Available: 10 June 2010
Warranty and Support
Warranty Information
The Okuma Cy-200 Cayenne Baitcaster Reel is backed by a 1-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, abuse, unauthorized modification, or normal wear and tear. Please retain your proof of purchase for warranty claims.
Customer Support
For technical assistance, warranty claims, or spare parts inquiries, please contact Okuma customer support through their official website or authorized service centers. Provide your reel's model number (Cy-200) and proof of purchase when contacting support.
