Salton Automatic Pizzelle Baker Instruction Manual

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical hazards, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, remove plug from wall outlet.
• Do not use appliance for other than intended household use.
• This appliance is for household use only.

Product Overview

The Salton Automatic Pizzelle Baker is designed to create two traditional pizzelle cookies simultaneously. It features thermostatically controlled heating for consistent results and non-stick coated plates for easy food release and cleaning.

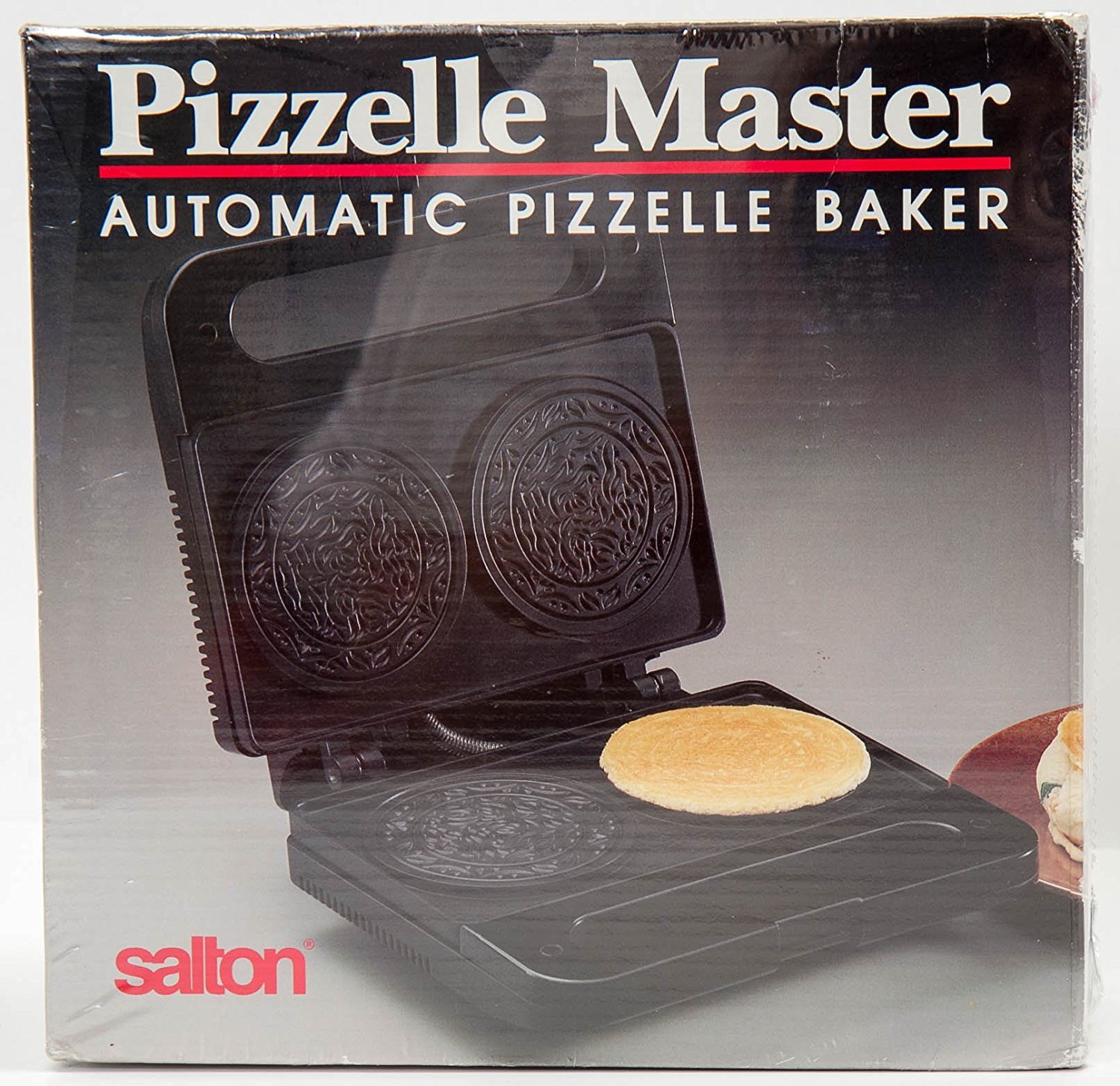

This image displays the Salton Automatic Pizzelle Baker with its lid open, revealing the two circular non-stick baking plates. Each plate features an intricate, traditional pizzelle pattern, ready for dough. The appliance is black with a handle for easy opening and closing.

Setup and First Use

1. Unpacking: Carefully remove the pizzelle baker from its packaging. Retain packaging for future storage or disposal.
2. Initial Cleaning: Wipe the non-stick baking plates with a damp cloth or sponge. Dry thoroughly. Do not use abrasive cleaners or scouring pads, as these can damage the non-stick coating.
3. First Heating: Before first use, plug the appliance into a standard electrical outlet. The indicator light will illuminate. Allow the baker to heat for approximately 5-10 minutes without dough. This process helps to burn off any manufacturing residues. A slight odor or smoke may be present during this initial heating; this is normal and will dissipate. Unplug and allow to cool completely.
4. Conditioning Plates: For optimal non-stick performance, lightly brush the baking plates with a small amount of cooking oil or butter before the first batch of pizzelles. This is generally not required for subsequent batches due to the non-stick coating.

Operating Instructions

1. Preheating: Close the lid and plug the pizzelle baker into a 230V AC electrical outlet. The indicator light will turn on, signaling that the unit is heating. Allow the baker to preheat for approximately 5-7 minutes until the indicator light turns off, indicating it has reached the optimal baking temperature.
2. Dough Placement: Open the lid. Place a tablespoon of pizzelle dough onto the center of each baking plate. Do not overfill, as the dough will spread when the lid is closed.
3. Baking: Carefully close the lid, ensuring it latches securely. The indicator light may turn on again as the appliance maintains temperature. Bake for approximately 30-60 seconds, or until the pizzelles are golden brown. Baking time may vary depending on the recipe and desired crispness. Monitor closely to prevent over-browning.
4. Removing Pizzelles: Once baked, open the lid. Using a non-metallic utensil (such as a wooden or heat-resistant plastic spatula), carefully remove the pizzelles from the plates. If desired, immediately roll the hot pizzelles into cones or cylinders for cannoli shells, or lay them flat to cool for traditional pizzelles.
5. Subsequent Batches: Close the lid to allow the baker to reheat between batches. The indicator light will cycle on and off to maintain the correct temperature. Repeat steps 2-4 for additional pizzelles.

Care and Cleaning

Proper care and cleaning will extend the life of your pizzelle baker.

1. Cool Down: Always unplug the appliance from the electrical outlet and allow it to cool completely before cleaning.
2. Cleaning Baking Plates: Wipe the non-stick baking plates with a damp cloth or sponge. For stubborn residue, a small amount of mild dish soap can be used, followed by wiping with a clean damp cloth. Do not use abrasive cleaners, metal scouring pads, or sharp utensils, as these will damage the non-stick coating.
3. Cleaning Exterior: Wipe the exterior of the pizzelle baker with a soft, damp cloth. Do not immerse the appliance in water or any other liquid.
4. Storage: Once clean and completely dry, store the pizzelle baker in a cool, dry place. The compact design allows for vertical storage to save space.

Troubleshooting

Specifications

• Model: 43237-2
• Brand: Salton
• Voltage: 230 Volts
• Wattage: 1000 Watts
• Item Weight: Approximately 3.9 Pounds
• Special Feature: Non-Stick Coating
• Style: Automatic
• UPC: 082846022682

Warranty and Support

This Salton appliance comes with a limited warranty. For specific warranty details, terms, and conditions, please refer to the warranty card included with your purchase or contact Salton customer service.

For technical support, service, or replacement parts, please visit the official Salton website or contact their customer service department. Keep your purchase receipt as proof of purchase for warranty claims.
