Billy Goat Clutch Kit Part # 500338 Instruction Manual

1. Introduction

This manual provides essential instructions for the proper installation, operation, and maintenance of your Billy Goat Clutch Kit Part # 500338. Please read this manual thoroughly before attempting any installation or use to ensure safety and optimal performance of the product. This clutch kit is designed as a replacement component for compatible Billy Goat equipment.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or equipment damage.

• Always disconnect power to the equipment before beginning any installation, maintenance, or repair work.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation.
• Ensure the equipment is stable and secured before working on it to prevent accidental movement.
• If you are unsure about any part of the installation process, consult a qualified service technician.
• Use only genuine Billy Goat replacement parts to ensure compatibility and safety.
• Keep children and bystanders away from the work area.

3. Package Contents

Carefully unpack the contents and verify that all items are present and undamaged. If any parts are missing or damaged, contact your dealer immediately.

• 1 x Billy Goat Clutch Kit Part # 500338 (main clutch assembly)
• (Potentially) Mounting hardware (bolts, washers, nuts) - Verify with actual product packaging.
• (Potentially) Installation instructions (if separate from this manual)

4. Setup & Installation

This section outlines the general steps for installing the Billy Goat Clutch Kit. Specific procedures may vary depending on your equipment model. Refer to your equipment's service manual for detailed instructions.

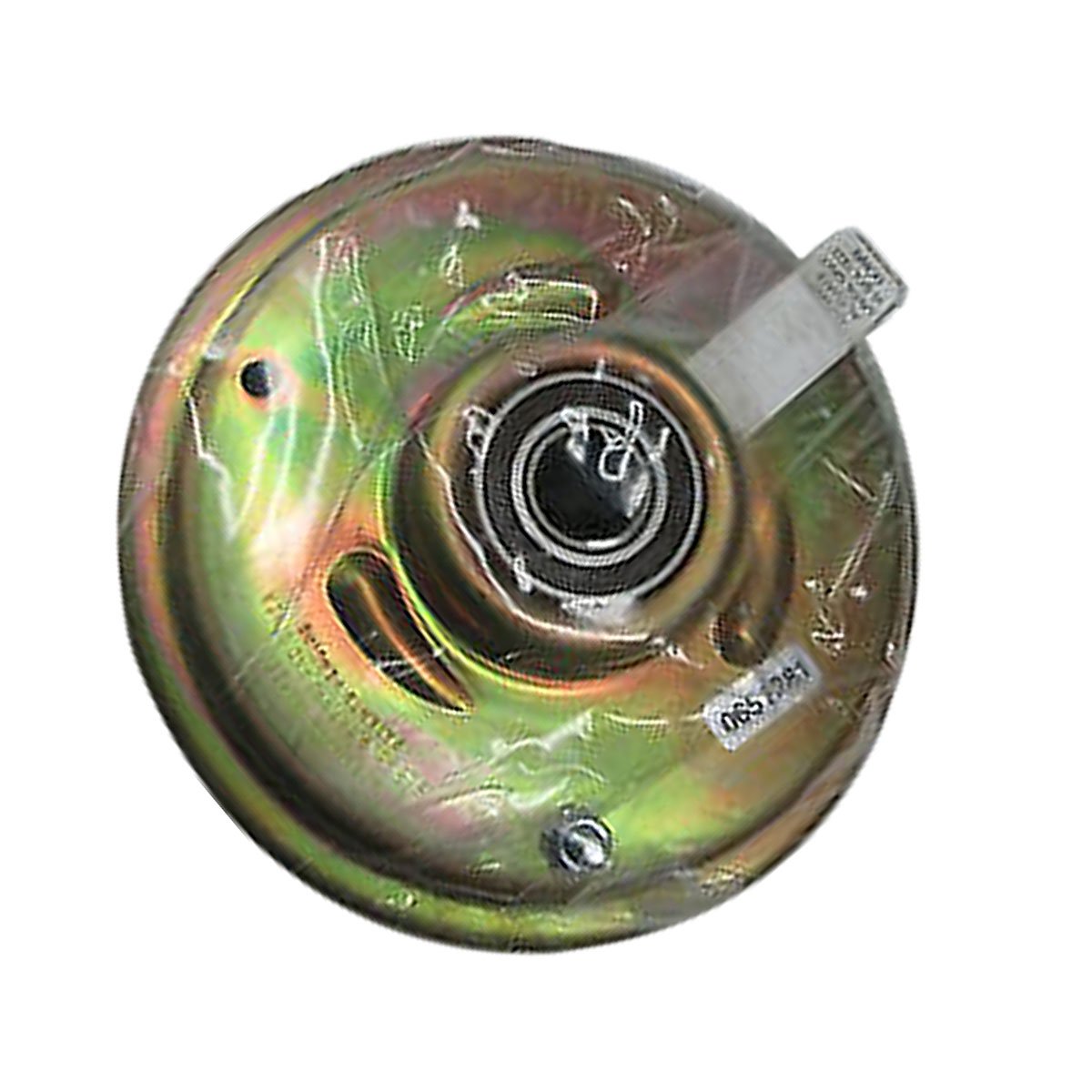

Figure 1: Billy Goat Clutch Kit Part # 500338. This image displays the complete clutch assembly, a critical component for power transmission in compatible equipment.

4.1 Pre-Installation Steps

1. Prepare Equipment: Ensure the equipment is turned off, cooled down, and disconnected from any power source (e.g., spark plug wire removed, battery disconnected).
2. Access Clutch Area: Depending on your equipment, you may need to remove covers, guards, or other components to gain access to the existing clutch assembly.
3. Document Disassembly: Take photos or make notes of wiring, bolt locations, and component orientation to aid in reassembly.

4.2 Removal of Old Clutch

1. Loosen Fasteners: Carefully loosen and remove all bolts, nuts, or retaining clips securing the old clutch assembly.
2. Disconnect Linkages: If applicable, disconnect any cables, linkages, or electrical connections attached to the clutch.
3. Remove Clutch: Gently remove the old clutch assembly from its mounting position. Note any shims or spacers.
4. Clean Mounting Surface: Thoroughly clean the mounting surface on the equipment to ensure proper seating of the new clutch.

4.3 Installation of New Clutch Kit

1. Position New Clutch: Carefully place the new Billy Goat Clutch Kit Part # 500338 onto the mounting surface, ensuring correct alignment.
2. Secure Fasteners: Install all bolts, nuts, or retaining clips. Refer to your equipment's service manual for specific torque specifications. Tighten fasteners evenly to prevent distortion.
3. Reconnect Linkages: Reconnect any cables, linkages, or electrical connections that were detached. Ensure they are routed correctly and operate smoothly.
4. Reassemble Equipment: Reinstall any covers, guards, or components that were removed during disassembly.

4.4 Post-Installation Check

• Verify all fasteners are tight.
• Ensure all cables and linkages move freely without binding.
• Check for any obstructions around the clutch assembly.
• Reconnect power and perform a functional test according to your equipment's manual.

5. Operation

The clutch kit is an integral part of your equipment's power transmission system. Its operation is typically controlled by a lever or switch on your equipment, engaging or disengaging power to the working components (e.g., blades, wheels). Refer to your specific equipment's operating manual for detailed instructions on how to properly engage and disengage the clutch.

• Always ensure the engine is running at the recommended RPM before engaging the clutch.
• Engage the clutch smoothly to prevent excessive wear and tear.
• Disengage the clutch when stopping or when the working components are not needed.

6. Maintenance

Regular maintenance helps extend the life of your clutch kit and ensures reliable performance. Always refer to your equipment's service manual for specific maintenance schedules and procedures.

• Inspection: Periodically inspect the clutch for signs of wear, damage, or excessive heat (discoloration). Check for loose fasteners.
• Cleaning: Keep the clutch area free from debris, dirt, and grass clippings, which can interfere with its operation and cause overheating.
• Lubrication: Some clutch types may require periodic lubrication of specific pivot points or bearings. Consult your equipment's manual.
• Adjustment: Ensure clutch engagement/disengagement mechanisms (cables, linkages) are properly adjusted for optimal performance and to prevent slippage or dragging.

7. Troubleshooting

This section provides solutions to common issues you might encounter with your clutch kit. For more complex problems, consult a qualified technician.

8. Specifications

The following specifications apply to the Billy Goat Clutch Kit Part # 500338:

• Part Number: 500338
• Brand: Billy Goat
• Item Weight: 5 pounds
• ASIN: B002LWLRZM
• Type: Replacement Clutch Kit
• Note: Specific dimensions and material composition are proprietary and designed for compatibility with Billy Goat equipment.

9. Warranty & Support

Billy Goat products are manufactured to high standards and are backed by a limited warranty against defects in materials and workmanship. For specific warranty terms and conditions applicable to your Billy Goat Clutch Kit Part # 500338, please refer to the warranty documentation included with your original equipment or visit the official Billy Goat website.

For technical support, replacement parts, or warranty claims, please contact your authorized Billy Goat dealer or Billy Goat customer service directly. When contacting support, please have your equipment model number and the clutch kit part number (500338) available.

Billy Goat Official Website: www.billygoat.com
