1. Introduction
The RCA PS26000S is a 6-outlet surge suppressor designed to protect your electronic equipment from damaging power surges. Power surges can occur at any time, not just during storms, and can degrade or destroy sensitive electronics. This device provides 450 Joules of surge protection, making it suitable for general household appliances and home entertainment electronics such as TVs, DVDs, VCRs, and portable audio devices. It also expands the number of available outlets and includes integrated child safety covers for enhanced safety.

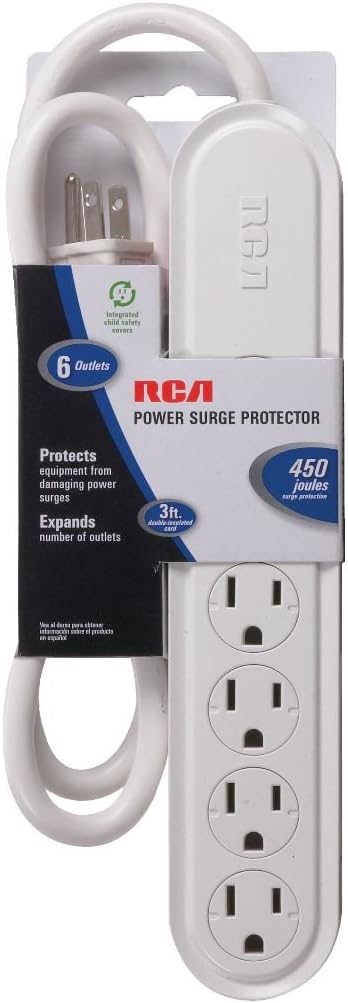

Image 1.1: The RCA PS26000S 6-Outlet Surge Protector shown in its retail packaging, highlighting its features like 6 outlets, 450 joules protection, and a 3-foot cord.
2. Safety Information
Please read all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or damage to the product or connected devices.
- Do not use this surge protector with aquariums or other water-related products.
- Do not install this device if there is not at least 10 meters (30 feet) or more of wire between the electrical outlet and the main service panel.
- This surge protector is for indoor use only. Do not expose to moisture.
- Do not plug into another relocatable power tap or extension cord.
- Ensure the total current draw of all connected equipment does not exceed the surge protector's maximum rating.
- The integrated child safety covers should be used when outlets are not in use to prevent accidental contact with live parts.
- Over time, surge protectors lose their ability to protect and should be replaced. Consider replacing this unit after several years of use or after a significant power surge event.
3. Package Contents
Verify that all items are present in the package:
- RCA PS26000S 6-Outlet 450 Joules Surge Protector
- User Manual (this document)
4. Features
The RCA PS26000S surge protector offers the following key features:
- 6 AC Outlets: Provides power for multiple devices.
- 450 Joules Surge Protection: Safeguards connected electronics from power spikes.
- 3-Foot Double Insulated Cord: Offers flexibility in placement and enhanced safety.
- Integrated Child Safety Covers: Protects unused outlets from dust and accidental contact.
- Power On/Off Switch: Allows for convenient control of power to all connected devices.
5. Setup
Follow these steps to set up your surge protector:
- Unpack the Surge Protector: Carefully remove the surge protector from its packaging.
- Choose a Location: Place the surge protector on a flat, stable surface, away from sources of moisture or excessive heat. Ensure the 3-foot cord can reach a wall outlet without being stretched or kinked.
- Plug into Wall Outlet: Insert the surge protector's plug firmly into a standard 3-prong grounded wall outlet. Do not plug it into another surge protector or extension cord.
- Connect Devices: Plug your electronic devices into the 6 available outlets on the surge protector. Ensure the plugs are fully inserted.
- Activate Power: Press the red power switch to the "ON" position. A light indicator (if present) should illuminate, confirming power is supplied.
Image 5.1: The RCA PS26000S surge protector with multiple power cords plugged into its outlets, demonstrating typical usage.
6. Operating Instructions
Using your RCA PS26000S surge protector is straightforward:
- Power On/Off: Use the red switch on the side of the unit to turn power to all connected devices on or off. When the switch is in the "ON" position, power is supplied to all 6 outlets.
- Child Safety Covers: Each outlet features an integrated child safety cover. To plug in a device, rotate the cover to align the openings with the plug prongs, then insert the plug. When unplugging a device, the cover will automatically rotate back to its closed position, or can be manually rotated to cover the openings.
- Surge Protection: The device continuously monitors incoming power for surges. In the event of a power spike exceeding 450 Joules, the surge protector will absorb the excess energy to protect your connected equipment. Note that after a significant surge, the protection capability may be diminished, and the unit may need replacement.
7. Maintenance
To ensure optimal performance and longevity of your surge protector:
- Cleaning: Disconnect the surge protector from the wall outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid or aerosol cleaners.
- Inspection: Periodically inspect the cord and housing for any signs of damage, such as cuts, fraying, or cracks. If damage is found, discontinue use and replace the unit.
- Replacement: Surge protectors have a finite lifespan. Their protective components degrade over time and with each surge event. It is recommended to replace your surge protector every 3-5 years, or immediately after a severe power surge, even if it appears to be functioning normally.
8. Troubleshooting
If you encounter issues with your surge protector, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to connected devices. | Surge protector switch is OFF. Surge protector is not plugged into wall outlet. Wall outlet has no power. Surge protection circuit has been tripped/damaged. | Ensure the red power switch is in the "ON" position. Verify the surge protector is securely plugged into a working wall outlet. Test the wall outlet with another device. Check your home's circuit breaker. If the unit has experienced a significant surge, it may need replacement. |
| Child safety covers are difficult to open/close. | Misalignment or newness of mechanism. | Apply gentle, even pressure when rotating the covers. They may become easier to operate with repeated use. Ensure plug prongs are aligned correctly. |
| Connected devices are still damaged after a surge. | Surge exceeded the unit's protection capacity. Surge protector is old or degraded. | While the unit provides protection, extreme surges can still cause damage. Replace the surge protector immediately. Consider a higher joule rating for more sensitive or expensive equipment. |
9. Specifications
Detailed technical specifications for the RCA PS26000S surge protector:
- Model Number: PS26000S
- Brand: RCA (Manufactured by Audiovox)
- Total Power Outlets: 6 AC Outlets
- Surge Protection Rating: 450 Joules
- Cord Length: 3 feet (double insulated)
- Plug Type: Type B - 3 pin (North American)
- Special Features: Portable, Surge Protection, Integrated Child Safety Covers
- Compatible Devices: General Household Appliances and Home Entertainment Electronics
- Item Weight: 11.2 ounces
- Color: White
10. Warranty Information
This RCA PS26000S surge protector comes with a 1 Year Limited Warranty. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact RCA customer support.
11. Customer Support
For further assistance, technical support, or warranty claims, please contact RCA customer service. Visit the official RCA website for contact details and additional product information.
