HON 5 Drawer Vertical File Cabinet Instruction Manual

1. Product Overview

The HON 310 Series 5-Drawer Vertical File Cabinet is a robust and secure storage solution designed for managing documents efficiently. Constructed from solid steel with vertical reinforcements and a double-walled front kick plate, this cabinet ensures durability and protection for your important files. It features smooth-gliding, full-suspension drawers with thumb latches for secure closure and easy access. The integrated HON One Key core-removable locks provide enhanced security, allowing for lock replacement as needed. Designed to accommodate letter-sized hanging files, this cabinet is a reliable addition to any office environment.

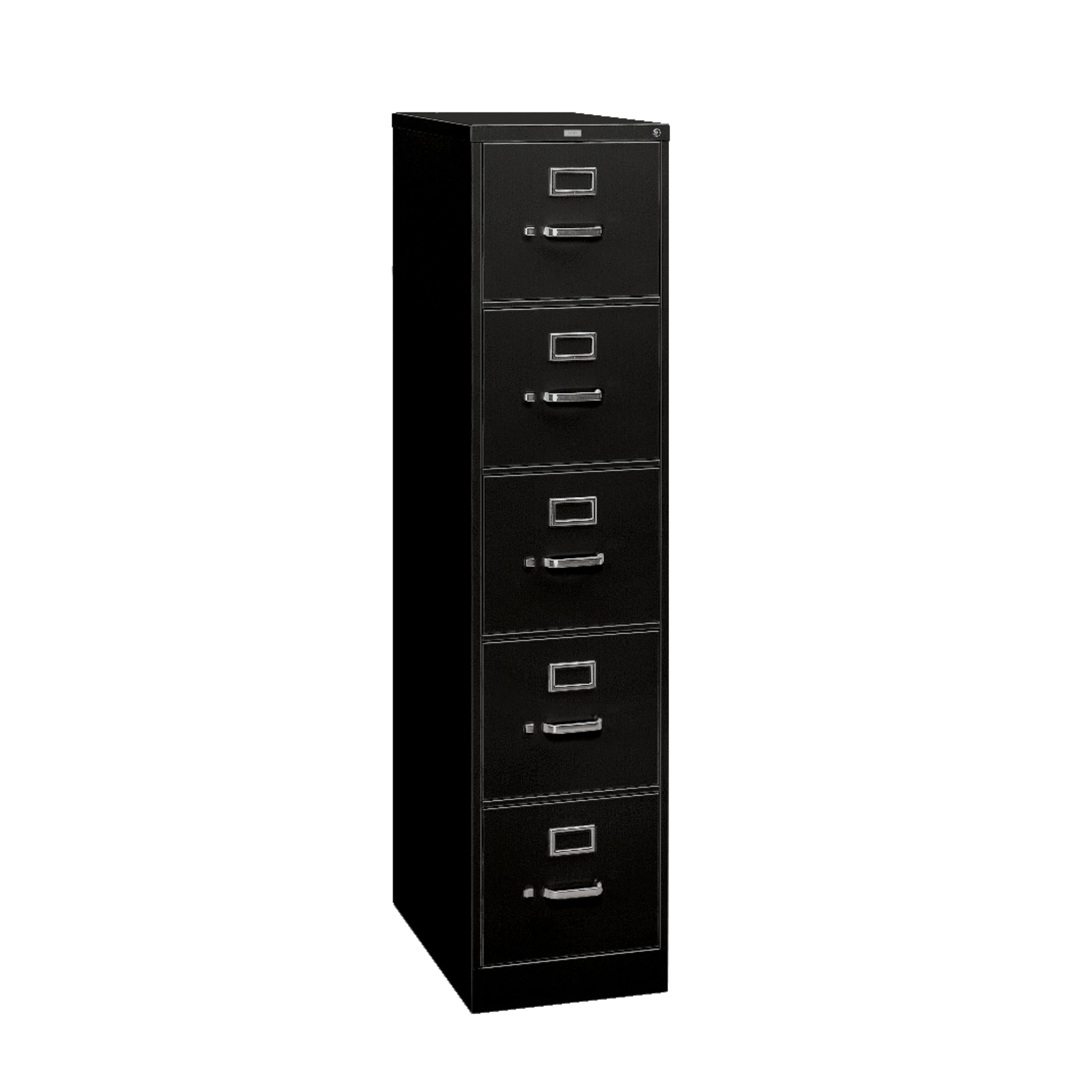

Image: Front view of the HON 5-Drawer Vertical File Cabinet in black.

2. Key Features

• Solid Steel Construction: Built with vertical reinforcements and a double-walled front kick plate for enhanced durability and security.
• Replaceable Locks: Features HON One Key core-removable locks, allowing for easy replacement to maintain security.
• Smooth-Glide Drawers: Ball-bearing full-suspension drawers ensure quiet and effortless opening and closing.
• Secure Closure: Thumb latches keep drawers firmly shut, preventing accidental opening.
• Hanging File Support: High drawer sides accommodate letter-width hanging file folders without the need for additional hangrails.
• Label Holders: Brushed aluminum label holders facilitate quick and easy file identification.

Image: Detailed diagram illustrating the core removable locks, aluminum label holders, vertical reinforcements, and double-walled kickplate.

3. Setup and Installation

The HON 5 Drawer Vertical File Cabinet is designed for easy setup with minimal assembly required. Simply place the cabinet in your desired location and follow the basic instructions for securing it to the floor if necessary. No complex assembly is needed, ensuring a quick and hassle-free installation process.

Placement Considerations:

• Ensure the cabinet is placed on a level surface to prevent tipping and ensure smooth drawer operation.
• Allow adequate clearance around the cabinet for full drawer extension and access.
• For enhanced stability, especially in high-traffic areas or if the cabinet is frequently moved, consider securing it to a wall or floor using appropriate hardware (not included).

4. Operation

Opening and Closing Drawers:

1. To open a drawer, press the thumb latch located on the handle and pull the drawer outwards.
2. To close a drawer, push it firmly until the thumb latch engages, securing the drawer in place.
3. The ball-bearing full-suspension system ensures smooth and quiet operation.

Using the Lock:

1. Insert the key into the lock cylinder located at the top of the cabinet.
2. Turn the key to the locked position to secure all drawers simultaneously.
3. Turn the key to the unlocked position to release the drawers.
4. The HON One Key core-removable lock allows for easy replacement if security needs change.

Filing Documents:

• The high drawer sides are designed to hold letter-width hanging file folders directly, eliminating the need for separate hangrails.
• Utilize the brushed aluminum label holders on each drawer to clearly identify contents for quick retrieval.

Image: A drawer filled with hanging files, illustrating the deep storage capacity.

5. Maintenance

Cleaning:

• Wipe the exterior surfaces with a damp cloth.
• Avoid using abrasive cleaners or harsh chemicals, as these may damage the finish.
• For stubborn marks, a mild soap solution can be used, followed by wiping with a clean, dry cloth.

Drawer Mechanism:

• Periodically check the ball-bearing slides for any debris or obstructions that might hinder smooth operation.
• Lubrication is generally not required for the ball-bearing slides under normal use.

6. Troubleshooting

Common Issues and Solutions:

• Drawer not closing smoothly: Check for any items obstructing the drawer slides or if the cabinet is on an uneven surface. Ensure the thumb latch mechanism is clear of debris.
• Cabinet tipping: Ensure the cabinet is placed on a stable, level surface. Avoid overloading drawers, especially the top ones. For maximum stability, only open one drawer at a time.
• Lock not engaging: Ensure all drawers are fully closed before attempting to lock the cabinet. Check if the key is fully inserted and turned correctly.

Important Safety Information:

Avoid overloading the cabinet. Ensure proper installation to prevent tipping. Keep drawers closed when not in use to prevent accidents.

7. Specifications

Image: Detailed specifications and dimensions for the HON 310 Series file cabinet.

8. Warranty and Support

Warranty Information:

This HON 5 Drawer Vertical File Cabinet is backed by the HON Full Lifetime Warranty, ensuring years of reliable service and peace of mind. For detailed terms and conditions of the warranty, please refer to the official HON website or contact customer support.

Customer Support:

For any questions, assistance, or to claim warranty service, please visit the HON Store on Amazon or contact HON customer service directly. Support options typically include online resources, phone support, and email assistance.

Protection Plans:

Additional protection plans may be available for purchase to extend coverage beyond the manufacturer's warranty. Options include:

• 3-Year Protection Plan: Provides extended coverage for three years.
• Complete Protect: A monthly plan covering all eligible past and future purchases.
