1. Product Overview
The HYDE 57660 Flat Sided Wood Extension Blade Handle is designed to securely hold various utility blades for tasks requiring extended reach or specific angles. It features a durable hardwood construction and plated steel components for reliable performance.

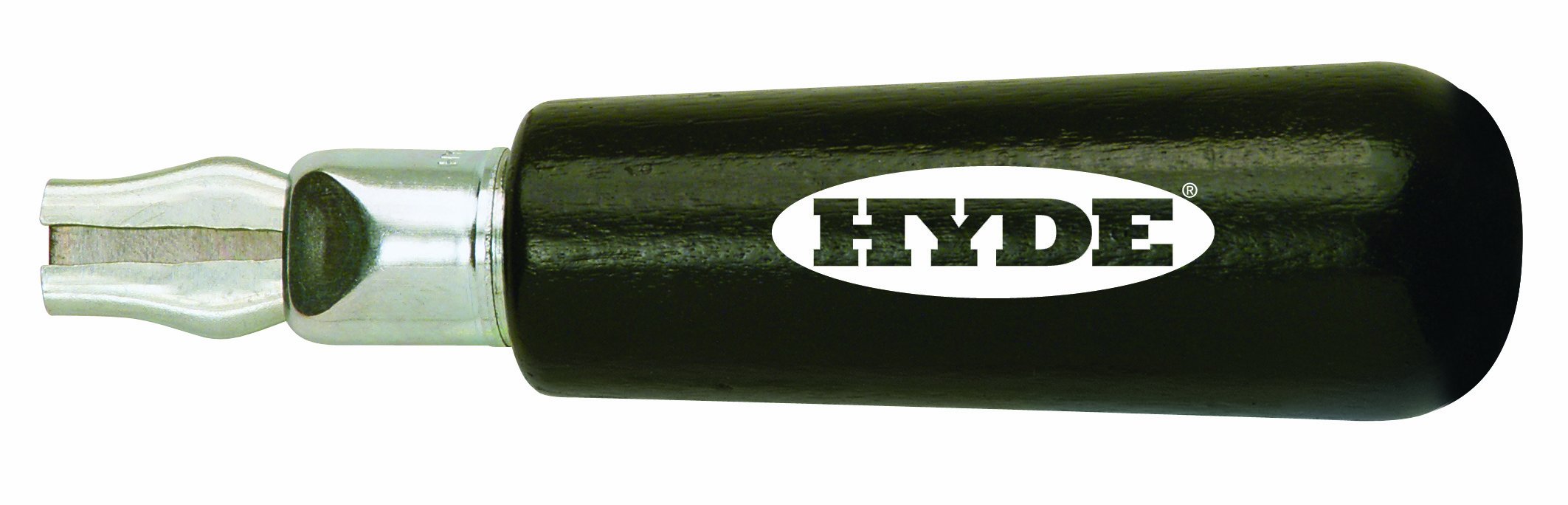

Image 1.1: The HYDE 57660 Flat Sided Wood Extension Blade Handle, showcasing its wooden handle and metal blade-holding mechanism.
Key Features:
- Constructed with select hardwood for durability and comfortable grip.
- Plated steel jaws and ferrules ensure blades are securely locked.
- Compatible with 5/16-inch and 3/8-inch utility blades.
- Overall length of 4-3/4 inches provides extended reach.
2. Setup and Blade Installation
- Safety First: Always handle blades with extreme caution. Wear appropriate hand protection.
- Loosen Jaws: Twist the ferrule (metal collar) counter-clockwise to loosen the steel jaws at the end of the handle.
- Insert Blade: Carefully insert the desired 5/16-inch or 3/8-inch utility blade into the opening between the loosened jaws. Ensure the blade is seated properly and straight.
- Secure Blade: Twist the ferrule clockwise to tighten the steel jaws firmly around the blade. Test the blade's security before use to ensure it does not wobble.
Note: The plated steel jaws are designed to securely lock blades into various lengths, allowing for adjustable blade exposure as needed for your task.
3. Operating the Extension Blade Handle
This extension blade handle is designed for precision work, scraping, and cutting tasks where a standard utility knife might not provide sufficient reach or control. Always ensure the blade is sharp and securely fastened before beginning any task.
- Grip: Hold the wooden handle firmly. The flat-sided design provides a comfortable and stable grip.
- Application: Use for tasks such as scraping paint, removing caulk, cutting delicate materials, or reaching into tight spaces.
- Blade Adjustment: For different tasks, you can adjust the blade's exposed length by loosening the ferrule, repositioning the blade, and re-tightening.
- Safety: Always cut away from your body. Keep fingers clear of the blade path. When not in use, retract or remove the blade and store the handle safely.
4. Care and Maintenance
- Cleaning: After each use, wipe down the handle and metal parts with a clean, dry cloth to remove any debris, paint, or residue. Avoid harsh chemicals that may damage the wood or plating.
- Blade Replacement: Replace dull or damaged blades promptly to ensure safety and effectiveness. Refer to Section 2 for blade installation.
- Storage: Store the handle in a dry environment to prevent rust on metal components and preserve the wood. Consider removing the blade for long-term storage.
- Inspection: Periodically inspect the handle for any signs of wear, cracks in the wood, or damage to the metal jaws. Discontinue use if significant damage is observed.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Blade is loose or wobbles. | Ferrule not tightened sufficiently. Incorrect blade size. | Ensure the ferrule is twisted clockwise until the blade is firmly secured. Verify you are using a 5/16-inch or 3/8-inch blade. |
| Difficulty inserting/removing blade. | Jaws are too tight. Debris in the jaw mechanism. | Loosen the ferrule completely. Inspect the jaws for any obstructions and clean if necessary. |
| Handle feels uncomfortable or slippery. | Residue on the wood. | Clean the wooden handle with a dry or slightly damp cloth. Ensure hands are clean and dry during use. |
6. Product Specifications
| Model Number | 57660 |
| Brand | Hyde |
| Handle Material | Wood |
| Blade Compatibility | 5/16-inch and 3/8-inch utility blades |
| Overall Length | 4-3/4 inches |
| Product Dimensions | 4.75 x 1.5 x 1.5 inches |
| Item Weight | 1 pound |
| Manufacturer | Hyde Tools |
7. Warranty and Customer Support
For information regarding product warranty, returns, or technical support, please contact Hyde Tools directly or refer to their official website. Keep your purchase receipt as proof of purchase.
