Product Overview

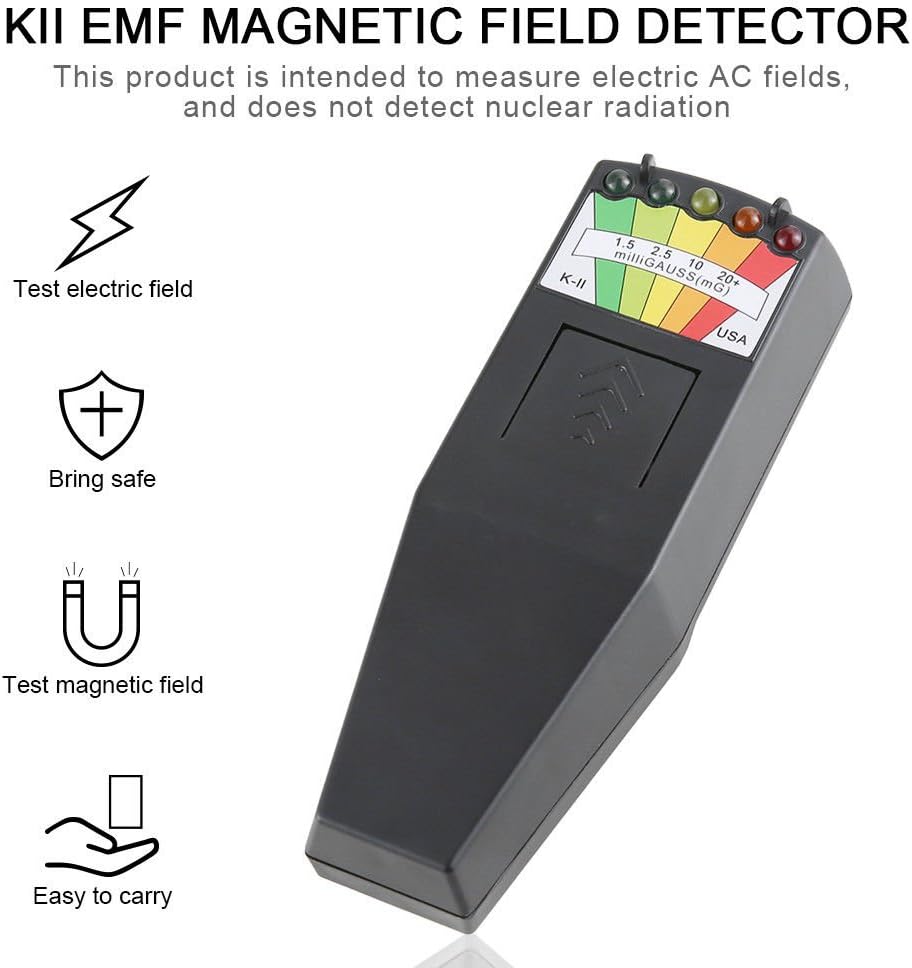

The K-II EMF Meter is a specialized device designed to measure electromagnetic fields (EMFs). These fields are naturally emitted by various electrical devices, wiring, and even the human body. This meter assists users in identifying appliances that produce high-level EMF emissions, enabling informed decisions regarding exposure. It operates on a single 9V battery and displays EMF measurements across five milliGauss ranges. Please note: This product is intended to measure electric fields and does not detect nuclear radiation.

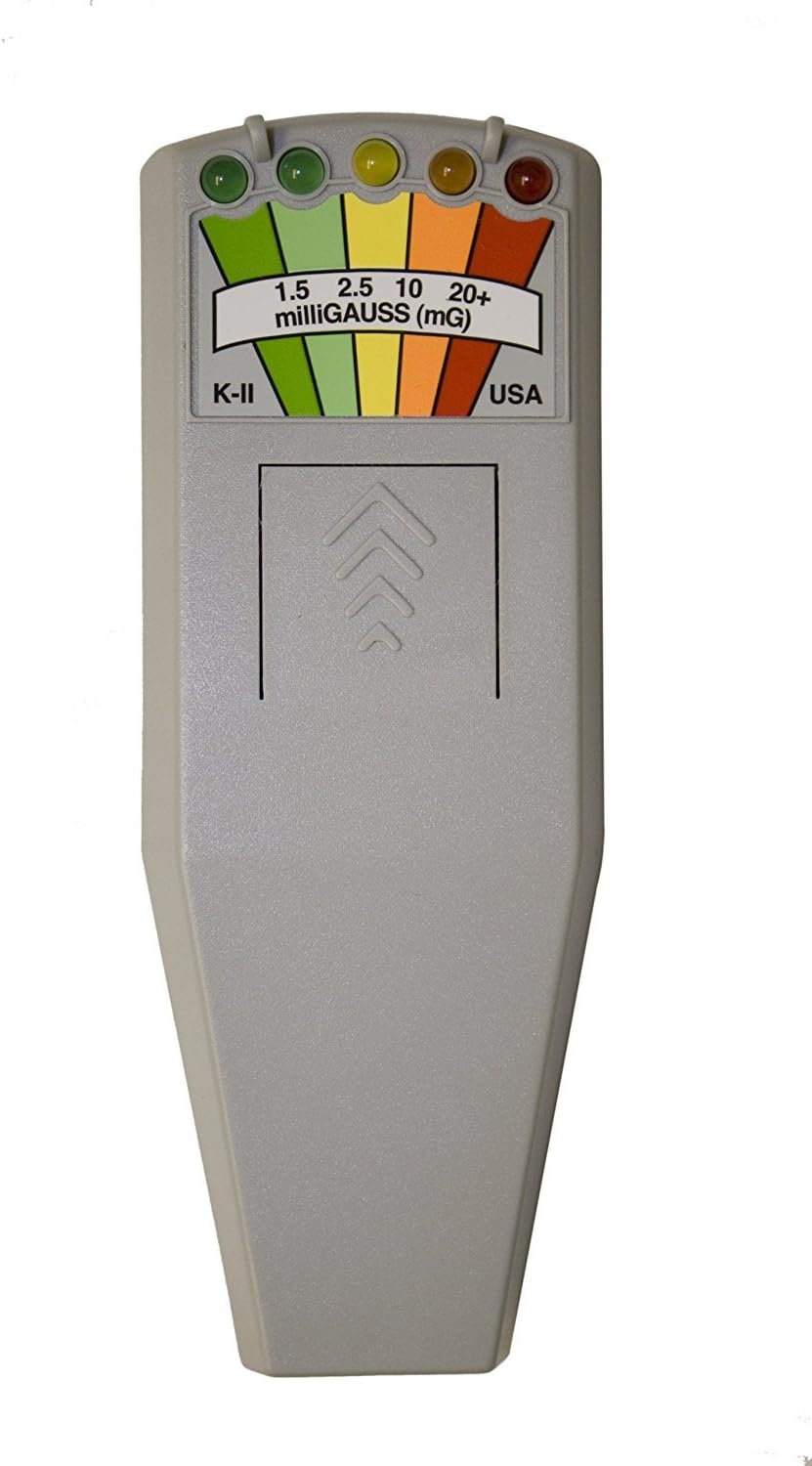

The K-II EMF Meter is a compact, handheld device designed to detect electromagnetic fields.
Key Features
- Instantaneous response to EMF fluctuations and spikes.
- Simple push-on/push-off operation for user convenience.
- Easy-to-read multi-segment LED display for clear readings.
- Accuracy of 5% at 50-60 Hz for reliable measurements.
- Detects ELF range (50 to 1,000 Hz) and VLF range (1,000 to 20,000 Hz).
The meter features a multi-segment LED display that indicates EMF strength across various milliGauss ranges, from normal to extremely high.
Setup and First Use
Battery Installation
The K-II EMF Meter requires one 9V battery for operation. A battery may be pre-installed, but it is recommended to check and replace if necessary for optimal performance.
- Locate the battery compartment cover on the back of the device.
- Carefully remove the cover.
- Insert a fresh 9V battery, ensuring correct polarity (+/-).
- Replace the battery compartment cover securely.
The K-II EMF Meter is designed for ease of use, featuring simple operation and a compact form factor.
Operating Instructions
Powering On/Off
The K-II EMF Meter features a simple push-button operation. To power on the device, press and hold the button located on the front. Release the button to power off the device.
Interpreting Readings

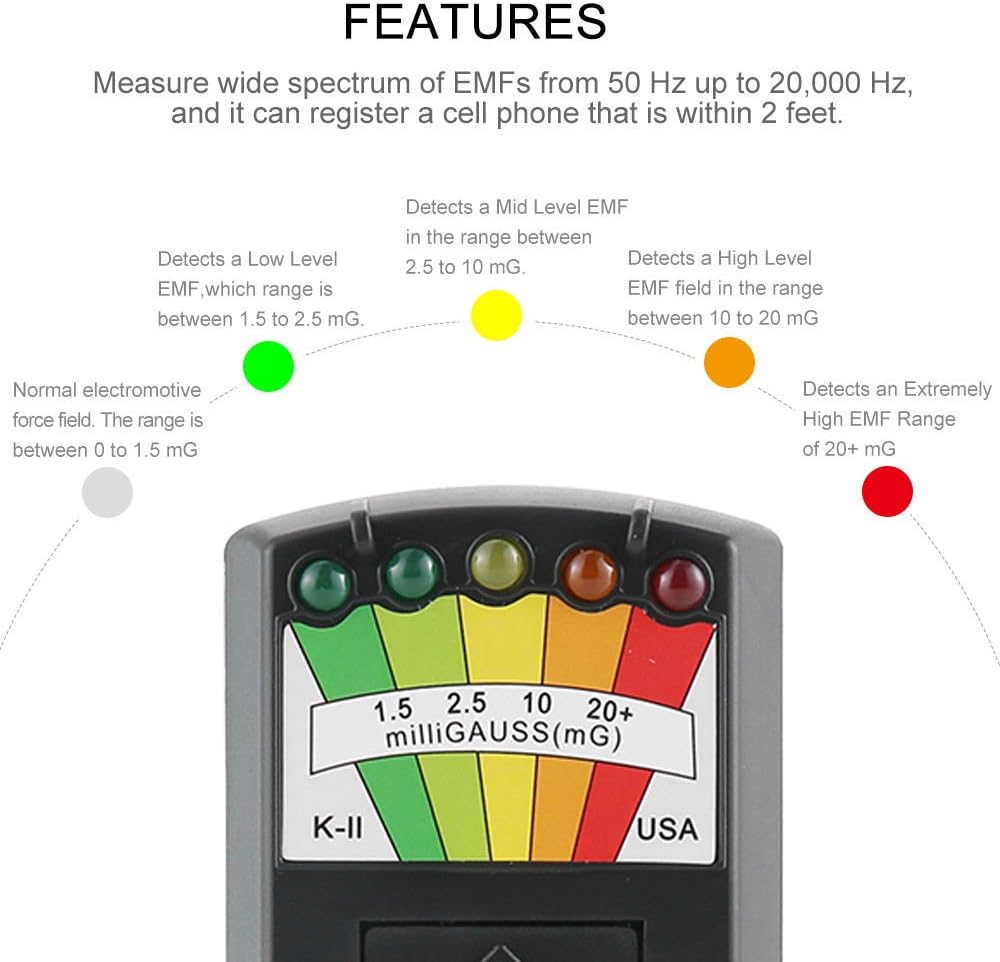

The meter uses a multi-segment LED display to indicate EMF strength in milliGauss (mG). Each LED color corresponds to a specific range:
- Green (Normal): 0 to 1.5 mG - Indicates a normal electromagnetic field.
- Light Green (Low Level): 1.5 to 2.5 mG - Detects a low level EMF.
- Yellow (Mid Level): 2.5 to 10 mG - Detects a mid level EMF.
- Orange (High Level): 10 to 20 mG - Detects a high level EMF.
- Red (Extremely High): 20+ mG - Detects an extremely high EMF range.
Move the meter slowly around the area or object you wish to test. Observe the LED lights to determine the strength of the EMF present.
The K-II EMF Meter can be used to measure EMF levels from common household appliances, helping identify potential sources of high emissions.
Care and Maintenance
- Cleaning: Wipe the device clean with a dry cloth. Do not use liquid cleaners or immerse the device in water.
- Battery Replacement: Replace the 9V battery when the LED indicators become dim or the device does not power on.
- Storage: Store the meter in a cool, dry place away from extreme temperatures and direct sunlight.
- Handling: Handle the device with care to avoid dropping or physical damage.
Troubleshooting
- Device does not power on:
- Ensure the 9V battery is correctly installed with proper polarity.
- Replace the battery with a fresh one.
- Inconsistent or no readings:
- Ensure the device is powered on.
- Move the meter closer to the suspected EMF source.
- Verify that the battery has sufficient charge.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | K-II |
| Model Name | K-II-DELUX |
| Product Dimensions | 5.51 x 1.97 x 0.98 inches |
| Item Weight | 4.6 ounces |
| Power Source | Battery Powered (1 x 9V battery required) |
| Display Type | LED |
| Response Time | 0.5 seconds |
| Detection Range | ELF (50-1,000 Hz) & VLF (1,000-20,000 Hz) |
| Material | Plastic |
| Color | Gray |
The compact design of the K-II EMF Meter makes it easy to handle and transport, with precise dimensions as shown.
Important Safety Information
WARNING:
- This product is intended to measure electric fields and does not detect nuclear radiation.
- Do not attempt to open or modify the device.
- Keep out of reach of small children.
Warranty and Support
For warranty information and customer support, please refer to the manufacturer's official website or contact the retailer where the product was purchased. Keep your proof of purchase for any warranty claims.
