Standard Motor Products RY-539 Relay Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Standard Motor Products RY-539 Relay. The RY-539 is an automotive electrical relay designed to control higher current circuits using a lower current signal. Please read this manual thoroughly before installation and use.

2. Product Specifications

3. Installation and Setup

The RY-539 Relay is designed for specific automotive applications. Proper installation requires knowledge of automotive electrical systems. If you are unsure about the installation process, it is recommended to consult a qualified automotive technician.

3.1 General Installation Guidelines

• Safety First: Always disconnect the vehicle's battery before performing any electrical work to prevent short circuits or electrical shock.
• Identify Correct Location: Refer to your vehicle's service manual to locate the correct relay position. Relays are often found in fuse boxes or dedicated relay centers.
• Match Connector Type: Ensure the relay's connector type (e.g., Screw, as specified for RY-539) matches the vehicle's wiring harness.
• Secure Mounting: Mount the relay securely to prevent vibration damage. The RY-539 specifies a DIN Rail Mount, which may indicate its use in certain control panels or specialized automotive systems.
• Verify Connections: Double-check all electrical connections for proper polarity and secure fitment before reconnecting the battery.

Figure 1: Front view of the Standard Motor Products RY-539 Relay, showing its rectangular black housing and a wire with a terminal extending from the side. This image illustrates the overall physical appearance of the relay.

Figure 2: Side view of the Standard Motor Products RY-539 Relay, highlighting the attached wire with a ring terminal. This terminal is typically used for ground or power connections.

Figure 3: Bottom view of the Standard Motor Products RY-539 Relay, displaying the multi-pin electrical connector. These pins interface with the vehicle's wiring harness to control the relay's function.

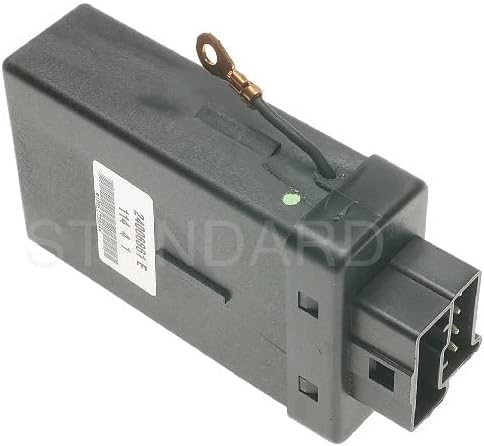

Figure 4: Angled view of the Standard Motor Products RY-539 Relay, showing a product label with identification numbers. This perspective provides a comprehensive view of the relay's housing and connector.

4. Operation

The RY-539 is a Normally Open (NO) relay, meaning that its internal contacts are open (no electrical connection) when the relay coil is de-energized. When a control voltage is applied to the relay coil, it creates an electromagnetic field that closes the contacts, allowing current to flow through the controlled circuit.

This type of relay is commonly used in automotive applications to switch high-current devices (like starter motors, fuel pumps, or headlights) using a low-current signal from a switch or electronic control unit (ECU).

5. Maintenance

Automotive relays like the RY-539 are generally maintenance-free. However, regular inspection of the surrounding electrical connections can help ensure longevity and reliable operation.

• Visual Inspection: Periodically check the relay and its connector for signs of corrosion, melting, or physical damage.
• Connection Integrity: Ensure all wires connected to the relay are secure and free from fraying or insulation damage.
• Environmental Factors: Keep the relay area clean and dry to prevent moisture or dirt from affecting its performance.

6. Troubleshooting

If the circuit controlled by the RY-539 Relay is not functioning correctly, consider the following troubleshooting steps:

1. No Click Sound: If the relay does not produce an audible "click" when the control signal is applied, check the control circuit for power and ground. The relay coil may not be receiving power.
2. Click, But No Power: If the relay clicks but the controlled device does not receive power, the relay contacts may be faulty or corroded. Also, check the power supply and ground connections for the controlled circuit.
3. Intermittent Operation: This could indicate loose connections, a failing relay, or intermittent power supply issues to either the control circuit or the main power circuit.
4. Overheating: An overheating relay can indicate an excessive current draw in the controlled circuit or a faulty relay. Investigate the load and replace the relay if necessary.

Always consult a vehicle-specific wiring diagram for accurate diagnosis.

7. Warranty and Support

Specific warranty details for the Standard Motor Products RY-539 Relay are not provided within this document. For warranty information, technical support, or further assistance, please contact Standard Motor Products directly or refer to their official website.

Standard Motor Products Contact Information: Please visit www.smpcorp.com for the most current support resources.
