HPI Racing Washer 4X8X1.2mm (12pcs) Z823 Instruction Manual

Introduction

This manual provides essential information for the proper use and understanding of the HPI Racing Washer 4X8X1.2mm (12pcs) Z823. These flat washers are designed for various applications requiring spacing, load distribution, or vibration reduction in mechanical assemblies, particularly within remote-controlled (RC) vehicles and other precision equipment.

Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of the product.

Product Overview

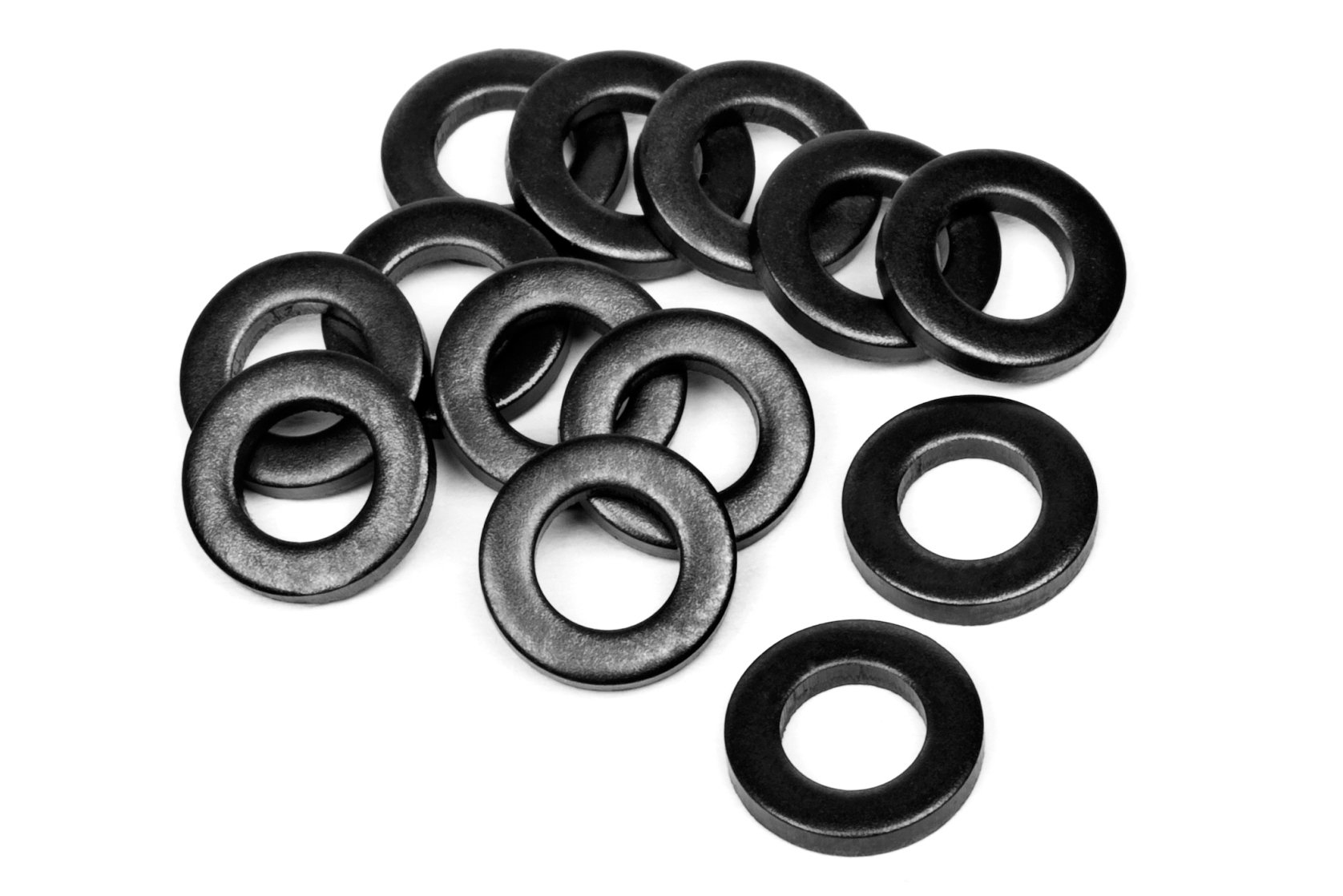

Image: HPI Racing Washer 4X8X1.2mm (12pcs) Z823. This image displays a package containing multiple small, metallic flat washers, indicating their size and quantity.

The HPI Racing Washer 4X8X1.2mm (12pcs) Z823 is a set of twelve flat washers. Each washer has an inner diameter of 4mm, an outer diameter of 8mm, and a thickness of 1.2mm. These dimensions are critical for ensuring proper fit and function in specific applications.

Setup and Installation

Washers are passive components and do not require complex setup. Proper installation involves selecting the correct size and material for the application.

1. Selection: Ensure the 4x8x1.2mm dimensions are appropriate for your specific fastener (e.g., screw, bolt) and the components being joined. The inner diameter (4mm) should match or be slightly larger than the fastener's shank diameter.
2. Placement: Place the washer between the fastener's head (or nut) and the surface of the material being fastened. This helps distribute the load, prevent damage to the surface, and can provide a smoother bearing surface for rotation.
3. Tightening: Tighten the fastener according to the manufacturer's specifications for the assembly. Avoid over-tightening, which can deform the washer or the components.

These washers are commonly used in RC vehicles to space components, reduce friction, or provide a consistent bearing surface for rotating parts.

Operating Principles

Washers do not "operate" in the traditional sense but perform critical functions within an assembly:

• Load Distribution: Spreads the load from a fastener's head or nut over a larger area, reducing the risk of damage to the fastened material.
• Spacing: Used to create a specific distance between components.
• Surface Protection: Prevents the fastener from digging into or marring the surface of the component.
• Vibration Isolation/Damping: Can help reduce the effects of vibration, especially when used with specific materials or in conjunction with other types of washers (e.g., lock washers, though these are flat washers).

Maintenance

HPI Racing Washers are durable components and require minimal maintenance. However, regular inspection is recommended, especially in high-stress or high-vibration applications.

• Inspection: Periodically check installed washers for signs of wear, deformation, corrosion, or cracking.
• Replacement: If a washer shows any signs of damage or excessive wear, replace it immediately with a new washer of the correct specifications (4x8x1.2mm).
• Cleaning: If removed for maintenance of other components, clean the washers to remove any dirt, grease, or debris before reinstallation.

Troubleshooting

As simple mechanical components, washers typically do not "malfunction." Issues usually arise from incorrect selection or installation.

• Loose Fastener: If a fastener becomes loose, ensure the washer is correctly seated and the fastener is tightened to the appropriate torque. Consider if a lock washer is also required for the application.
• Component Damage: If the material under the washer is being damaged, verify that the washer's outer diameter is sufficient to distribute the load effectively. Ensure the washer material is compatible with the application's stress and environmental conditions.
• Incorrect Fit: If the washer does not fit over the fastener or into the intended space, double-check the dimensions (4mm inner diameter, 8mm outer diameter, 1.2mm thickness) against your requirements.

Specifications

Warranty Information

Specific warranty details for the HPI Racing Washer 4X8X1.2mm (12pcs) Z823 are not provided in the product information. For warranty inquiries, please refer to the official HPI Racing website or contact their customer support directly.

Customer Support

For further assistance, technical support, or questions regarding the HPI Racing Washer 4X8X1.2mm (12pcs) Z823, please visit the official HPI Racing website or contact their customer service department. Contact information is typically available on the manufacturer's official channels.
