Introduction

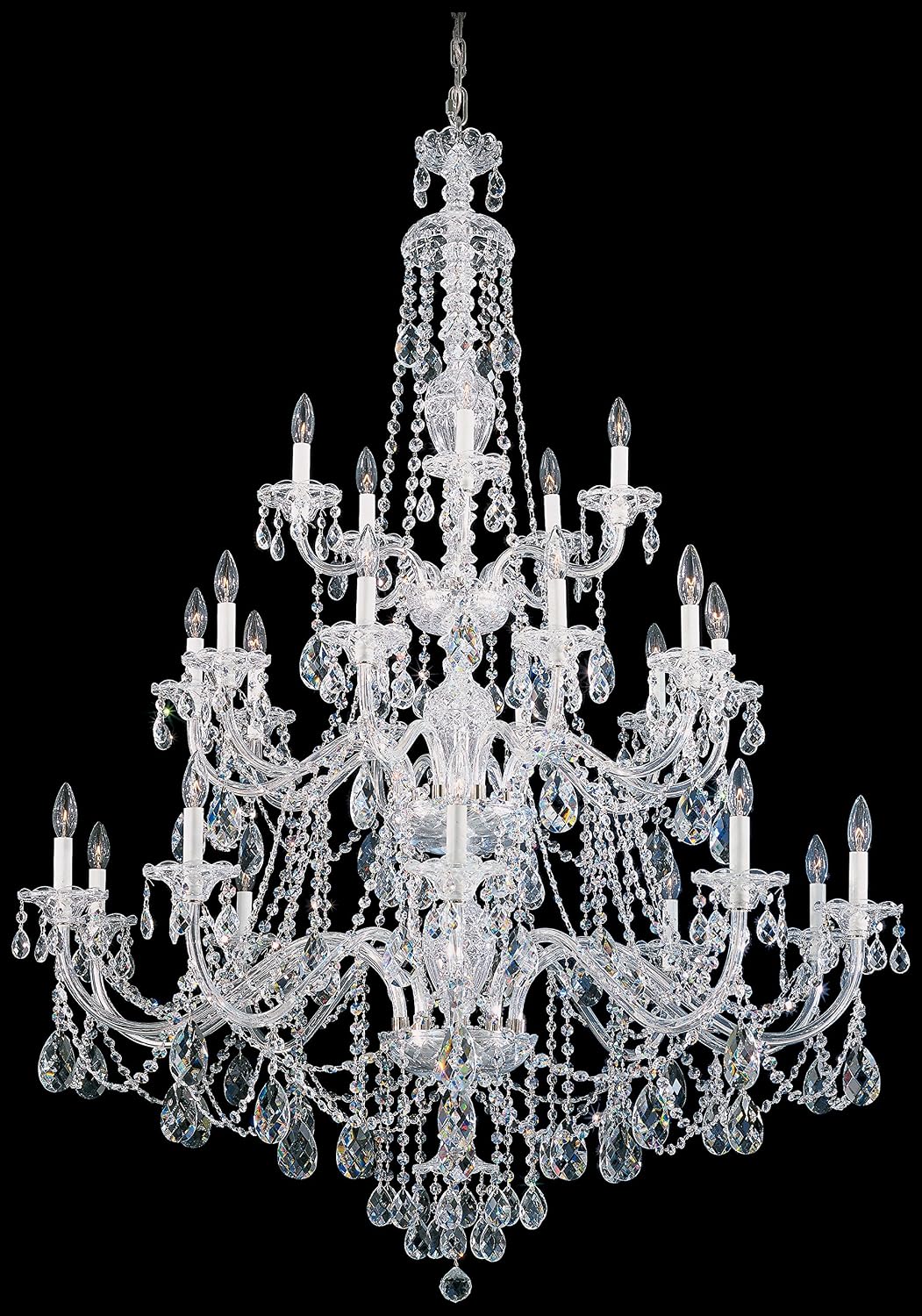

This manual provides essential instructions for the safe installation, operation, and maintenance of your Schonbek Sterling 3610-40H Chandelier. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Safety Information
- Always disconnect power at the main fuse or circuit breaker before installation or maintenance.
- Installation must be performed by a qualified electrician in accordance with all local electrical codes.
- Ensure the electrical box is rated for at least 70 lbs (31.75 kg) to support the fixture's weight.
- Do not exceed the maximum wattage specified for light bulbs.
- Handle crystal components with care to prevent breakage.
- This fixture is designed for indoor use only.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Package Contents
Verify that all components are present before beginning installation:
- Lighting Fixture (Chandelier body with glass frame and crystal bobeches)
- Crystal Beads, Pendeloques, Drops, Pears, and Crystal Ball Finial
- Mounting Hardware
- 80 inches (203 cm) of Chain (matching finish)
- Canopy
- Instruction Sheets
- Certificate of Authenticity
- Manufacturer Warranty Certificate
Setup and Installation
Tools Required: Screwdriver, wire strippers, electrical tape, ladder, safety glasses.
- Prepare for Installation:
- Turn off power at the circuit breaker or fuse box.
- Carefully unpack all components and inspect for any damage.
- Ensure the electrical junction box is securely mounted and rated for the fixture's weight (70 lbs / 31.75 kg).
- Mounting the Canopy and Chain:
- Attach the mounting hardware to the electrical box.
- Determine the desired hanging height for the chandelier. The fixture includes 80 inches of chain, which can be shortened. Additional chain can be purchased separately if needed.
- Thread the electrical wires through the chain and canopy.
- Secure the chain to the canopy and the mounting hardware.
- The fixture can be installed on a sloped ceiling up to a 45-degree angle.
- Electrical Connections:
- Connect the fixture's wires to the household electrical wires according to local codes (typically black to black, white to white, ground to ground).
- Ensure all connections are secure with wire nuts and electrical tape.
- The fixture includes 240 inches of total wire for a maximum suspension up to 305.5 inches with additional chain.
- Attaching the Chandelier Body:
- Carefully lift the chandelier body and attach it to the chain/canopy assembly.
- Dressing with Crystals:
- Following the included instruction sheets, attach the crystal beads, pendeloques, drops, pears, and the crystal ball finial to the chandelier frame.
- Handle crystals by their metal pins or clips to avoid fingerprints.
- Installing Light Bulbs:
- This fixture requires 25 x E12 base, B10 shape, 120V light bulbs (60W maximum incandescent or LED equivalent). Bulbs are sold separately.
- Gently screw each bulb into its socket. Do not overtighten.
Operating Instructions
- Once installation is complete and power is restored, operate the chandelier using a standard wall switch.
- The fixture is compatible with smooth and continuous dimming using a compatible dimmer switch (sold separately).
- While the product specifications mention 'Touch' control, this typically refers to a compatible wall dimmer switch, not direct touch interaction with the fixture itself.
Maintenance
- Cleaning:
- Turn off power before cleaning.
- Dust the metal frame with a soft, dry cloth.
- Clean crystal components with a soft, lint-free cloth dampened with distilled water or a specialized crystal cleaner. Avoid abrasive cleaners.
- Do not spray cleaner directly onto the fixture; spray onto the cloth first.
- Bulb Replacement:
- Ensure power is off and bulbs have cooled before attempting to replace them.
- Unscrew the old bulb and replace with a new E12 base, B10 shape, 120V bulb (60W max incandescent or LED equivalent).
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fixture does not light up. | No power, loose wiring, faulty bulb. | Check circuit breaker/fuse. Verify wire connections. Replace bulbs. |
| Lights flicker. | Loose bulb, incompatible dimmer, unstable power. | Tighten bulbs. Ensure dimmer is compatible with LED/incandescent. Consult electrician for power issues. |
| Crystals appear dull. | Dust or residue buildup. | Clean crystals as per maintenance instructions. |
Specifications
- Model: Sterling 3610-40H
- Brand: Schonbek
- Dimensions: 45"L x 45"W x 61"H (114.3 cm L x 114.3 cm W x 154.9 cm H)
- Weight: 70 Pounds (31.75 kg)
- Material: Glass frame, Crystal bobeches, Crystal embellishments
- Finish: Powder Coated (Silver)
- Crystal Type: Clear Heritage Handcut Crystals
- Number of Light Sources: 25
- Bulb Base: E12
- Bulb Shape: B10
- Voltage: 120 Volts
- Max Wattage per Bulb: 60W (Incandescent or LED equivalent)
- Total Max Wattage: 1500 Watts
- Light Source Type: LED (compatible)
- Brightness: 10500 Lumens (total)
- Color Temperature: 3000 Kelvin
- Power Source: AC
- Mounting Type: Single Circuit, Chain suspended
- Chain Length: 80 inches (included)
- Total Wire Length: 240 inches
- Slope Ceiling Compatible: Up to 45 degrees
- Indoor/Outdoor Usage: Indoor only
- Standards: UL, cUL, CSA rated for indoor locations
- Assembly Required: Yes
- UPC: 771857020847
Warranty and Support
Warranty: This product comes with a 5-year manufacturer's warranty.
For technical support, replacement parts, or warranty claims, please contact Schonbek customer service. Refer to the contact information provided in your Certificate of Authenticity or visit the official Schonbek website.
Manufacturer: Schonbek
