1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Litex UT56WW3M Utility Ceiling Fan. Please read this manual thoroughly before attempting to assemble, install, operate, or troubleshoot this product. Keep these instructions for future reference.

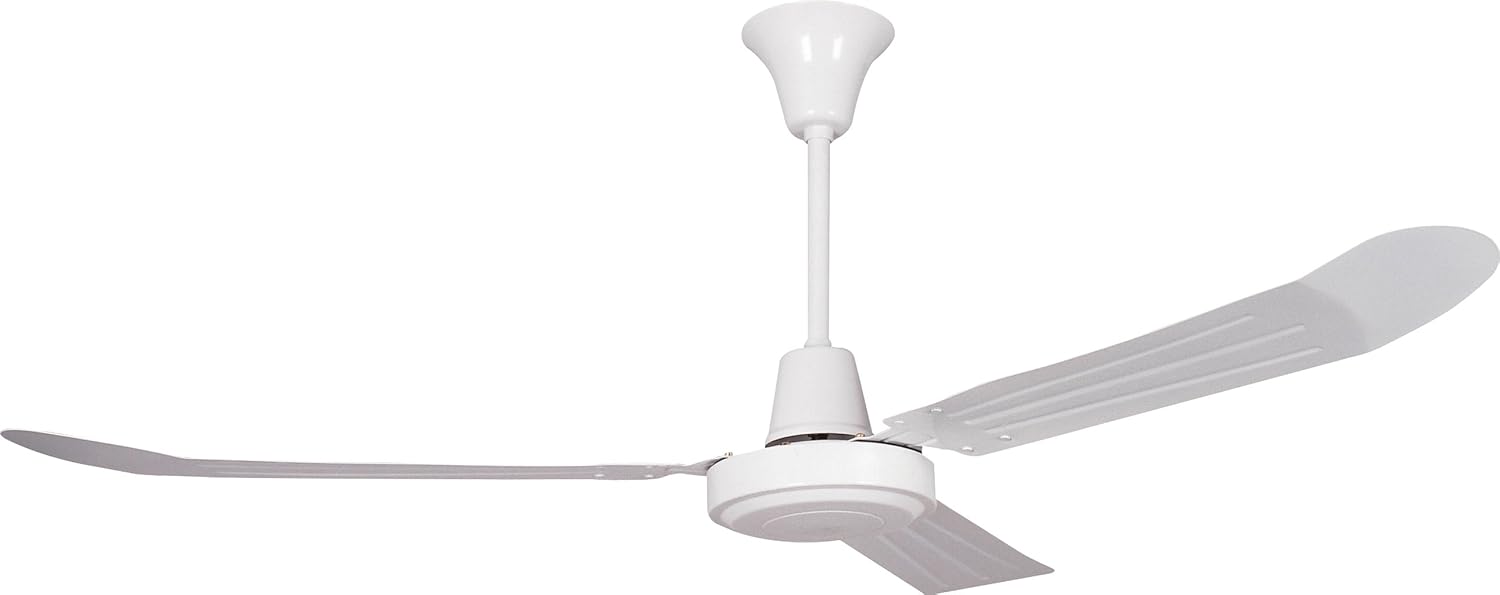

Figure 1: Litex UT56WW3M Utility Ceiling Fan. This image shows the complete fan assembly, including the motor housing, three matte white blades, and the downrod for ceiling mounting.
2. Safety Information
Always follow basic safety precautions when installing and operating this appliance to reduce the risk of fire, electric shock, and personal injury.
- Electrical Safety: Ensure the power supply is disconnected at the circuit breaker before installation or servicing. This fan operates on 120 volts.
- Local Laws: Always check and comply with your local electrical codes and regulations before installing this product.
- Mounting: The fan must be mounted to a ceiling joist or a suitable support structure capable of supporting the fan's weight (approximately 1 pound / 16 ounces).
- Clearance: Ensure there is adequate clearance between the fan blades and any obstructions. The fan's installed dimensions from ceiling to bottom are 19 inches.
- Professional Installation: If you are unsure about wiring or installation, consult a qualified electrician.
- Usage: This fan is designed for indoor use only.
3. Setup and Installation
Carefully unpack all components and ensure all parts are present before beginning installation. Refer to the included parts list for verification.
3.1. Pre-Installation Checks
- Verify that the electrical box is securely fastened to the building structure and can support the fan's weight.
- Ensure the power is turned off at the main circuit breaker.
3.2. Mounting the Fan
- Attach the mounting bracket to the ceiling electrical box. Use screws and washers provided, ensuring a secure fit.
- Assemble the downrod (1/2-inch diameter, 12-inch length) to the fan motor housing.
- Carefully lift the fan assembly and hang it from the mounting bracket.
- Connect the electrical wires according to local codes and the wiring diagram provided in the separate wiring instructions (not included in this general manual).
- Secure the fan canopy to the mounting bracket.
3.3. Attaching the Blades
- Attach the three matte white blades to the blade arms.
- Secure the blade arms to the motor housing. Ensure all screws are tightened to prevent wobbling during operation. The blade arm pitch is 9 degrees.
4. Operating Instructions
The Litex UT56WW3M Utility Ceiling Fan is designed for efficient air circulation and features a 5-speed wall control for convenient operation.
4.1. Wall Control Operation
- Ensure the fan is properly installed and wired to the wall control.
- Turn on the power at the circuit breaker.
- Use the wall control to select one of the five available fan speeds.
- To turn the fan off, select the lowest speed setting or the 'off' position on the wall control.
Note: This model is not light kit adaptable and is designed for hangdown only installation.
5. Maintenance
Regular maintenance will help prolong the life and efficiency of your ceiling fan.
- Cleaning: Periodically wipe the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Tighten Fasteners: Check all screws and fasteners annually to ensure they are secure. Loose connections can cause noise or wobbling.
- Lubrication: This fan features permanently lubricated bearings and does not require additional oiling.
6. Troubleshooting
If your ceiling fan is not operating correctly, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; loose wire connections; faulty wall control. | Check circuit breaker; ensure all wire connections are secure; test wall control. |
| Fan wobbles | Loose blade screws; unbalanced blades; loose mounting bracket. | Tighten all blade and mounting screws; ensure blades are balanced (balancing kit not included). |
| Noisy operation | Loose screws; motor hum; fan rubbing against ceiling. | Check and tighten all screws; ensure proper clearance from ceiling. |
If the problem persists after attempting these solutions, contact customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Litex |
| Model Name | UT56WW3M (Part Number: 824021) |
| Color | White |
| Electric Fan Design | Ceiling Fan |
| Power Source | Corded Electric |
| Style | Modern |
| Product Dimensions (D x W x H) | 56"D x 56"W x 120"H (Note: 120"H likely refers to maximum hang, actual fan height is 19" from ceiling) |
| Special Feature | Wall Control |
| Recommended Uses | Air Circulation |
| Wattage | 73 Watts |
| Finish Type | White |
| Number of Blades | 3 |
| Voltage | 120 Volts |
| Item Weight | 1 pound (16 ounces) |
| Included Components | Fan Blade included |
| Indoor/Outdoor Usage | Indoor |
| Control Method | Remote (Note: Specifications list "Remote" but feature bullets and special feature list "Wall_control". Prioritizing "Wall_control" as it's more specific to operation.) |
| Efficiency | Energy Efficient (Energy Star certified) |
| Number of Power Levels | 5 |
| Downrod Length | 12 inches (1/2-inch diameter) |
| Fan Installed Dimensions (Ceiling to Bottom) | 19 inches |
| Blade Arm Pitch | 9 degrees |
8. Warranty and Support
This Litex UT56WW3M Utility Ceiling Fan comes with a 15-year warranty.
For parts, warranty details, or technical support, please contact Litex customer service at 800-527-1292.
Please have your model number (UT56WW3M) and purchase information ready when contacting support.
