Voigtländer Nokton 35mm F1.4 MC Lens M Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the proper use, care, and maintenance of your Voigtländer Nokton 35mm F1.4 MC Lens M. Designed for high-quality imaging, this compact and fast lens offers exceptional performance for various photographic applications. Please read this manual thoroughly before using the lens to ensure optimal results and longevity.

2. Product Overview

The Voigtländer Nokton 35mm F1.4 MC Lens M is a multi-coated, manual focus lens known for its wide aperture and compact design. It is engineered to deliver saturated colors and high contrast, making it suitable for both color and black-and-white photography.

Key Features:

• Focal Length: 35 mm
• Maximum Aperture: F1.4
• Optical Construction: 8 elements in 6 groups
• Minimum Focus Distance: 0.7 m
• Maximum Diameter: 55 mm
• Length: 55 mm
• Weight: Approximately 200 g (0.44 lbs)
• Lens Mount: Leica M
• Coating: Multi-Coated (MC) for enhanced color and contrast

Lens Components:

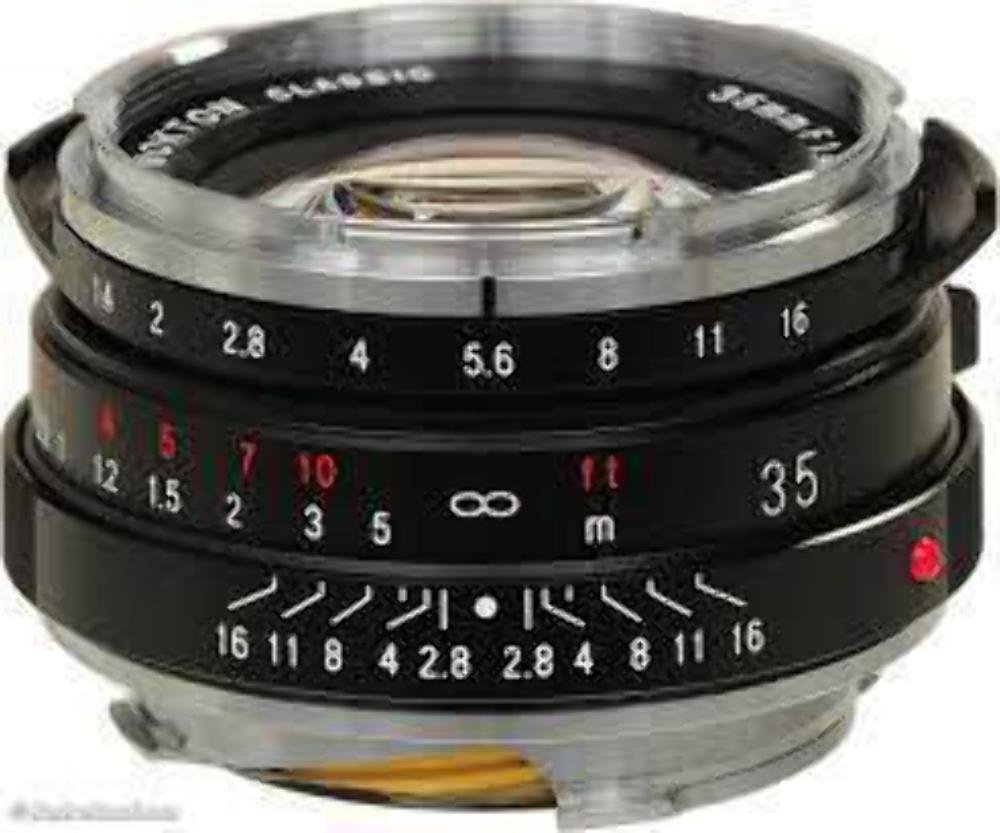

Image of the Voigtländer Nokton 35mm F1.4 MC Lens M, illustrating the lens barrel, focus ring, and aperture ring.

• Front Element: The outermost glass element at the front of the lens.
• Focus Ring: Used to manually adjust the focus distance.
• Aperture Ring: Used to select the desired aperture (f-stop).
• Lens Mount: The part of the lens that attaches to the camera body.
• Rear Element: The outermost glass element at the rear of the lens.

3. Setup

Mounting the Lens:

1. Ensure your camera is turned off before attaching or detaching the lens.
2. Remove the rear lens cap and the camera body cap.
3. Align the red dot (or corresponding mark) on the lens mount with the matching mark on your camera body's lens mount.
4. Gently insert the lens into the camera mount.
5. Rotate the lens clockwise (for Leica M mount) until it clicks into place, indicating it is securely locked.

This lens is designed for Leica M mount cameras. It can also be used with other camera systems, such as Sony E-mount, with an appropriate M-mount to E-mount adapter (sold separately).

4. Operating the Lens

Manual Focus:

The Nokton 35mm F1.4 MC is a manual focus lens. To achieve sharp focus:

1. Look through your camera's viewfinder or use the LCD screen.
2. Rotate the focus ring on the lens until your subject appears sharp.
3. Utilize your camera's focus assist features, such as focus peaking or magnification, for precise focusing, especially at wider apertures.

The lens has a minimum focus distance of 0.7 meters (approximately 2.3 feet).

Aperture Adjustment:

The aperture controls the amount of light entering the lens and the depth of field.

1. Rotate the aperture ring, located near the front of the lens, to select your desired f-stop.
2. The lens features a maximum aperture of F1.4 (allowing more light and shallower depth of field) and a minimum aperture of F16 (allowing less light and greater depth of field).
3. The aperture ring provides distinct clicks at half and full stops for precise control over exposure and depth of field.

5. Maintenance and Care

Proper maintenance ensures the longevity and optimal performance of your lens.

• Protection: Always keep the front and rear lens caps on when the lens is not in use to protect the glass elements from dust, scratches, and impacts.
• Cleaning Lens Elements: Use a soft, lint-free microfiber cloth specifically designed for optical surfaces. For stubborn smudges, apply a small amount of lens cleaning solution to the cloth (not directly to the lens) and gently wipe in a circular motion from the center outwards. Avoid touching the glass surfaces with your fingers.
• Cleaning Lens Body: Wipe the lens barrel with a clean, dry cloth. Do not use harsh chemicals or solvents.
• Storage: Store the lens in a dry, cool place, away from direct sunlight, high humidity, and extreme temperatures. Consider using a desiccant packet in your camera bag or storage area to prevent mold growth.
• Water Resistance: This lens is not water resistant. Avoid exposure to rain, splashes, or high humidity.

6. Troubleshooting

Common Issues and Solutions:

• Image Distortion or Softness:
  Solution: Ensure the lens is securely mounted to the camera body. For optimal sharpness, especially at wider apertures (F1.4-F2.8), precise manual focusing is crucial. Some slight field curvature may be observed at large apertures, which is characteristic of certain lens designs.
• Excessive Lens Flare:
  Solution: This lens may exhibit flare when shooting directly into strong light sources. Using a compatible lens hood (sold separately) can significantly reduce unwanted flare and improve contrast.
• Difficulty Achieving Focus:
  Solution: Ensure your camera's focus assist features (e.g., focus peaking, magnification) are enabled and properly utilized. Practice manual focusing techniques to improve accuracy. Check if the lens elements are clean.
• Lens Not Mounting Securely:
  Solution: Verify that there are no obstructions on the lens mount or the camera body mount. Ensure correct alignment of the mounting marks before rotating the lens to lock it into place. Do not force the lens.
• Dust or Spots on Images:
  Solution: Inspect the front and rear lens elements for dust or smudges. Clean them carefully as described in the Maintenance section. Also, check your camera's sensor for dust.

7. Technical Specifications

8. Warranty and Support

Warranty Information:

This Voigtländer product is covered by a manufacturer's warranty of 1 year from the date of purchase. Please retain your original proof of purchase (receipt or invoice) as it will be required for any warranty claims. The warranty covers manufacturing defects but typically excludes damage caused by misuse, accident, unauthorized repair, or normal wear and tear.

Customer Support:

For further assistance, technical support, or inquiries regarding warranty service, please contact your authorized Voigtländer dealer or distributor. You may also visit the official Voigtländer website for additional resources and contact information.
