Dometic WAECO PowerVac PV 100 Cordless Wet/Dry Vacuum Cleaner User Manual

Introduction

Thank you for choosing the Dometic WAECO PowerVac PV 100. This battery-powered wet/dry vacuum cleaner is designed for versatile cleaning tasks, offering high cleaning power for stubborn dirt and liquid spills. Its compact design makes it easy to store and use in various locations, whether on the go or at home.

Please read this manual carefully before operating the device to ensure safe and efficient use. Keep this manual for future reference.

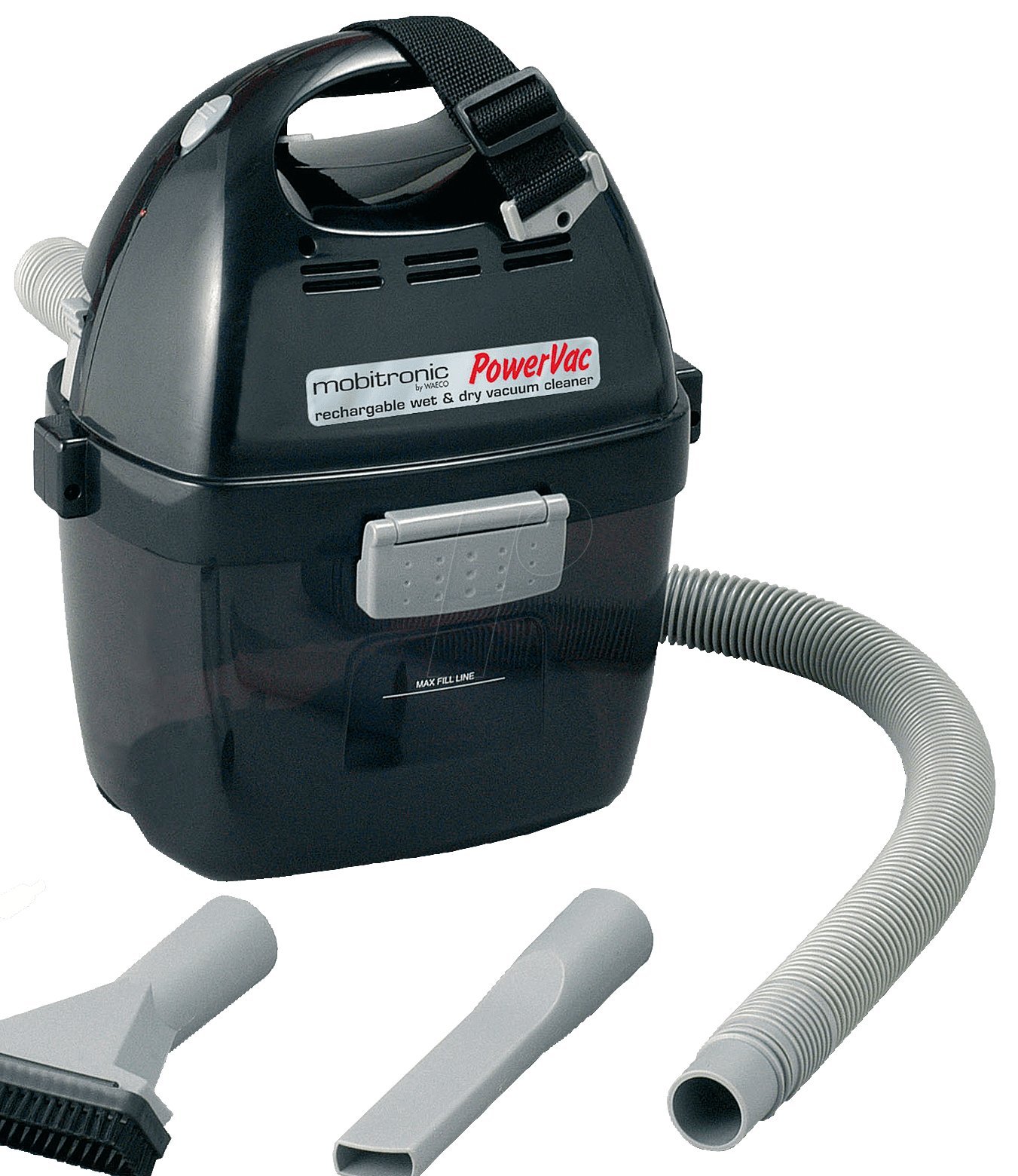

Figure 1: Dometic WAECO PowerVac PV 100 Cordless Wet/Dry Vacuum Cleaner. This image shows the compact, portable vacuum cleaner with its main body and attachments.

Important Safety Instructions

• Read all instructions before use.
• Do not operate the vacuum cleaner without the filter properly installed.
• Do not vacuum flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not handle the charger or appliance with wet hands.
• Do not immerse the appliance in water or other liquids.
• Always turn off the appliance before connecting or disconnecting the charger.
• Store the appliance indoors in a dry place.

What's Included

The Dometic WAECO PowerVac PV 100 package includes the following components:

• WAECO PowerVac PV 100 Vacuum Cleaner Unit
• Flexible Hose
• Upholstery Tool
• Crevice Tool (for tight corners and narrow spaces)
• Charging Cable
• Adapter (for charging)
• Polyester Filter

Setup

1. Initial Charging

1. Before first use, fully charge the battery. Connect the charging cable to the adapter, and then plug the adapter into a suitable power outlet.
2. Connect the charging cable to the charging port on the vacuum cleaner.
3. Allow the unit to charge until the charging indicator light (if present) indicates a full charge. This typically takes several hours.

2. Filter Installation

1. Ensure the vacuum cleaner is turned off.
2. Open the dust container according to the instructions in the maintenance section.
3. Insert the polyester filter securely into its designated position. Ensure it is properly seated to prevent dust from entering the motor.
4. Close the dust container until it clicks into place.

3. Attaching Accessories

Select the appropriate attachment for your cleaning task:

• Flexible Hose: Connect the hose to the suction inlet for extended reach.
• Upholstery Tool: Attach to the hose or directly to the suction inlet for cleaning fabric surfaces.
• Crevice Tool: Attach to the hose or directly to the suction inlet for reaching narrow gaps and corners.

Operating Instructions

1. Powering On/Off

• To turn on the vacuum cleaner, press the power button located on the unit.
• To turn off the vacuum cleaner, press the power button again.

2. Dry Vacuuming

• Ensure the polyester filter is clean and correctly installed.
• Select the appropriate attachment for the surface you are cleaning.
• Turn on the vacuum cleaner and move the nozzle over the area to be cleaned.
• Empty the dust container regularly to maintain optimal suction power.

3. Wet Vacuuming (Liquid Spills)

• For wet vacuuming, ensure the polyester filter is removed or replaced with a suitable wet filter (if available and recommended by the manufacturer). The provided polyester filter is generally suitable for both wet and dry, but check for saturation.
• Do not vacuum large quantities of liquid that could overflow the dust container. The capacity is 1.5 liters.
• After vacuuming liquids, empty the container immediately and clean it thoroughly to prevent odors and mold growth.
• Allow all components to air dry completely before reassembling.

4. Battery Runtime

A fully charged battery provides approximately 18 minutes of continuous operation. Actual runtime may vary based on usage and battery condition.

Maintenance

1. Emptying the Dust Container

1. Turn off the vacuum cleaner.
2. Locate the release latches or buttons for the dust container.
3. Detach the dust container from the main unit.
4. Empty the contents into a waste bin.

2. Cleaning the Filter

1. Remove the filter from the dust container.
2. For dry debris, gently tap the filter to dislodge dust. You can also use a soft brush.
3. For thorough cleaning, the polyester filter can be rinsed under running water. Ensure the filter is completely dry before reinserting it into the vacuum cleaner. Do not use the vacuum cleaner with a wet filter.

3. Cleaning the Unit

• Wipe the exterior of the vacuum cleaner with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Ensure no water enters the electrical components.

4. Storage

Store the Dometic WAECO PowerVac PV 100 in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the battery is partially charged before long-term storage.

Troubleshooting

Technical Specifications

Warranty and Support

Manufacturer's Warranty

The Dometic WAECO PowerVac PV 100 comes with a 2-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Customer Support

For technical assistance, spare parts, or warranty inquiries, please contact Dometic customer support. Refer to the Dometic official website or your purchase documentation for contact details specific to your region.

Note: Product specifications are subject to change without notice.
