1. Introduction
The NDS 8, 4.5-Inch Square Grate is designed to prevent leaves and debris from entering and potentially clogging your drainage pipeline. This grate is suitable for managing light flows of stormwater in various outdoor settings, including small lawns, landscaped areas, walkways, and patios. It is constructed from durable polyethylene plastic, treated with UV inhibitors to resist fading and cracking, ensuring long-term performance.
2. Product Features
- Debris Prevention: Effectively blocks leaves and other debris from entering and clogging drainage systems.
- Versatile Application: Ideal for small lawns, landscaped areas, patios, and walkways.
- Broad Compatibility: Connects to 4-inch sewer and drain pipes and fittings, 4-inch single-wall corrugated pipes, and 4-inch triple-wall pipes.
- Secure Fit: Designed for a soil-tight fit when placed on top of a drain pipe or fitting.
- High Flow Rate: Features a 32 GPM (Gallons Per Minute) flow rate and 10.4 sq. in. open surface area.
- Durability: Made from UV-inhibited polyethylene plastic to prevent fading and cracking.
- Accessibility: ADA Compliant and heel-proof when properly installed.
3. Components
The NDS 8 product includes one 4.5-inch square drain grate (Model NDS - 8).
4. Installation Instructions
The NDS 8, 4.5-Inch Square Grate is designed for straightforward installation on various 4-inch drainage pipes and fittings. Ensure the receiving pipe or fitting is clean and free of obstructions before placing the grate.
- Prepare the Connection Point: Ensure the top of your 4-inch sewer and drain pipe, single-wall corrugated pipe, or triple-wall pipe is clear and level.

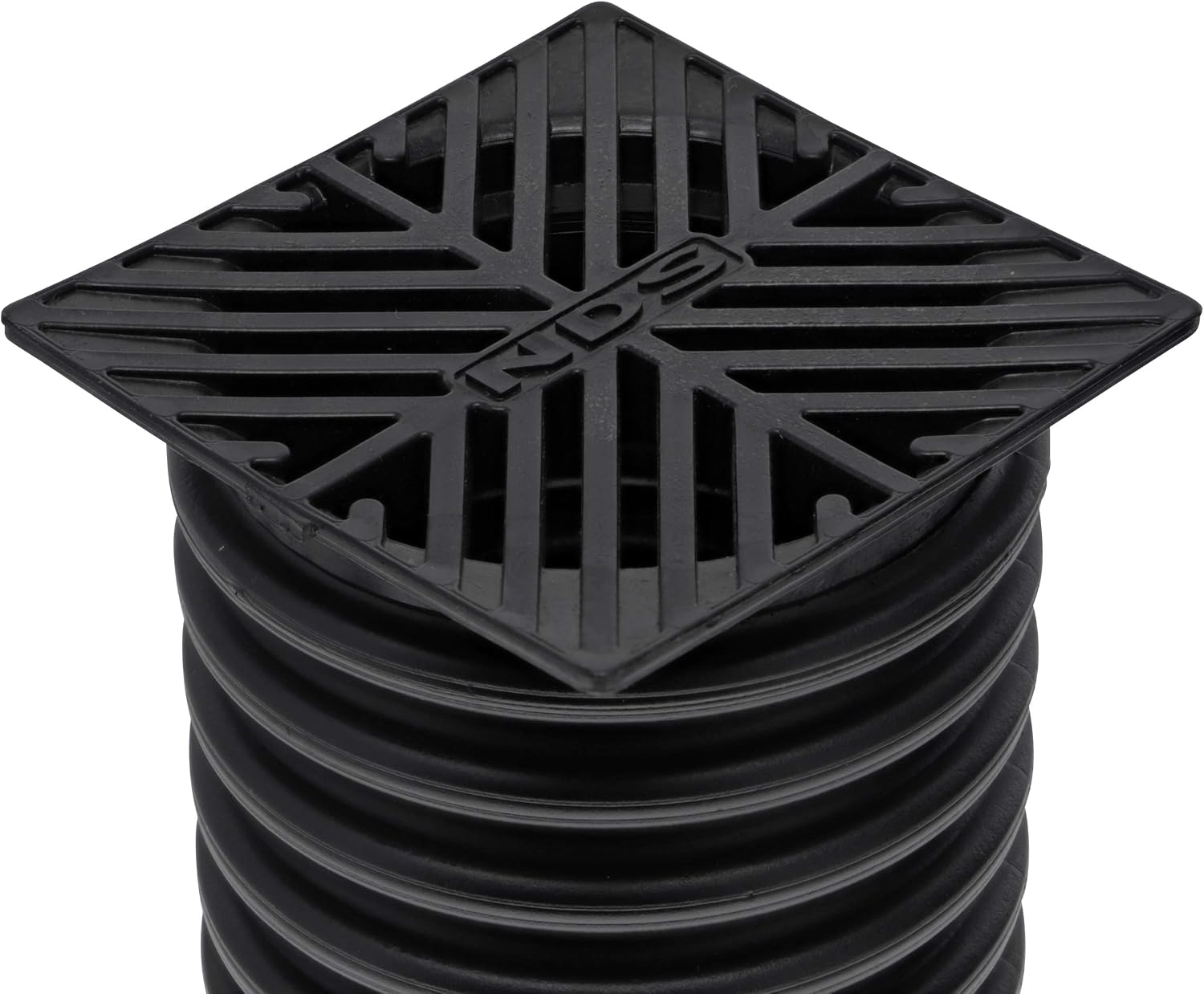

- Position the Grate: Place the NDS 8 square grate directly on top of the prepared pipe or drain fitting. The grate is designed to fit snugly for a soil-tight connection.
- Verify Fit: Confirm that the grate sits securely and evenly on the pipe. For optimal performance and to prevent tripping hazards, ensure the grate is flush with the surrounding surface if installed in a pedestrian area.
- Secure (Optional): While designed for a snug fit, additional securing methods (e.g., appropriate adhesive or fasteners, depending on the pipe material and installation context) may be used for permanent installations or in areas subject to high traffic or displacement.
5. Operation
The NDS 8, 4.5-Inch Square Grate operates passively as a component of your drainage system. Once installed, it allows stormwater to flow into the connected drain pipe while preventing larger debris, such as leaves, twigs, and sediment, from entering and causing blockages. Its design ensures continuous water flow and protection for your underground piping.
6. Maintenance
Regular maintenance of your NDS 8 drain grate is crucial to ensure optimal drainage performance and prevent system clogs.
- Routine Inspection: Periodically check the grate surface for accumulated leaves, dirt, and other debris.
- Cleaning: Remove any visible debris from the grate surface by hand or with a small brush. For stubborn dirt, a hose can be used to rinse the grate.
- Clear Blockages: If water is pooling around the grate or draining slowly, carefully lift the grate to inspect the pipe opening for any internal blockages. Clear any obstructions found.
- Winter Care: In colder climates, ensure the grate is clear of ice and snow to maintain proper drainage.
7. Troubleshooting
Most issues with the NDS 8 drain grate relate to blockages or improper installation.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water pooling around grate | Debris on grate surface or inside pipe. | Clear debris from grate. If problem persists, remove grate and clear any blockages in the pipe. |
| Grate is loose or dislodged | Improper fit or external force. | Ensure grate is properly seated on the pipe. Consider using an appropriate adhesive if necessary for a more secure fit. |
| Reduced flow rate | Partial blockage in the pipe or grate openings. | Perform thorough cleaning of the grate and inspect the pipe for partial obstructions. |
8. Specifications
| Specification | Detail |
|---|---|
| Brand | NDS |
| Model Number | NDS - 8 |
| Product Dimensions (W x H) | 4.56"W x 1.81"H |
| Compatible Groove Diameter | 4 Inches |
| Material | Plastic (Polyethylene with UV inhibitors) |
| Color | Black |
| Finish Type | Matte |
| Flow Rate | 32 GPM |
| Open Surface Area | 10.4 sq. in. |
| Item Weight | 0.2 Pounds |
| GTIN / UPC | 052063500089 |
9. Warranty Information
Specific warranty details for the NDS 8, 4.5-Inch Square Grate are typically provided at the point of purchase or can be found on the official NDS website. Please refer to the documentation included with your product or visit the manufacturer's website for the most current warranty terms and conditions.
