Wera 5056440001 BC Universal Rapidaptor Bit-Check 30-Piece Set Instruction Manual

1. Product Overview

The Wera 5056440001 BC Universal Rapidaptor Bit-Check is a comprehensive 30-piece screwdriver bit set designed for efficient and organized tool storage and use. This set features a compact design, making it convenient for various applications. The included bits are engineered for durability and precision, suitable for a wide range of fastening tasks.

• Compact Storage: The Bit-Check case provides organized storage, thinner than the largest tool, allowing it to fit easily into a pocket.
• Rapidaptor Bit Holder: Features a quick-release chuck for fast, one-handed bit changes, compatible with both insert and power bits.
• Torsion Bits: Designed to prevent premature wear, enhancing the service life of the bits.
• Versatile Selection: Includes a variety of bit types and sizes to cover common screw applications.

Image 1.1: The Wera 5056440001 BC Universal Rapidaptor Bit-Check 30-Piece Set in its compact case.

2. Package Contents

Your Wera 5056440001 BC Universal Rapidaptor Bit-Check set includes the following components:

• 1 x Rapidaptor Universal Bit Holder with Quick-Release Chuck
• 29 x Screwdriver Bits, comprising:
• 1 x TZ Slotted Bit: 7/32”
• 5 x Hex-Plus Bits: 3mm, 4mm, 5mm, 6mm, 8mm
• 6 x TZ Phillips Bits: 2 x PH1, 3 x PH2, PH3
• 6 x TZ Pozidriv Bits: 2 x PZ1, 3 x PZ2, PZ3
• 6 x TZ TORX Bits: TX10, TX15, TX20, TX25, TX30, TX40
• 5 x TORX BO Bits: TX10 BO, TX15 BO, TX20 BO, TX25 BO, TX30 BO

Image 2.1: Detailed label showing the included bit types and sizes.

3. Setup & Operation

3.1 Opening the Bit-Check Case

The Bit-Check case is designed for easy access and secure storage. To open, locate the slide switch on the side of the case. Slide it to release the bit holder section, which will then tilt upwards, presenting the bits for selection. To close, simply push the bit holder section back into the main case until it clicks securely.

3.2 Using the Rapidaptor Bit Holder

The Rapidaptor bit holder allows for quick and efficient bit changes. It is compatible with standard 1/4-inch hex bits.

1. Inserting a Bit: Simply push the desired bit into the Rapidaptor chuck. The bit will automatically lock into place without needing to pull back the collar.

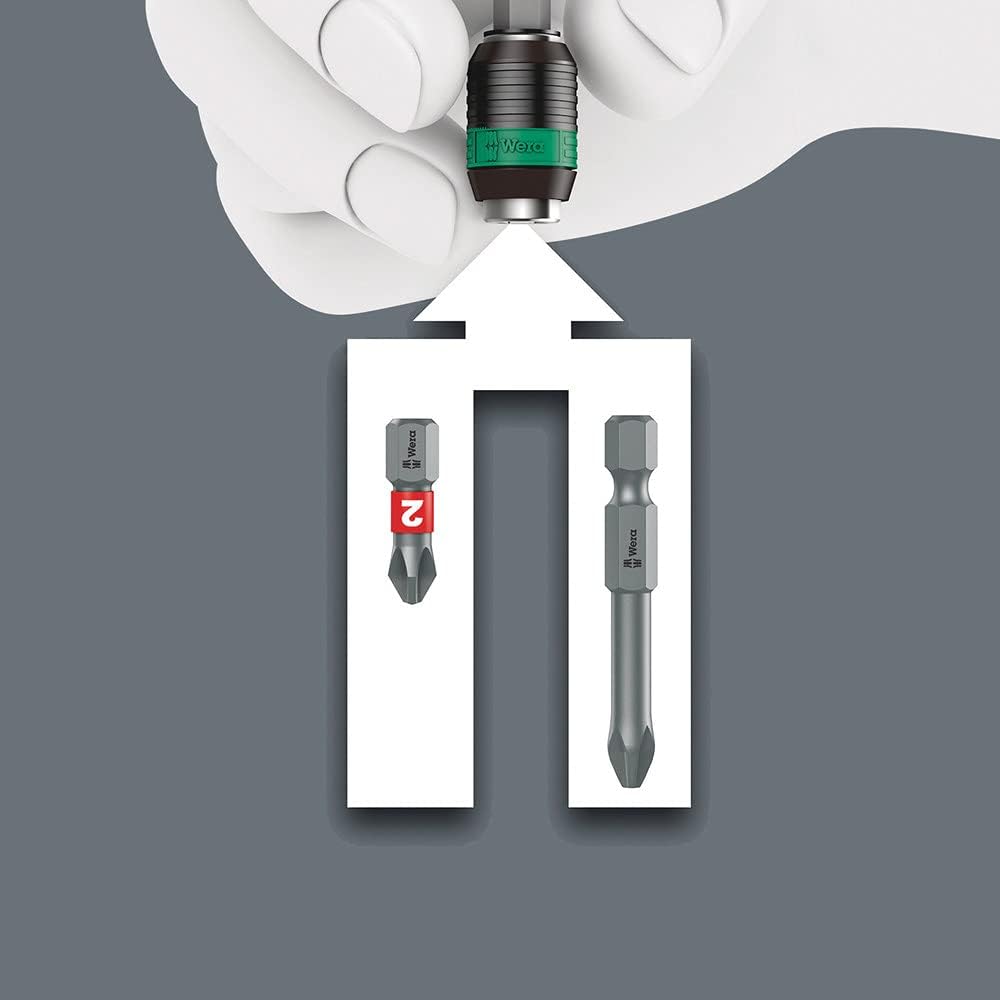

Image 3.1: Push the bit directly into the Rapidaptor for secure locking.

2. Removing a Bit: To release a bit, pull the green collar of the Rapidaptor forward. The bit will then slide out easily.


Image 3.2: Pull the green collar forward to release the bit.

3. Magnetic Function: The Rapidaptor also features a magnetic function to help hold screws in place during fastening.


Image 3.3: The Rapidaptor's magnetic feature assists in holding fasteners.

3.3 Using Bits with Power Tools

The bits and Rapidaptor holder are designed for use with various power tools, including drills and impact drivers. The Torsion (TZ) bits are specifically engineered to absorb peak torque loads, reducing stress on the bit tip and preventing premature wear, thus improving their service life.

4. Maintenance

Proper maintenance ensures the longevity and performance of your Wera Bit-Check set:

• Cleaning: After use, wipe down bits and the Rapidaptor holder to remove any dirt, debris, or moisture.
• Storage: Store the Bit-Check set in a dry environment to prevent corrosion. Avoid prolonged exposure to high humidity or corrosive substances.
• Inspection: Periodically inspect bits for signs of wear or damage. Replace worn bits to maintain optimal fastening performance and prevent damage to fasteners.

5. Troubleshooting

• Bits Not Securely Held: Ensure the bit is fully inserted into the Rapidaptor chuck until it clicks. The collar should return to its forward position, indicating a secure lock.
• Difficulty Removing Bits: Make sure to pull the green collar of the Rapidaptor completely forward before attempting to remove the bit. If the bit is stuck, ensure no debris is obstructing the mechanism.
• Bits Wearing Prematurely: Verify that you are using the correct bit type and size for the fastener. Using an incorrect bit can lead to cam-out and accelerated wear. Avoid applying excessive torque beyond the bit's capacity.

6. Specifications

7. Warranty and Support

For warranty information and customer support, please refer to the official Wera website or contact their customer service directly. Details regarding product registration, warranty claims, and technical assistance can typically be found through these channels.
