Sealey VS035 Brake Shoe Spring Pliers

1. Product Overview

The Sealey VS035 Brake Shoe Spring Pliers are a specialized hand tool designed for the efficient and safe installation and removal of drum shoe return springs. This tool is also suitable for removing and installing springs from anchor studs, making it an essential tool for servicing most car and light commercial drum brake systems.

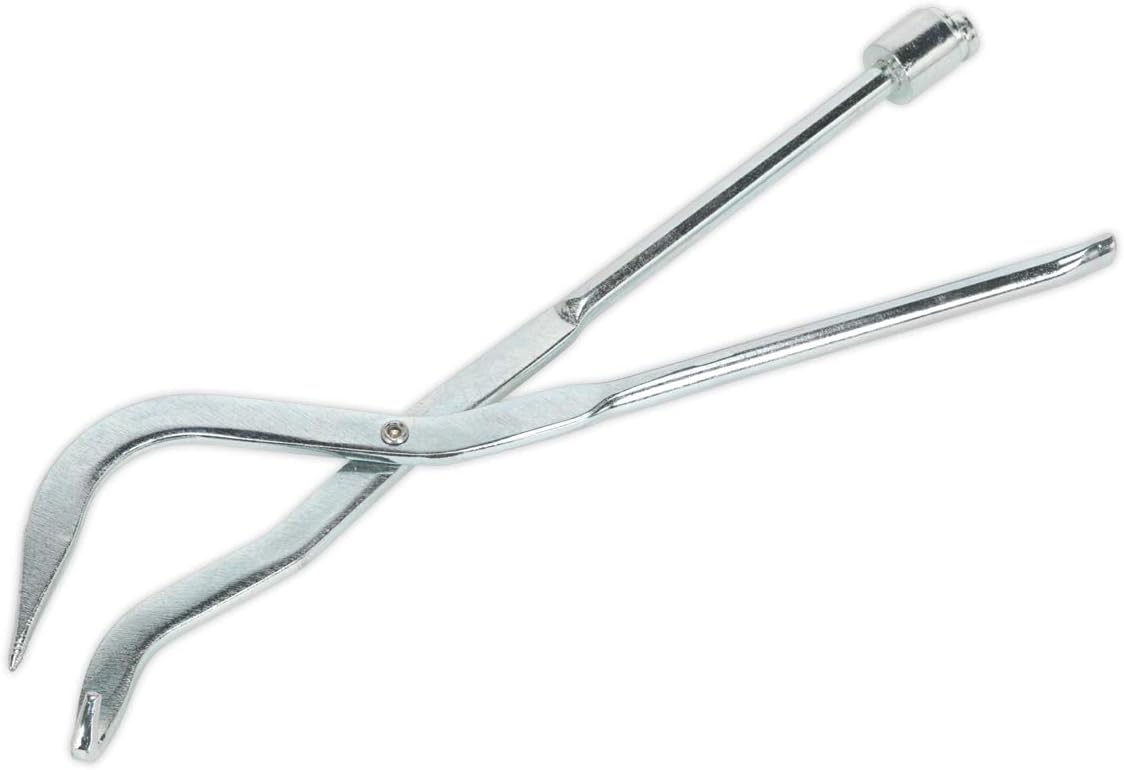

Figure 1.1: Sealey VS035 Brake Shoe Spring Pliers. This image displays the full length of the pliers, showcasing their metallic silver finish and the specialized hooked and pointed jaws designed for brake spring manipulation.

Its robust construction ensures durability and reliable performance in demanding automotive environments.

2. Safety Information

Always observe the following safety precautions when using the Sealey VS035 Brake Shoe Spring Pliers:

• Eye Protection: Always wear approved safety glasses or goggles to protect your eyes from flying debris or spring tension release.
• Proper Use: Use this tool only for its intended purpose: the installation and removal of drum shoe return springs and springs from anchor studs. Do not use for prying, cutting, or other unintended applications.
• Inspect Tool: Before each use, inspect the pliers for any signs of damage, wear, or deformation. Do not use a damaged tool.
• Secure Workpiece: Ensure the vehicle is properly supported and the brake assembly is stable before beginning work.
• Controlled Force: Apply steady, controlled force. Avoid sudden jerking motions that could cause the tool to slip or springs to release unexpectedly.
• Cleanliness: Keep the tool clean and free from grease or oil to maintain a secure grip.
• Storage: Store the pliers in a dry, safe place, out of reach of children and unauthorized personnel.

3. Setup

The Sealey VS035 Brake Shoe Spring Pliers are ready for use directly out of the packaging. No assembly is required.

1. Familiarization: Before first use, familiarize yourself with the tool's design, specifically the hooked and pointed jaws, and how they interact when the handles are squeezed.
2. Work Area Preparation: Ensure your work area is well-lit, clean, and free of obstructions. Have all necessary brake components and replacement parts readily accessible.
3. Vehicle Preparation: Safely lift and support the vehicle according to manufacturer guidelines. Remove the wheel and brake drum to expose the brake shoe assembly.

4. Operating Instructions

These pliers are designed to simplify the often challenging task of handling brake shoe springs.

4.1. Removing Drum Shoe Return Springs

1. Identify the return spring(s) you need to remove. These typically connect the brake shoes to each other or to the backing plate.
2. Position the hooked jaw of the pliers securely around one end of the spring, and the pointed jaw against a stable point on the brake shoe or backing plate, providing leverage.
3. Carefully squeeze the handles to compress the spring, reducing its tension.
4. Once the spring tension is sufficiently reduced, gently maneuver the spring end off its anchor point.
5. Release the pliers slowly and carefully, ensuring the spring does not snap back unexpectedly.

4.2. Installing Drum Shoe Return Springs

1. Hook one end of the spring onto its designated anchor point on the brake shoe or backing plate.
2. Position the hooked jaw of the pliers around the free end of the spring, and the pointed jaw against a stable point on the brake shoe or backing plate, similar to removal.
3. Squeeze the handles firmly to stretch the spring, aligning its free end with its corresponding anchor point.
4. Once aligned, carefully guide the spring end onto the anchor point.
5. Slowly release the pliers, ensuring the spring is fully seated and secure.

4.3. Removing/Installing Springs from Anchor Studs

For springs attached to anchor studs (often found on hold-down pins):

• Use the pointed jaw to push down on the spring retainer, compressing the spring.
• While compressed, use the hooked jaw or another suitable tool to rotate the retainer to align with the slot in the anchor stud, allowing it to be removed or installed.

5. Maintenance

Proper maintenance will extend the life of your Sealey VS035 Brake Shoe Spring Pliers:

• Cleaning: After each use, wipe the pliers clean with a dry cloth to remove any brake dust, grease, or grime. For stubborn dirt, use a mild degreaser and then dry thoroughly.
• Lubrication: Periodically apply a light coat of general-purpose oil to the pivot point to ensure smooth operation and prevent rust.
• Inspection: Regularly inspect the jaws for wear or damage. Ensure the pivot joint is not excessively loose.
• Storage: Store the pliers in a dry environment to prevent corrosion. A tool roll or drawer is ideal.

6. Troubleshooting

While the Sealey VS035 is a simple mechanical tool, here are some common issues and their solutions:

• Difficulty Gripping Spring:
  • Ensure the jaws are clean and free of debris.
  • Verify you are using the correct jaw (hooked or pointed) for the specific spring and anchor point.
  • Confirm the spring is correctly positioned within the jaws.
• Pliers Feel Stiff:
  • Apply a small amount of lubricating oil to the pivot joint.
  • Check for any foreign material obstructing the pivot.
• Spring Slips from Jaws:
  • Ensure a firm and secure grip on the spring before applying force.
  • Avoid excessive force that could cause the spring to deform or slip.
  • Always wear eye protection in case of unexpected slippage.
• Tool Damage:
  • If the pliers show signs of bending, cracking, or significant wear, discontinue use immediately.
  • Do not attempt to repair damaged pliers, as this can compromise their integrity and safety. Replace with a new tool.

7. Specifications

8. Warranty and Support

Sealey products are manufactured to high standards and are subject to rigorous quality control. For information regarding the warranty period, terms, and conditions applicable to your Sealey VS035 Brake Shoe Spring Pliers, please refer to the warranty card included with your purchase or visit the official Sealey website.

For technical support, spare parts, or any inquiries regarding your product, please contact Sealey customer service directly. Contact details can typically be found on the Sealey website or product packaging.

Official Sealey Website: www.sealey.co.uk
