1. Introduction
Thank you for choosing Polk Audio DB1001 1-inch silk/polymer composite dome tweeters. These tweeters are designed to deliver clear, detailed high-frequency sound, enhancing your car or boat audio system. The DB1001 series combines performance with durability, making them suitable for various environments. Please read this manual thoroughly before installation and use to ensure proper setup and optimal sound quality.
2. Product Features
- 1-Inch Silk/Polymer Composite Dome Tweeters: Designed for smooth and accurate high-frequency reproduction.
- Neodymium Magnet: Provides high magnetic flux for improved efficiency and detailed highs.
- Liquid-Cooled Voice Coil: Enhances power handling and reliability.
- Flush and Surface Mount Swivel Cups: Offers flexible installation options and allows for soundstage optimization.
- In-line 12dB/Octave Passive Crossover: Ensures proper frequency distribution to the tweeter and includes electronic tweeter protection for long-term reliability.
- Maximum Input Power: 180 Watts.
- Durable Construction: Built to withstand harsh environments, suitable for marine applications (note: not waterproof).
3. Package Contents
Your Polk Audio DB1001 tweeter package should contain the following items:
- Two (2) Polk Audio DB1001 1-inch Silk/Polymer Composite Dome Tweeters
- Two (2) In-line 12dB/Octave Passive Crossovers with Electronic Tweeter Protection
- Mounting Hardware (e.g., flush mount cups, surface mount cups, screws)
Please inspect all items for any damage and ensure all components are present. Contact your dealer immediately if any items are missing or damaged.
4. Installation
Proper installation is crucial for optimal performance and longevity of your tweeters. If you are unsure about any part of the installation process, it is recommended to seek professional assistance.
4.1 Mounting Options
The DB1001 tweeters offer flexibility with both flush and surface mounting options. The swivel cups allow you to direct the sound for optimal imaging.
Image 1: Polk Audio DB1001 tweeter in an angled surface mount cup. This shows the tweeter's design and how it can be positioned for directional sound.

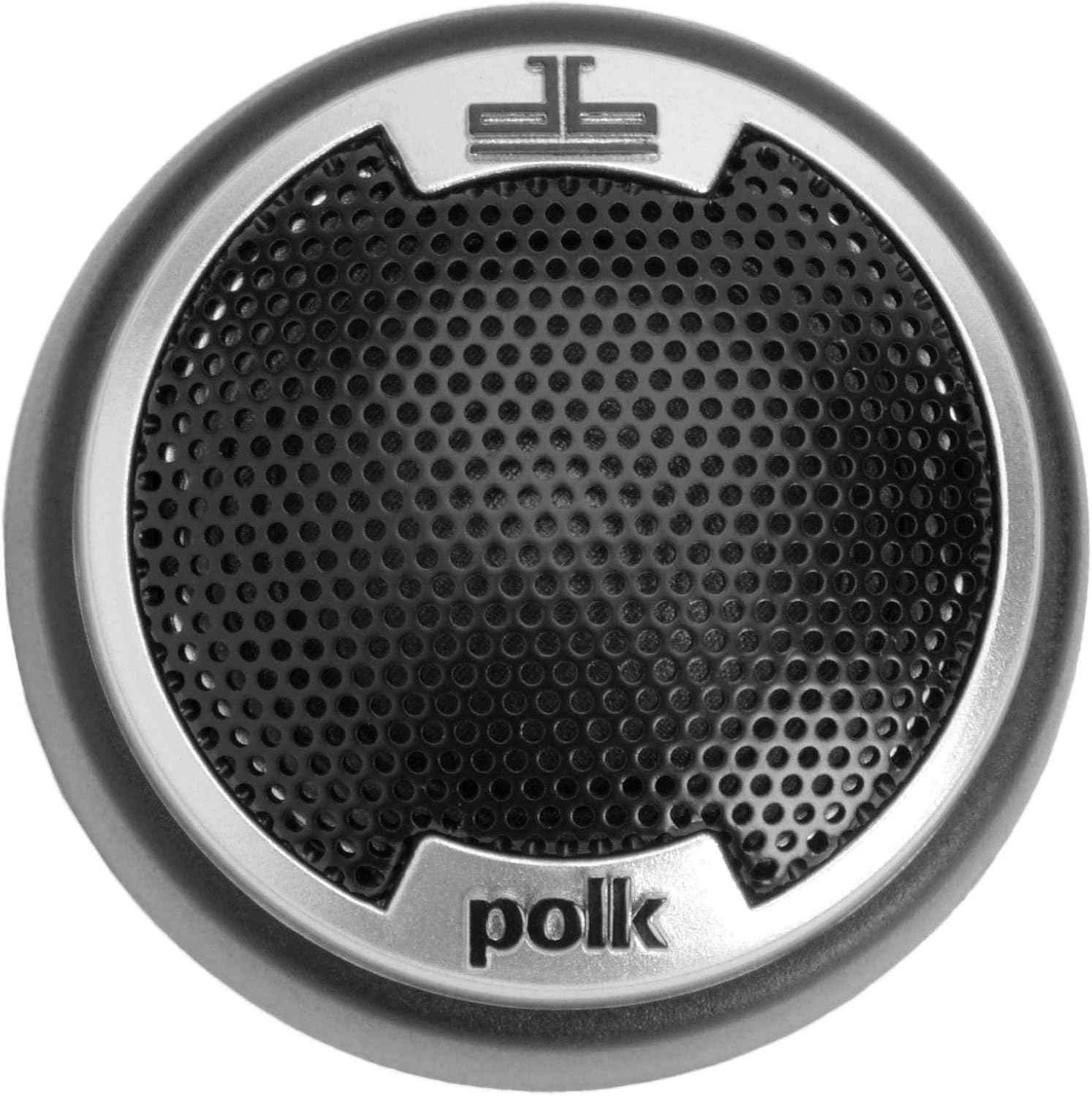

Image 2: Polk Audio DB1001 tweeter in a flush mount cup, viewed from directly above. This illustrates the compact, integrated appearance when flush mounted.
Flush Mounting
For a clean, integrated look, flush mounting involves cutting a circular hole in the mounting surface. Ensure there is sufficient depth behind the panel for the tweeter and its housing. Secure the tweeter assembly using the provided hardware.
Surface Mounting
Surface mounting allows the tweeter to be mounted directly onto a flat surface. Use the surface mount cups and screws to secure the tweeter. This method is often easier and provides more flexibility for aiming the tweeter.
4.2 Wiring Connections
Each DB1001 tweeter must be connected through its dedicated in-line passive crossover. The crossover filters out lower frequencies that the tweeter is not designed to reproduce, preventing damage and ensuring clear sound.
- Identify Wires: Your car audio system will have speaker wires (positive and negative) for the high-frequency output. The passive crossover will have input terminals (from amplifier/head unit) and output terminals (to tweeter).
- Connect Crossover Input: Connect the positive (+) and negative (-) wires from your amplifier or head unit's high-frequency output to the corresponding input terminals on the passive crossover.
- Connect Crossover Output to Tweeter: Connect the positive (+) and negative (-) output terminals of the passive crossover to the corresponding terminals on the tweeter. Ensure correct polarity (positive to positive, negative to negative) for both connections. Incorrect polarity can lead to poor sound quality or damage.
- Secure Connections: Use appropriate connectors (e.g., crimp connectors, solder) to ensure secure and reliable electrical connections. Insulate all exposed wiring to prevent short circuits.
4.3 Bass Blockers (Optional but Recommended)
While the included passive crossover provides basic high-pass filtering, for optimal performance and protection, especially when integrating with full-range speakers, consider using additional bass blockers (capacitors) if your system allows. These further prevent low frequencies from reaching the tweeter, reducing distortion and extending tweeter lifespan.
5. Operation
Once properly installed, your Polk Audio DB1001 tweeters will operate as part of your car or boat audio system. They are passive components, meaning they do not require a separate power source beyond the audio signal from your amplifier or head unit.
- System Integration: The tweeters are designed to reproduce high frequencies. Ensure your audio system's amplifier or head unit is properly configured to send appropriate signals to the tweeters via their passive crossovers.
- Volume Control: Adjust the overall system volume through your head unit or amplifier. Avoid excessively high volumes that cause audible distortion, as this can damage the tweeters.
- Sound Adjustment: Use your audio system's equalizer or tone controls to fine-tune the sound to your preference. Start with flat settings and make small adjustments.
6. Maintenance
The Polk Audio DB1001 tweeters require minimal maintenance to ensure long-lasting performance.
- Cleaning: Gently wipe the tweeter grilles and surfaces with a soft, dry cloth to remove dust. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture.
- Environmental Protection: While durable, these tweeters are not waterproof. Avoid direct exposure to water, excessive humidity, or extreme temperatures. If used in a boat, ensure they are installed in a location protected from direct water spray.
- Connection Checks: Periodically check all wiring connections to ensure they remain secure and free from corrosion, especially in marine environments.
7. Troubleshooting
If you experience issues with your DB1001 tweeters, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from tweeter | Loose or incorrect wiring connection Damaged tweeter or crossover Amplifier/head unit issue | Check all wiring connections, ensuring they are secure and correctly polarized. Test with another known-good tweeter if possible. Verify amplifier/head unit is functioning correctly. |
| Distorted or crackling sound | Incorrect polarity Tweeter receiving low frequencies Overpowering/clipping Damaged tweeter or crossover | Verify correct polarity (positive to positive, negative to negative). Ensure the passive crossover is correctly installed. Reduce volume to check if distortion disappears. Consider adding bass blockers. If distortion persists at low volumes, the tweeter or crossover may be damaged. |
| Weak or muffled highs | Incorrect wiring Tweeter aiming System EQ settings | Double-check wiring for correct polarity and secure connections. Adjust tweeter swivel cups to aim sound towards the listening area. Adjust your audio system's equalizer settings to boost high frequencies if desired. |
If these troubleshooting steps do not resolve the issue, please contact Polk Audio customer support or your authorized dealer for further assistance.
8. Specifications
| Feature | Specification |
|---|---|
| Model Name | DB1001 |
| Speaker Type | Tweeter |
| Tweeter Diameter | 1 inch (25 mm) |
| Cone Material | Silk/Polymer Composite Dome |
| Magnet Type | Neodymium |
| Maximum Output Power | 180 Watts |
| Connectivity Technology | Wired |
| Audio Output Mode | Stereo (per pair) |
| Mounting Type | Flush Mount, Surface Mount |
| Enclosure Material | Stainless Steel |
| Color | Black |
| Water Resistance Level | Not Water Resistant |
| Item Weight | 1 Pound (for the pair) |
| Compatible Vehicle Type | Boat (with appropriate protection from water) |
9. Warranty and Support
Polk Audio DB1001 tweeters come with a limited warranty covering parts and labor. The specific duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.
For technical support, warranty inquiries, or replacement parts, please contact Polk Audio customer service through their official website or your authorized dealer. Provide your product model number (DB1001) and purchase details when contacting support.
10. Safety Information
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Always exercise caution when installing audio equipment in vehicles. Ensure all wiring is properly insulated and secured to prevent electrical shorts or interference with vehicle operation. Avoid installing speakers in locations where they could obstruct airbags or other safety features. Prolonged exposure to high volume levels can cause permanent hearing damage. Always listen at moderate volume levels.
