Stagg 25016289 ABS Guitar Pedal Case Instruction Manual

1. Introduction

The Stagg 25016289 ABS Guitar Pedal Case is designed to provide secure and protective transport for your guitar effect pedals. Constructed from rugged, medium-weight plastic (ABS) with strong extruded aluminum edging, this case ensures your equipment is safeguarded against physical impact. The interior features high-density foam padding for additional protection and includes a velcro strip for attaching pedals securely.

This manual provides essential information on the setup, operation, maintenance, and specifications of your Stagg pedal case.

2. Setup

1. Unpacking: Carefully remove the pedal case from its packaging. Inspect the case for any signs of damage incurred during shipping.
2. Opening the Case: Locate the toggle latches on the front of the case. Flip them open to release the lid.

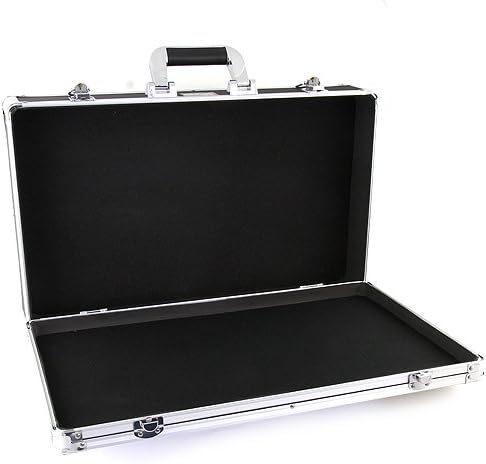

   This image displays the Stagg ABS guitar pedal case in an open position, revealing the black high-density foam padding on both the lid and the base, designed to protect effect pedals. The case features a silver aluminum frame and a molded handle.

3. Attaching Pedals: The case's interior is lined with high-density foam and includes a velcro strip. Apply the corresponding velcro (hook or loop, depending on what is on the case) to the bottom of your guitar effect pedals. Press the pedals firmly onto the velcro strip inside the case to secure them in place.


   A close-up view of the Stagg ABS guitar pedal case interior, highlighting the black foam lining and a velcro strip. This strip is used to secure guitar effect pedals firmly within the case, preventing movement during transport.

3. Operating the Case

• Securing the Lid: Once all pedals are placed and secured, close the lid of the case. Ensure the edges align properly. Engage the toggle latches by flipping them down until they click into place, securing the lid.
• Transport: Use the molded handle for carrying the case. The case also features rubber feet, allowing for stable vertical positioning when not in transit.

4. Maintenance

• Cleaning: To clean the exterior of the case, wipe it with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by wiping with a clean, damp cloth and drying thoroughly. Avoid abrasive cleaners.
• Interior Care: The foam interior can be gently vacuumed to remove dust or debris. Avoid using liquids directly on the foam.
• Latch and Hinge Inspection: Periodically check the toggle latches and hinges for proper function and signs of wear. Ensure they operate smoothly and securely.

5. Troubleshooting

• Case Not Closing Properly: Ensure no pedals or cables are obstructing the closing path of the lid. Check that the aluminum edging is not bent or damaged.
• Pedals Not Securing: Verify that both the case interior and the pedals have clean, functional velcro strips. Replace worn velcro if necessary.
• Damaged Latches/Hinges: If latches or hinges become damaged, contact Stagg customer support for assistance. Do not attempt to force damaged components.

6. Specifications

7. Warranty and Support

The Stagg 25016289 ABS Guitar Pedal Case comes with a 1-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any inquiries regarding your product, please contact Stagg customer service through their official website or authorized retailers. Please have your model number (25016289) and proof of purchase available when contacting support.
