1. Introduction
Thank you for choosing the Grote 47262 Super Nova Low Profile LED Clearance Marker Lights. These durable and efficient LED lights are designed to enhance visibility and safety for various automotive and heavy-duty applications. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your lights.
2. Product Features
- Model: 47262 Super Nova Low Profile LED Clearance Marker Light
- Color: Red
- Lens Material: Acrylic
- Special Feature: Waterproof design for enhanced durability
- Vehicle Service Type: Car, universal fit for various heavy-duty and commercial vehicles
- Auto Part Position: Outer, typically used as rear lights
- Dimensions: Approximately 5 x 1.57 x 1.02 inches
- Weight: Approximately 1.44 ounces
- High order fulfillment rates and broad product availability.
3. Package Contents
- 1 x Grote 47262 Super Nova Low Profile LED Clearance Marker Light
- Integrated wiring leads (red and white)
- Mounting hardware (screws)
4. Safety Information
- Always disconnect the vehicle's battery before performing any electrical work to prevent electrical shock or damage.
- Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves.
- Ensure all wiring connections are secure and properly insulated to prevent short circuits.
- Consult a qualified technician if you are unsure about any installation steps.
- Adhere to all local and national regulations regarding vehicle lighting.
5. Installation Instructions
Tools Required:
- Screwdriver (appropriate size for mounting screws)
- Wire strippers/crimpers
- Electrical tape or heat shrink tubing
- Dielectric grease (optional, for corrosion protection)
- Automotive-grade sealant (recommended for enhanced waterproofing)
Preparation:
- Identify the desired mounting location for the clearance marker light. Ensure it complies with all relevant vehicle lighting regulations.
- Clean the mounting surface thoroughly to ensure proper adhesion of any sealant and a secure fit.
- If replacing an existing light, carefully remove the old unit and clean any residue.
Wiring:
- The Grote 47262 light features two wires: a red wire for positive (+) and a white wire for negative (-)/ground.
- Connect the red wire from the light to the vehicle's positive (+) marker light circuit.
- Connect the white wire from the light to a suitable vehicle ground point or the negative (-) marker light circuit.
- Ensure all connections are tight and insulated using electrical tape or heat shrink tubing. Applying dielectric grease to connections can help prevent corrosion.
Mounting:
- Position the light in the desired location. The light is designed to fit existing standard mounting holes.
- Secure the light using the provided mounting screws. Do not overtighten.
- Although the light is waterproof, applying an automotive-grade sealant around the edges of the light and screw holes is highly recommended to prevent water intrusion, especially in harsh environments.
- After installation, reconnect the vehicle's battery and test the light to ensure it functions correctly.
Figure 1: Rear view of the Grote 47262 LED clearance marker light showing wiring and mounting points.
Installation Videos:
Video 1: Installation of similar LED trailer lights, highlighting wiring and mounting techniques.
Video 2: Another demonstration of LED trailer light installation, useful for visual reference.
6. Operation
The Grote 47262 LED Clearance Marker Light functions as a constant-on marker light when properly wired to your vehicle's marker light circuit. It provides a bright, red illumination to indicate the presence and width of your vehicle, enhancing safety, especially during nighttime driving or in low-visibility conditions.

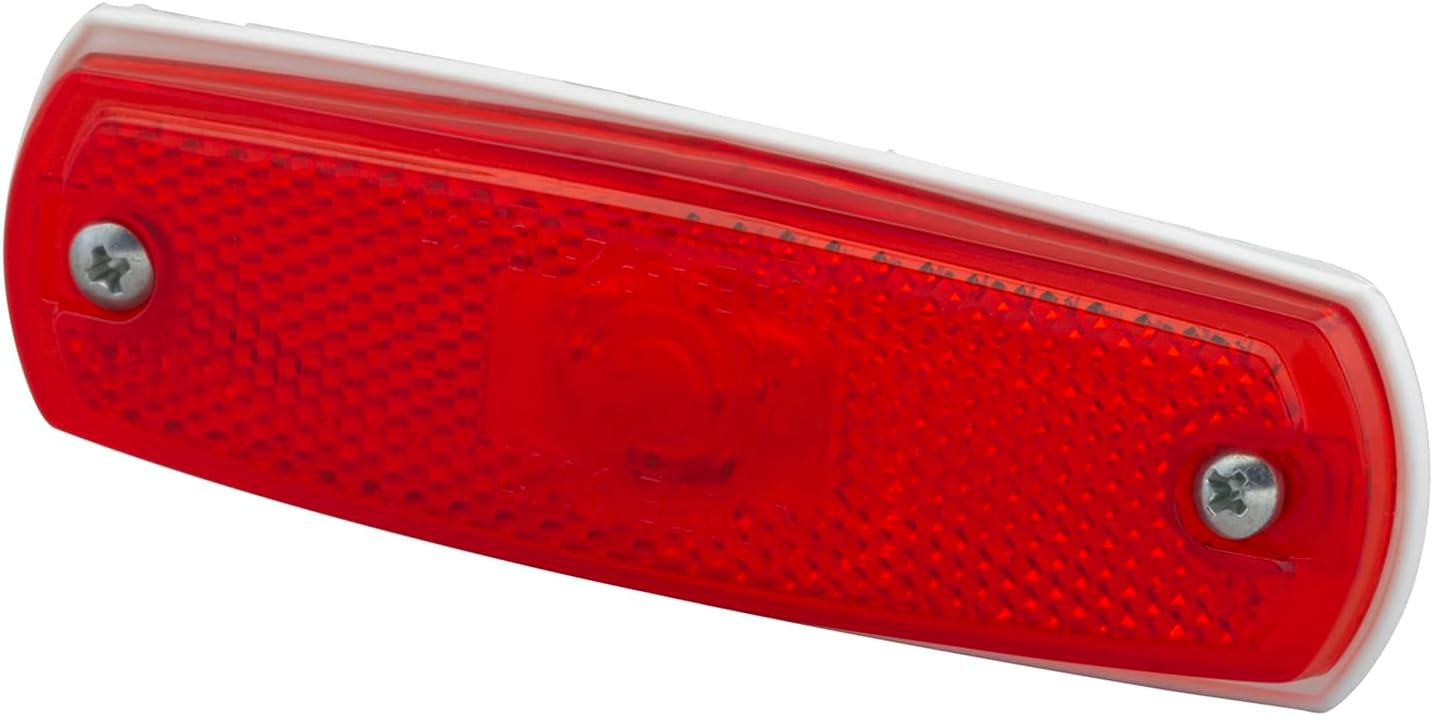

Figure 2: Front view of the Grote 47262 LED clearance marker light.
7. Maintenance
- Cleaning: Periodically clean the lens with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the acrylic lens.
- Inspection: Regularly inspect the lights for any signs of damage, loose connections, or corrosion. Ensure the mounting screws remain tight.
- Sealant Check: If additional sealant was applied during installation, periodically check its integrity and reapply if necessary to maintain waterproofing.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not illuminate | No power to the light; faulty wiring connection; blown fuse; incorrect polarity. | Check power supply to the circuit; inspect all wiring connections; check vehicle fuse box; ensure red wire is positive and white is negative. |
| Light is dim or flickers | Poor electrical connection; insufficient voltage; corrosion at terminals. | Clean and secure all electrical connections; check vehicle's electrical system for proper voltage output; remove any corrosion. |
| Water inside the lens | Compromised seal or sealant. | Inspect the light's seal and surrounding sealant; reapply automotive-grade sealant as needed. |
9. Specifications
| Attribute | Value |
|---|---|
| Brand | Grote |
| Model Number | 47262 |
| Color | Red |
| Specific Uses For Product | Rear Lights |
| Vehicle Service Type | Car (Universal Fit) |
| Special Feature | Waterproof |
| Auto Part Position | Outer |
| Lens Material | Acrylic |
| Item Dimensions (L x W x H) | 5 x 1.57 x 1.02 inches |
| Item Weight | 1.44 ounces |
| UPC | 089373470641 |
| Assembly Required | No |
10. Warranty and Support
For warranty information or technical support regarding your Grote 47262 Super Nova Low Profile LED Clearance Marker Lights, please refer to the official Grote website or contact Grote customer service directly. Keep your purchase receipt for warranty claims.
