Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Motorcraft CM5126 Remanufactured Pressure Regulator. Please read these instructions carefully before proceeding with installation or use to ensure optimal performance and safety.
Product Overview
The Motorcraft CM5126 is a remanufactured pressure regulator designed for automotive fuel systems. It is engineered to maintain optimal fuel pressure, which is crucial for efficient engine operation. This component is known for its durability and performance in demanding automotive environments.
- Resists abrasion and corrosion
- Maximizes performance
- Made from high-quality materials
- Easy installation
- Ensures lasting durability

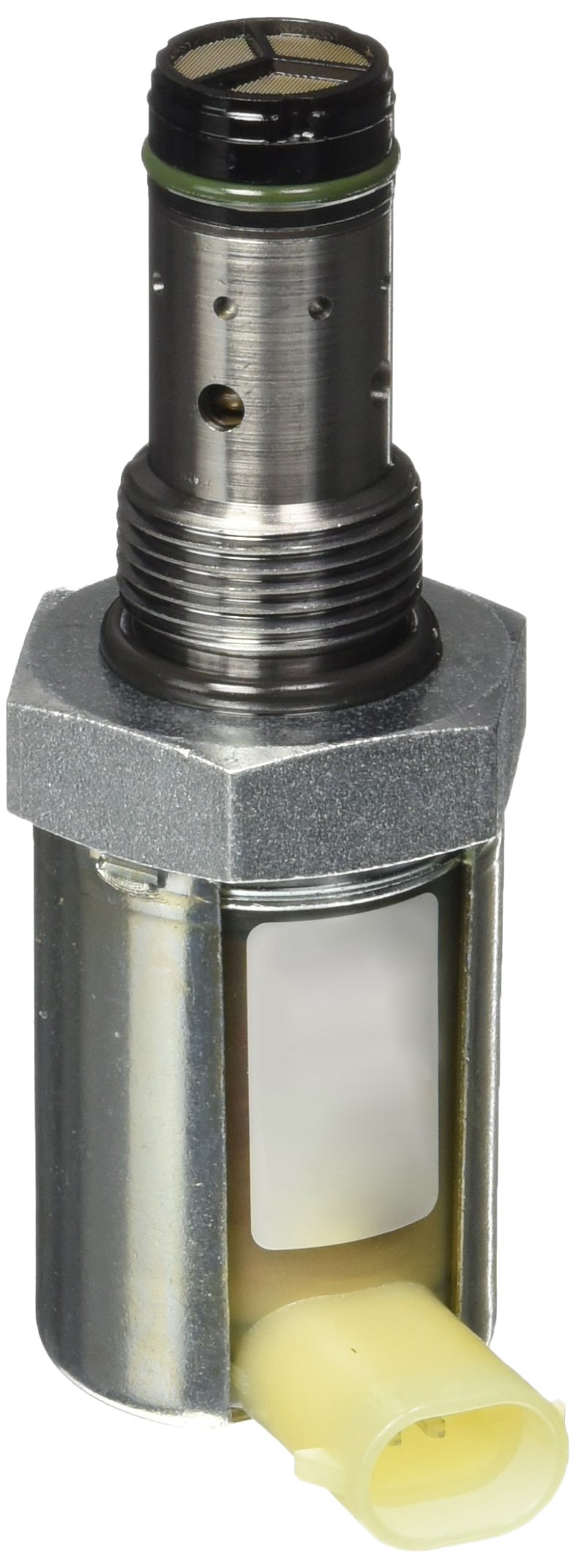

Image: Motorcraft CM5126 Remanufactured Pressure Regulator. This image displays the pressure regulator unit, highlighting its metallic body and connector.
What's in the Box
Your package should contain the following item:
- One (1) Motorcraft CM5126 Remanufactured Pressure Regulator
Installation Instructions
Installation of the pressure regulator requires specific tools and mechanical knowledge. If you are not confident in performing this installation, it is recommended to seek professional assistance.
- Safety First: Ensure the vehicle's engine is off and cool. Disconnect the battery to prevent accidental electrical issues. Relieve any fuel system pressure before beginning work.
- Locate the IPR Valve: The Injector Pressure Regulator (IPR) valve is typically located in a challenging position, often behind the brake reservoir or near the turbocharger, depending on the vehicle model (e.g., Ford 6.0L Powerstroke).
- Required Tools: You will generally need an IPR valve socket, two 18-inch 3/8-inch ratchet extensions, a 3/8-inch universal joint, and a ratchet.
- Remove Old IPR Valve: Carefully disconnect the electrical connector from the old IPR valve. Use the specialized IPR socket and extensions to loosen and remove the old valve. Be mindful of any fuel leakage.
- Inspect and Prepare: Inspect the new Motorcraft CM5126 regulator for any damage. Ensure the O-rings are properly seated. Lubricate the O-rings with clean engine oil to aid installation and prevent damage.
- Install New IPR Valve: Thread the new regulator into its port by hand to avoid cross-threading. Once hand-tight, use the IPR socket and ratchet to tighten it to the manufacturer's specified torque. Do not overtighten.
- Reconnect: Reconnect the electrical connector to the new IPR valve.
- Final Checks: Reconnect the battery. Turn the ignition to the "ON" position (without starting the engine) several times to prime the fuel system and build pressure. Check for any fuel leaks around the new regulator.
- Start Engine: Start the engine and allow it to run, checking for proper operation and any fault codes.
Video: This video demonstrates the process of installing an Injector Pressure Regulator (IPR) valve, including unboxing the part and using a specialized socket for removal and installation. It provides a visual guide to the procedure.
Operation
The pressure regulator is a critical component in your vehicle's fuel injection system. It controls the fuel pressure delivered to the injectors, ensuring the engine receives the correct amount of fuel for efficient combustion. Once installed, the regulator operates automatically, maintaining the specified fuel pressure under various engine loads and conditions.
Maintenance
The Motorcraft CM5126 Remanufactured Pressure Regulator is designed for long-term reliability with minimal maintenance. However, regular vehicle maintenance, including fuel filter replacement as per your vehicle manufacturer's recommendations, can help prolong the life of fuel system components, including the pressure regulator.
- Periodically check for fuel leaks around the regulator and fuel lines.
- Ensure electrical connections remain clean and secure.
- Address any engine performance issues promptly to prevent secondary damage to fuel system components.
Troubleshooting
If you experience issues after installing the pressure regulator, consider the following common troubleshooting steps:
- Engine Cranks but Won't Start: Check for proper fuel pressure using a diagnostic tool. Verify electrical connection to the IPR valve. Ensure the fuel system is properly primed.
- Rough Idling or Stalling: This could indicate incorrect fuel pressure. Recheck installation and ensure no debris entered the fuel system during replacement.
- Check Engine Light (CEL): Scan for diagnostic trouble codes (DTCs) related to fuel pressure or IPR valve operation.
- Fuel Leaks: Immediately address any fuel leaks. Ensure the regulator is properly torqued and O-rings are not damaged.
If problems persist, consult a qualified automotive technician.
Specifications
| Feature | Detail |
|---|---|
| Brand | Motorcraft |
| Model | CM5126 (Pressure Regulator) |
| Item Weight | 8 ounces |
| Product Dimensions | 6.2 x 2.5 x 2.5 inches |
| Manufacturer Part Number | CM5126 |
| OEM Part Number | CM5126 |
| Exterior | Machined |
| Date First Available | October 10, 2007 |
Warranty and Support
As a remanufactured product, warranty coverage may vary. Please refer to the specific warranty information provided by the seller or contact Motorcraft directly for details regarding the CM5126. For technical support or further assistance, consult a certified automotive technician or the official Motorcraft support channels.
For additional information, you may visit the Amazon Renewed page or the official Motorcraft website.
