1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Fasco D229 Fan and Blower Motor. Please read this manual thoroughly before attempting to install or operate the motor. Retain this manual for future reference.
The Fasco D229 is a single-phase, shaded pole motor designed for fan and blower applications. It features a 1/100 horsepower rating, operates at 115V AC, and achieves a nameplate speed of 3000 RPM with a counter-clockwise shaft end rotation.
2. Safety Information
WARNING: Risk of electric shock, fire, or injury. Always disconnect power before servicing or installing the motor.
- Installation and wiring must be performed by a qualified electrician in accordance with all local and national electrical codes.
- Ensure the power supply voltage matches the motor's rated voltage (115V AC).
- Do not operate the motor in environments exceeding its maximum ambient temperature of 40 degrees C.
- Ensure proper ventilation for the motor, as it features an Open Air Over enclosure design.
- Never bypass or disable the motor's automatic thermal protection.
- Keep hands, tools, and clothing away from moving parts during operation.
- Ground the motor properly to prevent electrical shock.
3. Product Overview
The Fasco D229 motor is constructed with a steel frame and copper windings, designed for durability and performance in appropriate applications. Its compact design and stud mounting type make it suitable for various fan and blower units.

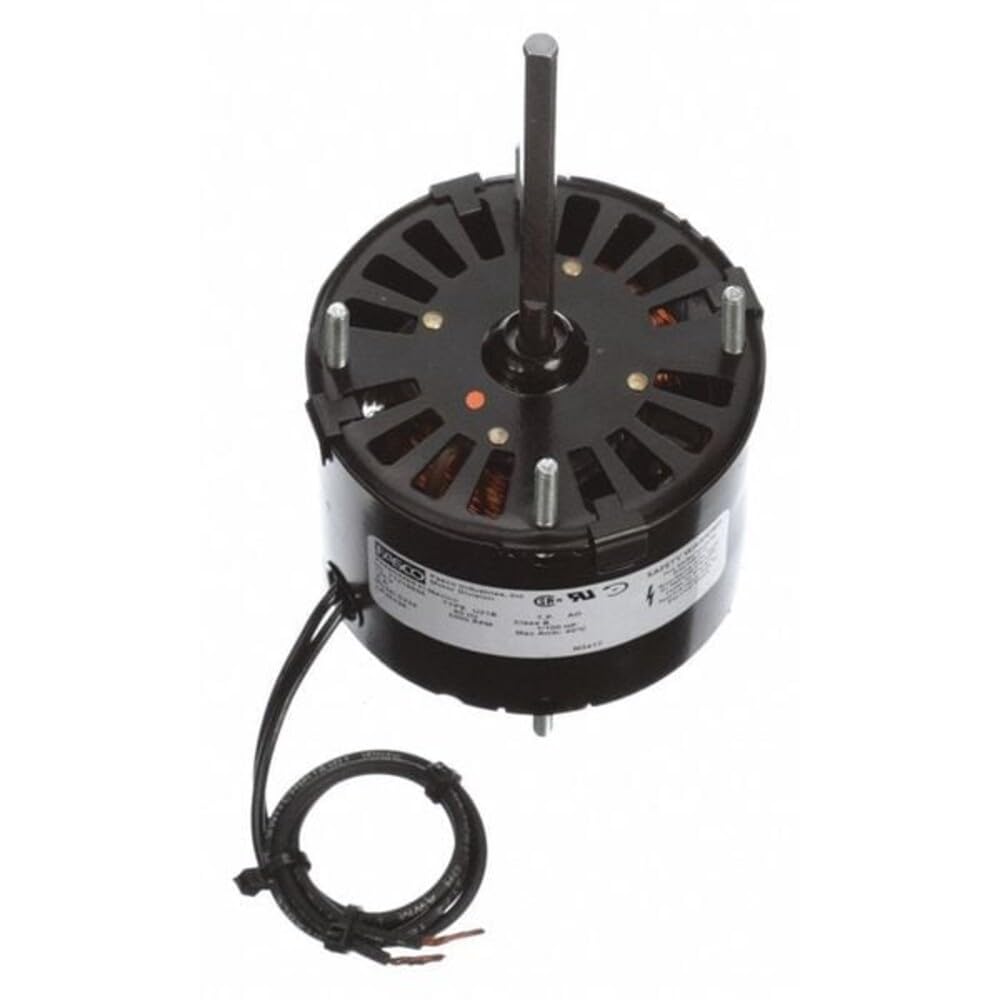

Figure 1: Fasco D229 Fan and Blower Motor. This image shows the compact design of the motor, highlighting its shaft and mounting studs.
4. Setup and Installation
Proper installation is crucial for the motor's performance and longevity. Consult a qualified professional if you are unsure about any step.
4.1 Pre-Installation Checks
- Verify that the motor's specifications (voltage, RPM, horsepower) match the requirements of your application.
- Inspect the motor for any visible damage that may have occurred during shipping.
- Ensure the mounting surface is stable and capable of supporting the motor's weight (approximately 2 pounds).
4.2 Mounting the Motor
- Position the motor in the desired location, aligning its stud mounts with the mounting holes of the fan or blower housing.
- Secure the motor using appropriate fasteners (not included) to ensure a firm and vibration-free installation.
- Ensure the motor shaft is properly aligned with the fan or blower impeller to prevent undue stress on the motor bearings.
4.3 Electrical Connection
- Ensure the main power supply is disconnected at the circuit breaker before making any electrical connections.
- Connect the motor's electrical leads to a 115V AC, 60Hz power source. Refer to the wiring diagram provided with your specific application or consult a qualified electrician.
- Properly ground the motor according to local electrical codes.
- Confirm all connections are secure and insulated to prevent short circuits.
5. Operating Instructions
The Fasco D229 motor is designed for continuous operation within its specified parameters.
- After installation, ensure all safety covers are in place and there are no obstructions around the motor or fan/blower assembly.
- Restore power to the circuit.
- Activate the fan or blower unit. The motor should start smoothly and reach its operating speed of 3000 RPM.
- Observe the motor during its initial operation for any unusual noises, vibrations, or signs of overheating. If any issues are detected, immediately shut off power and refer to the troubleshooting section.
- The motor's shaft rotation is Counter-Clockwise Shaft End (CCWSE). Ensure this matches the requirements of your fan or blower.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your Fasco D229 motor.
- Cleaning: Periodically clean the exterior of the motor to prevent dust and debris buildup, which can impede cooling. Ensure power is disconnected before cleaning.
- Ventilation: Verify that the motor's ventilation openings are clear and unobstructed to allow for proper airflow and cooling.
- Connections: Annually inspect all electrical connections for tightness and signs of corrosion. Loose connections can lead to overheating or intermittent operation.
- Bearings: The motor is typically designed with permanently lubricated bearings, requiring no additional lubrication. If unusual bearing noise is detected, the motor may require professional service or replacement.
7. Troubleshooting
Before performing any troubleshooting, always disconnect power to the motor.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power supply Loose wiring connections Thermal overload tripped Motor seized | Check circuit breaker/fuse Inspect and tighten all electrical connections Allow motor to cool; check for obstructions Inspect for obstructions; replace motor if seized |
| Motor overheats | Insufficient ventilation Overload condition Incorrect voltage Bearing failure | Clear obstructions from motor vents Reduce load on motor; ensure fan/blower operates freely Verify power supply is 115V AC Consult professional service |
| Excessive noise or vibration | Loose mounting Unbalanced fan/blower impeller Worn bearings | Tighten mounting fasteners Inspect and balance impeller; clean blades Consult professional service |
8. Specifications
Key technical specifications for the Fasco D229 motor:
| Specification | Value |
|---|---|
| Model Number | D229 |
| Brand | Fasco |
| Motor Design | Shaded Pole |
| Horsepower (HP) | 1/100 hp (0.01 HP) |
| Voltage | 115V AC |
| Frequency | 60 Hz |
| Nameplate RPM | 3000 RPM |
| Number of Speeds | 1 |
| Full Load Amps | 0.60 A |
| Output Watts | 10 W |
| Frame Size | 3.3 Frame |
| Motor Service Factor | 1 |
| Thermal Protection | Auto |
| Insulation Class | B |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Shaft Rotation | CCWSE (Counter-Clockwise Shaft End) |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Stud |
| Motor Frame Material | Steel |
| Material (Windings) | Copper |
| Item Weight | 2 Pounds |
| UPC | 663001025313 |
9. Warranty Information
For detailed warranty information regarding your Fasco D229 motor, please refer to the official Fasco website or contact Fasco customer support directly. Warranty terms and conditions may vary based on region and purchase date.
10. Support and Contact
If you require further assistance, technical support, or have questions not covered in this manual, please contact Fasco customer service or visit their official website:
- Fasco Official Website: www.regalrexnord.com/brands/fasco (Note: Fasco is a brand of Regal Rexnord)
- Refer to the website for contact numbers and support resources specific to your region.
