Velleman VTMG5 20.1" Flexible Neck 3X Magnifier Instruction Manual

Introduction

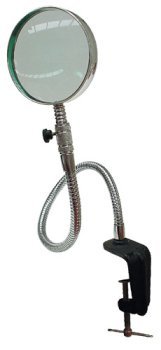

The Velleman VTMG5 is a versatile 3X magnification tool designed for detailed work. It features a 3.5-inch diameter lens, a 19-inch flexible gooseneck, and a heavy-duty bench clamp for secure attachment to various surfaces. This manual provides essential information for the safe and effective use of your magnifier.

Important Safety Information

• Avoid Direct Sunlight: Never expose the magnifier lens to direct sunlight. Concentrated sunlight can create a fire hazard or damage surfaces.
• Secure Mounting: Always ensure the bench clamp is securely fastened to a stable surface before use to prevent the magnifier from falling.
• Handle with Care: Avoid excessive force when adjusting the flexible gooseneck to prevent damage.
• Keep Out of Reach of Children: This product is not a toy and should be kept away from children.
• Proper Storage: Store the magnifier in a clean, dry place when not in use.

Package Contents

Verify that all components are present in the package:

• 1 x 3.5-inch Magnifier Lens Assembly
• 1 x 19-inch Flexible Gooseneck Arm
• 1 x Heavy-Duty Bench Clamp

Setup Instructions

Follow these steps to assemble and set up your Velleman VTMG5 magnifier:

1. Attach Gooseneck to Clamp: Insert the threaded end of the flexible gooseneck arm into the designated opening on the bench clamp. Twist clockwise until it is firmly secured.
2. Secure Clamp to Surface: Choose a stable workbench, table, or desk edge. Open the clamp by turning the screw handle counter-clockwise, position it on the surface, and then tighten the screw handle clockwise until the clamp is firmly attached and does not wobble.
3. Attach Magnifier Lens: Screw the magnifier lens assembly onto the free end of the flexible gooseneck arm. Ensure it is tightened securely.

Operating Instructions

Once assembled, the Velleman VTMG5 is ready for use:

• Positioning: Gently bend and adjust the 19-inch flexible gooseneck to position the magnifier lens directly over your work area. The gooseneck is designed to hold its position once set.
• Focusing: Adjust the distance between the magnifier lens and the object you are viewing to achieve optimal 3X magnification and clarity.
• Stability: Periodically check the tightness of the bench clamp to ensure the magnifier remains stable during use.

Maintenance and Care

To ensure the longevity and performance of your magnifier, follow these maintenance guidelines:

• Cleaning the Lens: Use a soft, lint-free cloth specifically designed for optical lenses to clean the magnifier. For stubborn smudges, a small amount of lens cleaning solution can be applied to the cloth, not directly to the lens. Avoid abrasive materials or harsh chemicals.
• Cleaning the Gooseneck and Clamp: Wipe down the gooseneck and clamp with a damp cloth as needed. Dry thoroughly.
• Storage: When not in use, store the magnifier in a clean, dry environment to protect it from dust and potential damage.

Troubleshooting

If you encounter any issues with your Velleman VTMG5 magnifier, refer to the following common problems and solutions:

• Magnifier is unstable or sags:
  • Ensure the bench clamp is securely tightened to the surface.
  • Verify that the gooseneck is firmly screwed into both the clamp and the magnifier lens assembly.
• View through lens is blurry or unclear:
  • Clean the magnifier lens using a soft, lint-free cloth.
  • Adjust the distance between the lens and the object being viewed to find the optimal focal point.

Product Specifications

Warranty and Support

For warranty information or technical support regarding your Velleman VTMG5 magnifier, please refer to the documentation provided with your purchase or visit the official Velleman website. Contact their customer service for assistance with product inquiries, troubleshooting, or replacement parts.
