Introduction
The Gardena Classic Spray Sprinkler Fox is designed for efficient and gentle watering of small areas. This manual provides comprehensive instructions for the setup, operation, and maintenance of your sprinkler to ensure optimal performance and longevity.
Product Overview
The Gardena Classic Spray Sprinkler Fox (Model 1951-20) is a fixed spray sprinkler ideal for watering small lawns, flower beds, and front gardens. It features a stable spike for secure placement and a gentle spray mist suitable for sensitive plants.
Image: Gardena Classic Spray Sprinkler Fox, showing its compact design and integrated spike.
Key Features:
- Gentle Spray Mist: Produces a fine spray jet, ideal for watering sensitive or freshly sowed plants.
- Small Area Coverage: Waters areas up to 100 m² with a maximum diameter of 11 meters. The watering diameter can be reduced by adjusting water pressure.
- Secure Placement: Equipped with a stable spike for firm and effortless fixing in lawns or garden beds.
- Mobile and Flexible: Easily moved to different locations for versatile watering.
- Durable Construction: Made from high-quality plastic for long-lasting use.
Setup Instructions
- Unpack: Carefully remove the Gardena Classic Spray Sprinkler Fox from its packaging.
- Connect Hose: Attach your garden hose to the sprinkler's inlet connection. Ensure a tight fit to prevent leaks.
- Position Sprinkler: Insert the integrated spike firmly into the ground or lawn in the desired watering area. Ensure the sprinkler is upright and stable.
- Check Placement: Verify that the sprinkler is positioned to cover the intended area without obstruction.
Image: The Gardena Classic Spray Sprinkler Fox actively watering a lawn, demonstrating its spray pattern.
Operating Instructions
- Turn on Water: Slowly turn on the water supply to your garden hose.
- Adjust Water Pressure: The watering diameter and intensity can be adjusted by varying the water pressure.
- Higher Pressure: Increases the watering diameter up to 11 meters.
- Lower Pressure: Reduces the watering diameter and provides a gentler spray, suitable for delicate plants or smaller areas.
- Monitor Watering: Observe the spray pattern to ensure even coverage of your desired area. Adjust the sprinkler's position or water pressure as needed.
- Turn off Water: Once watering is complete, turn off the water supply.
Maintenance
The Gardena Classic Spray Sprinkler Fox is designed with minimal moving parts for durability. Regular maintenance will help ensure its continued performance.
- Cleaning Nozzles: If the spray pattern becomes uneven or reduced, the nozzles may be partially blocked. Disconnect the water supply and carefully clear any debris from the spray jets using a small, pointed object like a cocktail stick.
- Storage: During colder months or when not in use for extended periods, disconnect the sprinkler from the hose, drain any remaining water, and store it in a dry, frost-free location.
- General Cleaning: Wipe the exterior of the sprinkler with a damp cloth to remove dirt and grime.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven or reduced spray pattern | Blocked nozzles or insufficient water pressure. | Clean the spray nozzles (see Maintenance section). Increase water pressure if possible. |
| Water leakage at hose connection | Loose connection or damaged washer. | Ensure the hose is securely tightened. Check and replace the rubber washer if damaged. |
| Sprinkler does not stay upright | Spike not fully inserted or ground is too soft. | Push the spike deeper into the ground. If the ground is too soft, consider placing a flat stone or support around the base. |
Specifications

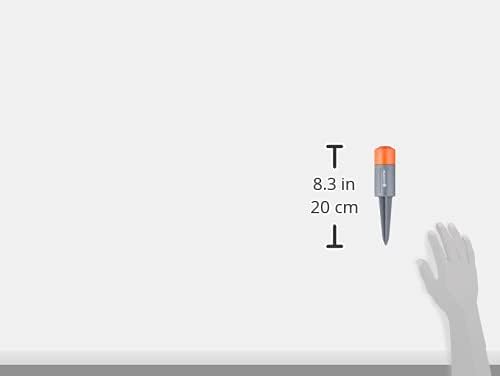

Image: Diagram showing the dimensions of the Gardena Classic Spray Sprinkler Fox.
- Brand: Gardena
- Model Number: 1951-20
- Style: Fixed Spray
- Material: Plastic
- Item Dimensions (L x W x H): Approximately 11.81 x 4.53 x 1.77 inches (30 x 11.5 x 4.5 cm)
- Maximum Watering Diameter: 11 meters (36 feet)
- Maximum Watering Area: 100 m² (1076 sq ft)
- Maximum Flow Rate: 15 Liters Per Minute
Warranty Information
The Gardena Classic Spray Sprinkler Fox (Model 1951-20) comes with a 5-year Gardena warranty. This warranty covers manufacturing defects and material faults under normal use. Please retain your proof of purchase for warranty claims. For full terms and conditions, please refer to the official Gardena website or contact customer support.
Support
For further assistance, technical support, or to inquire about replacement parts, please contact Gardena customer service:
- Website: www.gardena.com
- Customer Service: Refer to the Gardena website for local contact information (phone numbers, email).
When contacting support, please have your product model number (1951-20) and proof of purchase readily available.
