Holmes HH970A Utility Heater with Comfort Control Thermostat Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation of your Holmes HH970A Utility Heater. Please read all instructions carefully before use and retain this manual for future reference. This utility heater is designed to provide supplemental heat with its powerful output and durable construction.

Important Safety Instructions

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles when moving this heater.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
• Do not use outdoors.
• This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
• This heater includes an automatic shut-off feature to prevent overheating, an overheat back-up fuse, and instant tip-over protection.

Product Features

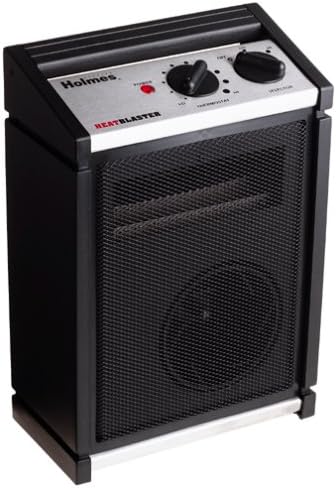

Figure 1: Holmes HH970A Utility Heater, front view. This image shows the overall design of the heater, including the front grille, top control panel, and integrated carrying handle.

• Two Power Settings: Offers 750 watts (LO) and 1500 watts (HI) for versatile heating.
• Adjustable Comfort Control Thermostat: Allows you to set and maintain your desired room temperature.
• Front Flow Fan System: Efficiently draws in cool air and distributes heated air from the front grille.
• Durable Construction: Features cool-touch metal and plastic housing for safety and longevity.
• Safety Features: Includes automatic shut-off, an overheat back-up fuse, and instant tip-over protection.
• Portability: Equipped with a built-in carrying handle for easy relocation.

Setup

1. Unpack: Carefully remove the heater from its packaging. Retain packaging for off-season storage.
2. Placement: Place the heater on a firm, level surface. Ensure it is at least 3 feet (0.9 m) away from any walls, furniture, curtains, or other combustible materials. Do not place it on soft surfaces like rugs or carpets that could block the air intake.
3. Power Connection: Ensure the heater is turned to the "OFF" position. Plug the power cord directly into a grounded 120V AC electrical outlet. Do not use extension cords or power strips.

Operating Instructions

Figure 2: Control panel of the Holmes HH970A Utility Heater. This image highlights the power indicator light, thermostat dial, and selector dial for power settings.

1. Power On: With the heater plugged in, turn the SELECTOR dial from "OFF" to either "LO" (750 watts) or "HI" (1500 watts) for your desired heat output. The power indicator light will illuminate.
2. Set Thermostat: Turn the THERMOSTAT dial to the "HI" setting. Once the room reaches your desired comfort level, slowly turn the thermostat dial counter-clockwise until the heater turns off. The heater will now cycle on and off automatically to maintain this temperature.
3. Power Off: To turn off the heater, rotate the SELECTOR dial to the "OFF" position. Unplug the heater from the wall outlet when not in use.

Maintenance

Regular maintenance ensures optimal performance and longevity of your heater.

• Cleaning: Always unplug the heater before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or immerse the heater in water.
• Grille Cleaning: Periodically clean the air intake and output grilles with a vacuum cleaner brush attachment to remove dust and lint.
• Storage: When storing the heater, keep it in a cool, dry location. It is recommended to store it in its original packaging to protect it from dust and damage.

Troubleshooting

Specifications

• Model Number: HH970A
• Manufacturer: Holmes
• Product Dimensions: 14.6 x 10.3 x 5.8 inches
• Item Weight: 5.91 pounds
• Heating Method: Fan & Forced Air
• Power Settings: 750W (LO), 1500W (HI)
• Voltage: 120V AC

Warranty and Support

This Holmes HH970A Utility Heater is covered by a 5-year limited warranty from the date of purchase. This warranty covers defects in material and workmanship under normal use.

For warranty service or technical support, please refer to the contact information provided with your product packaging or visit the official Holmes website. Do not attempt to repair the heater yourself, as this may void the warranty and pose safety risks.
