JERDON Two-Sided Wall-Mounted Makeup Mirror (Model JP7506CF) Instruction Manual

1. Introduction

Thank you for choosing the JERDON Two-Sided Wall-Mounted Makeup Mirror, Model JP7506CF. This 8-inch circular mirror is designed for convenience and precision, offering both 1X and 5X magnification options. Its smooth 360-degree swivel and extendable arm allow for versatile positioning, making it an ideal addition to any bathroom or vanity area. The durable chrome finish ensures longevity and resistance to moisture.

Image 1.1: The JERDON Two-Sided Wall-Mounted Makeup Mirror, Model JP7506CF, showcasing its elegant chrome finish and dual-sided design.

2. Important Safety Information

Please read all safety instructions before installation and use.

• For safe handling, installation, and use of this mirror, please ensure that it is securely mounted to the wall using the provided hardware.
• Keep the mirror out of reach of children and pets.
• Be cautious of sharp edges and the mirror's weight during handling and installation.
• Follow all manufacturer instructions to avoid potential hazards.

3. Package Contents

Verify that all components are present before beginning installation:

• 1 x JERDON Two-Sided Wall-Mounted Makeup Mirror (Model JP7506CF)
• 1 x Wall Mount Arm Assembly
• 1 x Set of Mounting Hardware (screws, anchors)

4. Key Features

• Wall-Mount Convenience: Space-saving design with a 13.5-inch extendable arm.
• Swivel Design: Smooth 360-degree swivel for adjustable viewing angles.
• Dual Magnification: Features 1X for standard viewing and 5X for detailed tasks.
• Modern Style: Attractive chrome finish that complements various bathroom decors.
• Durable Construction: Designed to resist moisture and condensation.

5. Setup and Installation

The mirror is designed for wall mounting. Professional installation is recommended if you are unsure about the process.

1. Choose Location: Select a suitable wall location, ensuring it is a sturdy surface capable of supporting the mirror's weight and allowing full extension of the arm. Consider the desired height for comfortable use.
2. Mark Drilling Points: Hold the wall mount bracket against the wall at the chosen height. Use a pencil to mark the positions for drilling holes.
3. Drill Holes: Drill pilot holes at the marked positions. If drilling into drywall, use appropriate wall anchors. If drilling into a stud, anchors may not be necessary.
4. Attach Bracket: Secure the wall mount bracket to the wall using the provided screws and anchors. Ensure it is firmly attached and level.
5. Mount Mirror Arm: Attach the extendable arm assembly to the wall mount bracket.
6. Attach Mirror: Secure the mirror head to the end of the extendable arm. Ensure all connections are tight.

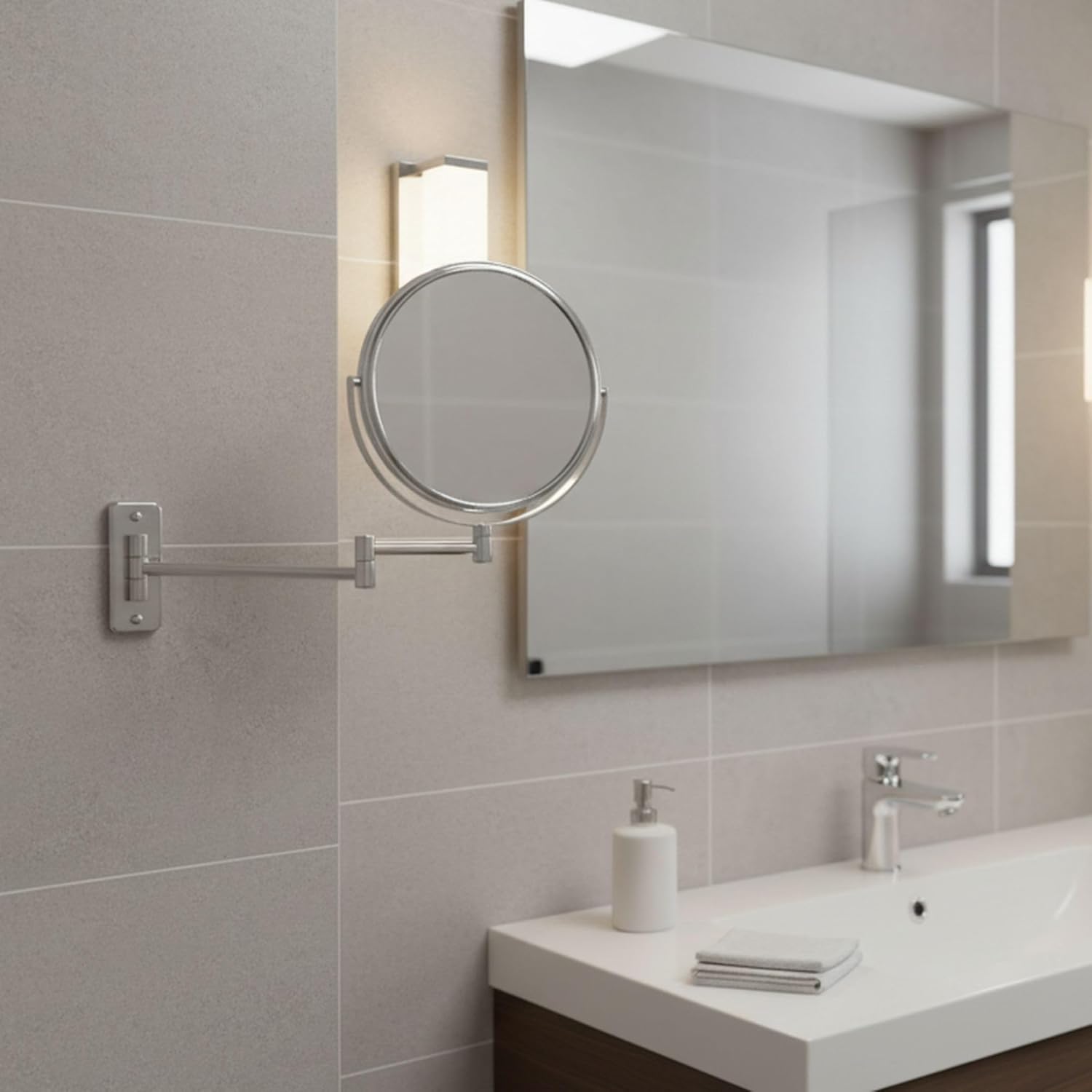

Image 5.1: The JERDON mirror installed on a bathroom wall, demonstrating its space-saving design.

Image 5.2: Product dimensions, highlighting the 8-inch mirror and 13.5-inch extension arm.

6. Operating Instructions

• Extending and Retracting: Gently pull the mirror away from the wall to extend the arm. Push it back towards the wall when not in use to save space.
• Swiveling: The mirror arm can swivel horizontally, allowing you to position the mirror precisely where needed.
• Adjusting Magnification: The mirror head rotates 360 degrees vertically. One side provides 1X (true image) magnification, suitable for general viewing. The other side offers 5X magnification for detailed tasks like makeup application, tweezing, or shaving. Simply flip the mirror head to switch between magnifications.

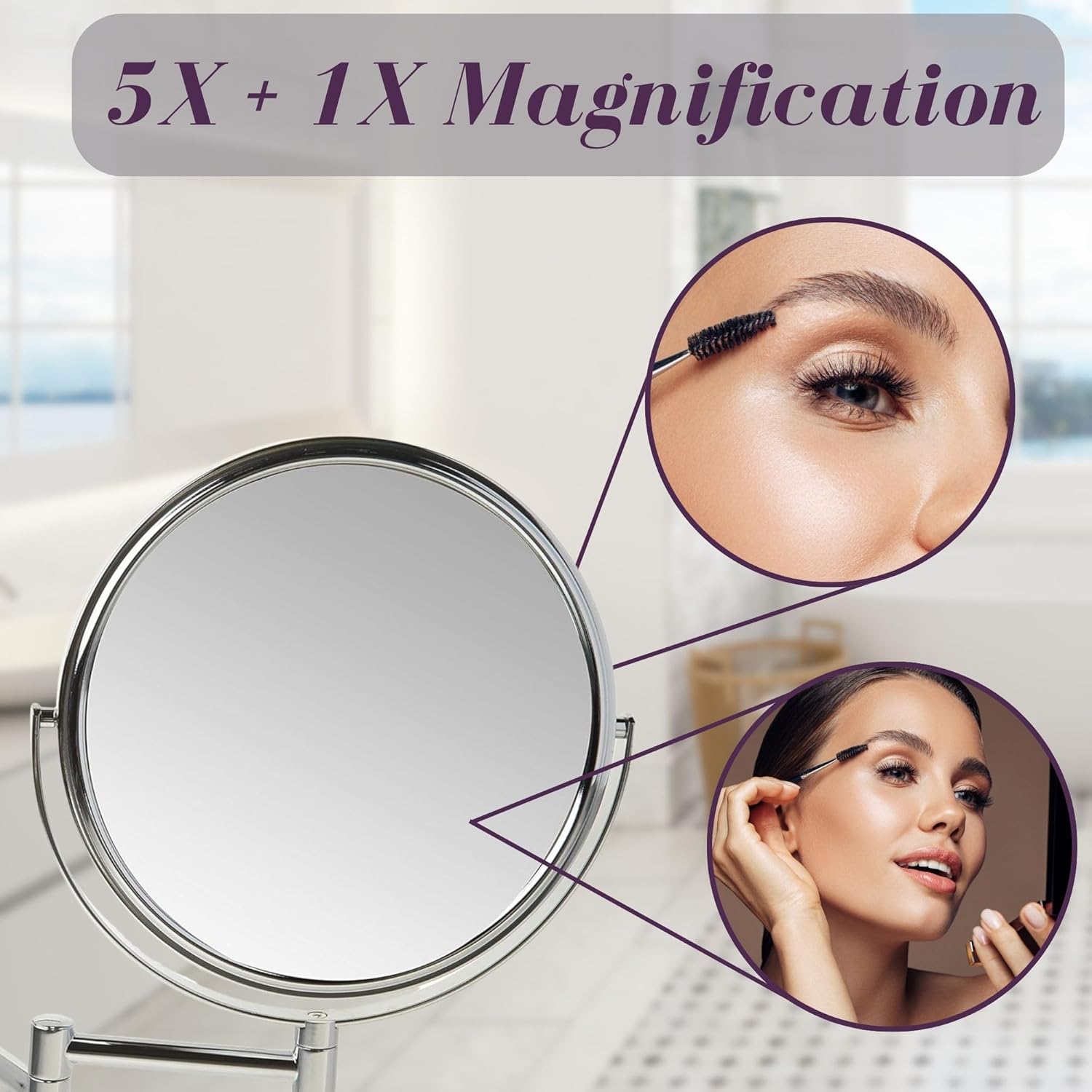

Image 6.1: Demonstrating the 5X magnification for precise makeup application.

Image 6.2: The mirror's extendable arm allows for flexible positioning.

7. Maintenance

• Cleaning the Mirror: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the edges.
• Cleaning the Finish: Wipe the chrome finish with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Regular Checks: Periodically check the mounting hardware to ensure it remains secure. Tighten any loose screws as needed.

8. Troubleshooting

If you encounter any issues with your mirror, please refer to the following common solutions:

• Mirror feels loose: Check the mounting screws on the wall bracket and the connections on the arm and mirror head. Tighten them gently but firmly.
• Difficulty swiveling/extending: Ensure no obstructions are blocking the arm's movement. The hinges are designed for smooth operation; avoid forcing them.
• Distorted image on magnified side: Magnified mirrors require you to be closer to the mirror for a clear, non-distorted image. Adjust your distance until the image is clear.

9. Specifications

10. Warranty and Support

This JERDON Makeup Mirror is protected under a 1-year limited warranty.

For further assistance, product information, or to explore other JERDON products, please visit the official JERDON Store: JERDON Store
