Speco VM-1401C 14-inch Color Video Monitor Instruction Manual

1. Introduction

Thank you for choosing the Speco VM-1401C 14-inch Color Video Monitor. This manual provides essential information for the proper installation, operation, and maintenance of your new monitor. Please read this manual thoroughly before using the product and retain it for future reference.

The VM-1401C is designed for professional video surveillance applications, offering a clear 14-inch color display with 420 lines of resolution and robust connectivity options.

2. Safety Information

To ensure safe operation and prevent damage, observe the following safety precautions:

• Power Source: Connect the monitor only to the type of power source indicated on the marking label.
• Ventilation: Do not block ventilation openings. Ensure adequate airflow around the monitor to prevent overheating.
• Moisture: Do not expose the monitor to rain or moisture to prevent fire or electric shock.
• Cleaning: Unplug the monitor from the wall outlet before cleaning. Use a soft, dry cloth. Do not use liquid or aerosol cleaners.
• Servicing: Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
• Placement: Place the monitor on a stable, level surface. Avoid placing it in direct sunlight or near heat sources.

3. Package Contents

Verify that all items are present in the package:

• Speco VM-1401C 14-inch Color Video Monitor
• AC Power Cord
• Instruction Manual (this document)

4. Setup

4.1 Unpacking and Placement

1. Carefully remove the monitor from its packaging.
2. Place the monitor on a sturdy, flat surface that can support its weight (approximately 40 pounds).
3. Ensure there is adequate space around the monitor for ventilation. Do not cover the ventilation slots.

4.2 Connecting the Monitor

The VM-1401C features a BNC camera input and composite video with loop-through capability.

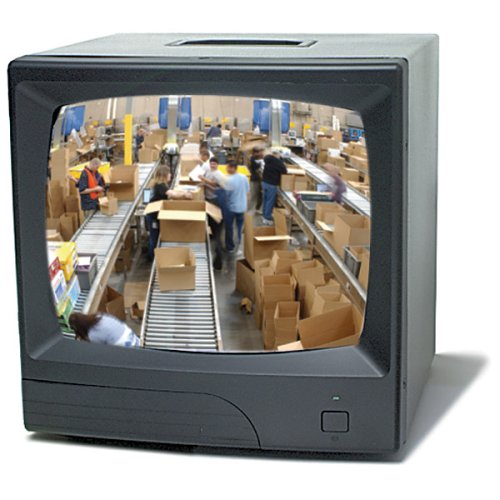

Image: Front view of the Speco VM-1401C 14-inch Color Video Monitor, showing the screen and front panel controls.

1. Power Connection: Connect the supplied AC power cord to the monitor's power input and then to a standard electrical outlet.
2. Video Input: Connect your video source (e.g., security camera, DVR) to the BNC IN connector on the rear panel of the monitor.
3. Video Loop-Through (Optional): If you need to connect the video signal to another monitor or device, use a BNC cable to connect the BNC OUT connector to the input of the next device.
4. Impedance Switch: Locate the High/Low impedance switch on the rear panel. For a single monitor connection or the last monitor in a loop, set it to HIGH. If looping through to another device, set it to LOW.

5. Operating

5.1 Powering On/Off

Press the POWER button located on the front panel to turn the monitor on or off. The power indicator light will illuminate when the monitor is on.

5.2 Front Panel Controls

The VM-1401C features convenient front panel controls for easy adjustment of picture settings:

• BRIGHTNESS: Adjusts the overall luminance of the image.
• CONTRAST: Adjusts the difference between the lightest and darkest areas of the image.
• COLOR: Adjusts the intensity of the colors.
• TINT: Adjusts the hue of the colors (primarily for NTSC signals).
• SHARPNESS: Adjusts the clarity and detail of the image.

Rotate the respective knobs to achieve your desired picture quality. Start with default settings and adjust as needed for your specific video source and viewing environment.

6. Maintenance

6.1 Cleaning the Monitor

Regular cleaning helps maintain optimal performance and appearance.

1. Ensure the monitor is powered off and unplugged from the power outlet.
2. Use a soft, dry, lint-free cloth to gently wipe the screen and cabinet.
3. For stubborn marks, slightly dampen the cloth with water. Do not use harsh chemicals, abrasive cleaners, or solvents.

6.2 Storage

If storing the monitor for an extended period, ensure it is:

• Stored in a cool, dry place.
• Protected from dust and extreme temperatures.
• Kept in its original packaging if possible, to prevent damage.

7. Troubleshooting

If you encounter issues with your VM-1401C monitor, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

Key technical specifications for the Speco VM-1401C monitor:

• Model: VM-1401C
• Screen Size: 14 Inches
• Resolution: 420 Lines
• Connectivity: 1 BNC Camera Input, Composite Video with Loop Through
• Impedance: High/Low Switchable
• Controls: Front Panel (Brightness, Contrast, Color, Tint, Sharpness)
• Cabinet: Rugged Black Metal
• Item Weight: Approximately 40 Pounds
• Manufacturer: CSI

9. Warranty and Support

Speco products are designed for reliability and performance. This product is covered by a limited warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Speco website.

For technical support, service, or warranty claims, please contact your authorized Speco dealer or Speco customer service. Have your model number (VM-1401C) and purchase information ready when contacting support.

Speco Technologies Contact Information:
(Please refer to the official Speco website or your purchase documentation for current contact details.)
