1. Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions before operating this appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or heating element in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended household use.
- WARNING: Never cover the grill with anything while in operation, as this can cause heat to build up and damage the unit.
2. Product Overview
The Rival 5730M Smokeless Indoor Grill is designed for convenient indoor grilling, providing a grilled flavor without excessive smoke. It features a powerful 830-watt heating element and a chrome-plated steel grill surface.
Figure 1: Full view of the Rival 5730M Smokeless Indoor Grill, showing the main unit and its detachable power cord.

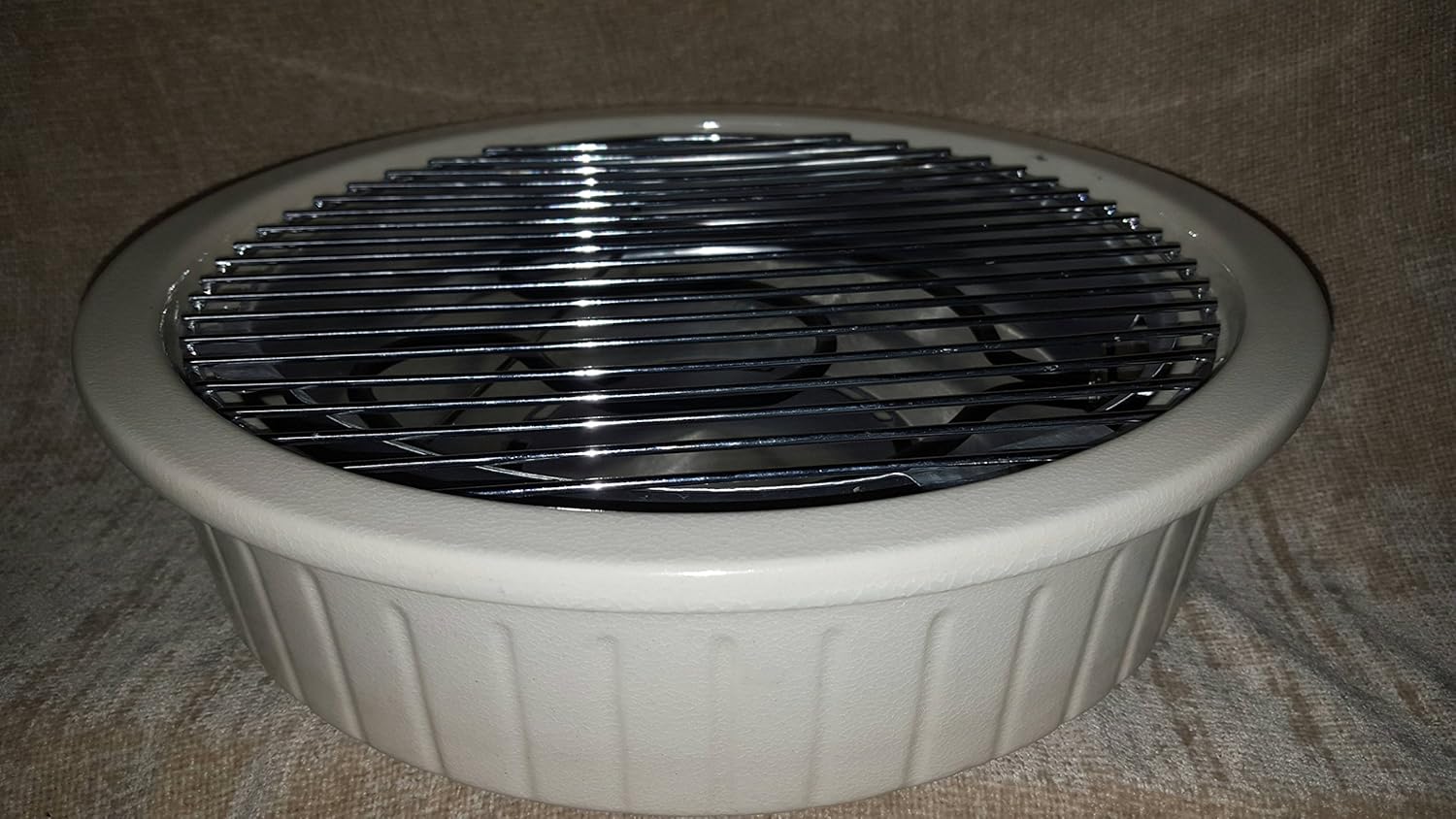

Figure 2: Angled view of the grill, highlighting the ceramic-like base and the chrome-plated steel grill grate.
Figure 3: Top-down view of the grill, clearly showing the heating element beneath the removable grill grate.
Components:
- Grill Grate: Chrome-plated steel surface for cooking.
- Heating Element: 830-watt element for quick and even heating.
- Drip Pan/Base: Collects drippings during cooking.
- Power Cord: Detachable for easy storage.
3. Setup
- Unpack: Carefully remove all packaging materials and any promotional labels from the grill. Retain packaging for future storage or transport if needed.
- Initial Cleaning: Before first use, wash the grill grate and drip pan in warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the base unit with a damp cloth. Do not immerse the base unit or power cord in water.
- Assemble: Place the drip pan securely into the base unit. Position the heating element over the drip pan, ensuring it sits correctly. Place the grill grate on top of the heating element and drip pan, making sure it is stable.
- Placement: Place the assembled grill on a stable, heat-resistant, and level surface, such as a countertop or table. Ensure there is adequate clearance around the grill for ventilation.
- Connect Power: Insert the power cord into the grill's receptacle, then plug the cord into a standard 110-120V AC electrical outlet.
4. Operating Instructions
The Rival 5730M grill is designed for simple operation. It features a single heat setting optimized for grilling.
- Preheating: Plug in the grill. The heating element will begin to heat immediately. Allow the grill to preheat for approximately 5-10 minutes to reach optimal cooking temperature.
- Cooking: Carefully place food directly onto the preheated grill grate. The 11-inch diameter surface can accommodate up to four jumbo burgers or a comparable amount of chicken, steak, or fish.
- Monitoring: Turn food as needed to ensure even cooking. Cooking times will vary depending on the type and thickness of the food.
- Smokeless Feature: The design of the grill helps to minimize smoke, making it suitable for indoor use. Ensure the drip pan is in place to catch any fats or liquids.
- After Cooking: Once cooking is complete, unplug the grill from the wall outlet. Allow the grill to cool completely before handling or cleaning.
Note: For best results and to prevent damage, do not cover the grill with a lid or any other object while it is operating.
5. Cleaning and Maintenance
Regular cleaning ensures the longevity and optimal performance of your Rival Indoor Grill.
- Cool Down: Always ensure the grill is completely unplugged and cooled down before attempting to clean it.
- Disassemble: Carefully remove the grill grate and the drip pan from the base unit.
- Clean Grill Grate and Drip Pan: Wash the grill grate and drip pan in warm, soapy water. For stubborn food residue, you may soak them for a short period. Use a non-abrasive sponge or brush. These parts are generally dishwasher safe, but hand washing is recommended to prolong their life.
- Clean Base Unit: Wipe the exterior of the base unit with a damp cloth. Do not immerse the base unit or the heating element in water or any other liquid. Ensure no water enters the electrical components.
- Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing the grill.
- Storage: Store the grill in a clean, dry place when not in use.
6. Troubleshooting
If you encounter issues with your Rival 5730M Smokeless Indoor Grill, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Grill does not heat up. | Not plugged in; power outlet malfunction; damaged cord/element. | Ensure grill is securely plugged into a working outlet. Check household circuit breaker. If cord or element is damaged, do not use; contact customer support. |
| Excessive smoke during cooking. | Drip pan not in place or full; fatty foods; grill not clean. | Ensure drip pan is correctly positioned and empty. Trim excess fat from meats. Clean grill grate and drip pan thoroughly before use. Ensure proper ventilation. |
| Food not cooking evenly. | Grill not preheated sufficiently; uneven food placement. | Allow grill to preheat for the recommended 5-10 minutes. Arrange food in a single layer and turn as needed for even cooking. |
| Cracked base (ceramic). | Overheating due to obstruction; physical impact. | Do not cover the grill during operation. If the base is cracked, discontinue use if it affects safety or function (e.g., leaks). Contact customer support for replacement options. |
If the problem persists after trying these solutions, please contact Rival customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Rival |
| Model Number | 5730M (Item model number: 257125) |
| Special Feature | Smokeless |
| Fuel Type | Electric |
| Recommended Use | Indoor |
| Finish Type | Polished |
| Included Components | Chrome-plated steel grill |
| Assembly Required | No |
| Material | Steel (Frame Material: Alloy Steel) |
| Item Weight | 8.94 Pounds |
| Heating Power | 830 Watts |
| Installation Type | Countertop |
| Voltage | 110-120 Volts |
| Cooking Surface Area | Approx. 95.03 Square Inches (11 inches diameter) |
| Number of Racks | 1 |
| Heating Elements | 1 |
| Package Dimensions | 16.8 x 15.2 x 5.6 inches |
| UPC | 073056003998 |
| Date First Available | September 30, 2002 |
8. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or contact Rival directly. As this product was first available in 2002, specific warranty terms may vary or have expired. However, support for product inquiries may still be available.
You can typically find contact information for Rival (Sunbeam Products, Inc.) on their official website or through the retailer where the product was purchased.
When contacting support, please have your model number (5730M or 257125) and purchase date available.
