HON basyx 434LL 400 Series 4-Drawer Lateral File Instruction Manual

Introduction

The HON basyx 434LL 400 Series Four-Drawer Lateral File is designed to provide commercial office quality storage within a home-office budget. This four-drawer, 30-inch wide model features a tamper-resistant enclosed base and is capable of accepting both letter and legal hanging file folders. It comes equipped with molded polymer handles and a standard Putty finish.

Safety Information

• Always open only one drawer at a time to prevent the cabinet from tipping over.
• Do not overload the cabinet. This unit is designed for light-duty use.
• Ensure the cabinet is placed on a level surface. Use the leveling glides to adjust for uneven floors.

Features

• Space-Saving Design: Compact size ideal for small businesses or home offices, helping to organize and free up workspace.
• Smooth and Quiet Operation: Features ball-bearing full-suspension drawers that open and close quietly and smoothly. Four vertical reinforcements ensure cabinet sturdiness.
• Easy Organization: Includes side-to-side rails to accommodate both letter and legal size hanging file folders. File dividers can also be used for neat organization.
• Replaceable Locks: Equipped with removable lock cores, allowing for replacement when needed to maintain security.
• Anti-Tipping Mechanism: A mechanical interlock system prevents more than one drawer from being opened at a time, significantly reducing the risk of tipping.
• Leveling Glides: Adjustable glides are included to ensure stability on uneven floor surfaces.

Setup

The HON basyx 434LL 400 Series Lateral File requires no assembly. Upon delivery, ensure the cabinet is placed in its desired location on a stable, level surface. Adjust the leveling glides located at the base of the cabinet to eliminate any wobbling. Ensure adequate space around the cabinet for full drawer extension and safe operation.

Operating Instructions

Opening and Closing Drawers

• Grasp the molded polymer handle firmly.
• Pull the drawer outward to open. The ball-bearing suspension system ensures a smooth glide.
• To close, push the drawer inward until it is fully seated.
• Due to the mechanical interlock, only one drawer can be opened at a time. If a drawer does not open, ensure all other drawers are fully closed.

Using the Locking Mechanism

• To lock the cabinet, ensure all drawers are fully closed.
• Insert the key into the lock cylinder located on the top drawer.
• Turn the key to the locked position (usually a quarter turn). Remove the key.
• To unlock, insert the key and turn it to the unlocked position.
• The lock secures all drawers simultaneously.

Maintenance

To maintain the appearance and functionality of your lateral file cabinet, wipe it with a damp cloth as needed. Avoid using harsh abrasive cleaners or solvents, as these may damage the finish. Periodically check the drawer slides for smooth operation and ensure the leveling glides are properly adjusted.

Troubleshooting

• Drawer will not open: Check if another drawer is already open. The mechanical interlock prevents multiple drawers from opening simultaneously. Ensure the cabinet is unlocked.
• Drawer is stiff or noisy: Inspect the drawer slides for any obstructions. Ensure the cabinet is on a level surface and the leveling glides are correctly adjusted.
• Cabinet wobbles: Adjust the leveling glides at the bottom of the cabinet until it is stable on the floor.
• Lock not engaging: Ensure all drawers are fully closed before attempting to lock the cabinet. If the issue persists, the lock core may need inspection or replacement.

Specifications

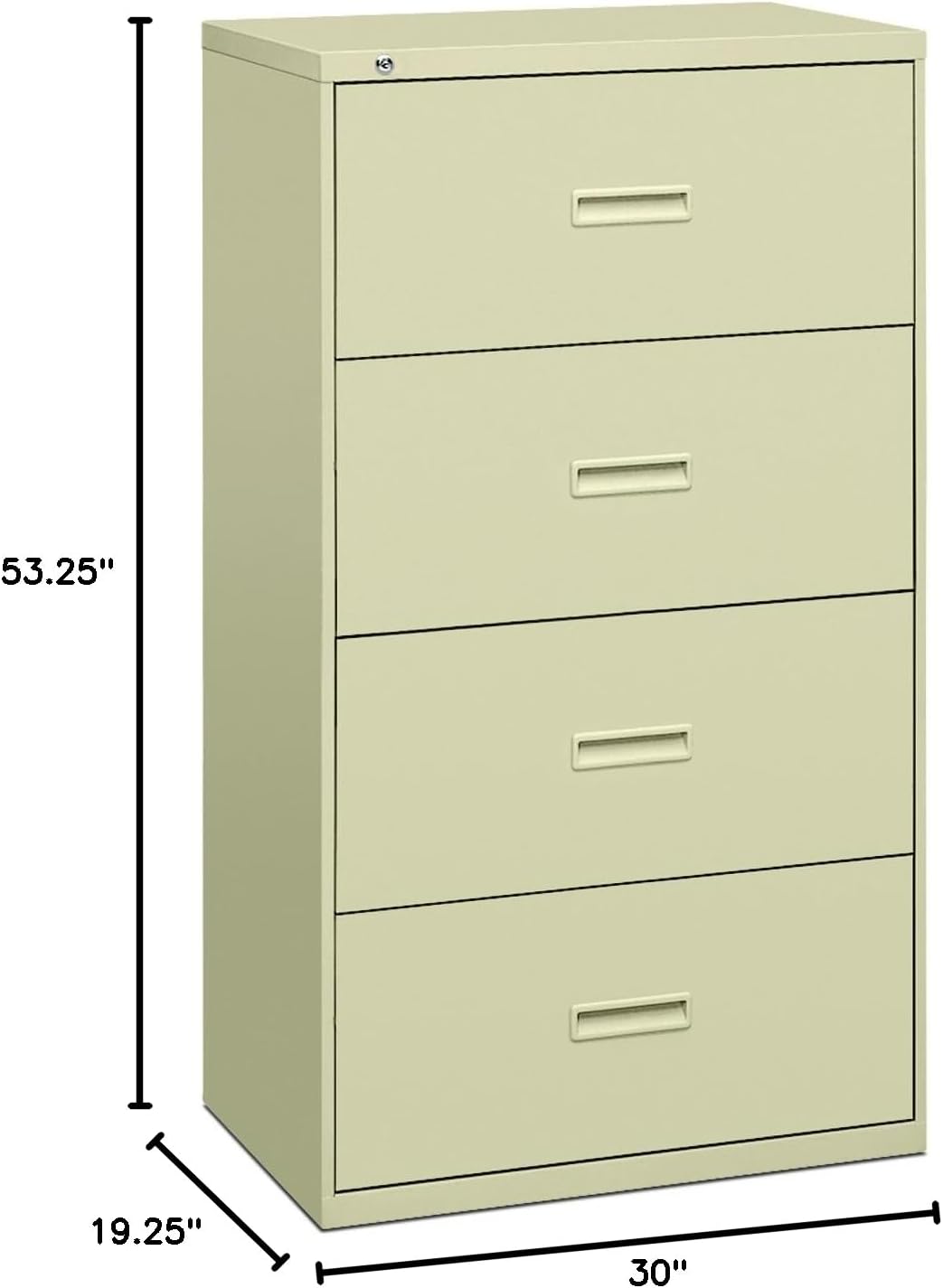

Dimensions Diagram

This image illustrates the key dimensions of the lateral file cabinet, including its depth, width, and height.

Warranty and Support

Warranty information for the HON basyx 434LL 400 Series Lateral File is not explicitly provided in the product details. For specific warranty terms and conditions, please contact HON customer support directly. For any product inquiries or technical assistance, refer to the manufacturer's official website or contact their customer service department.
