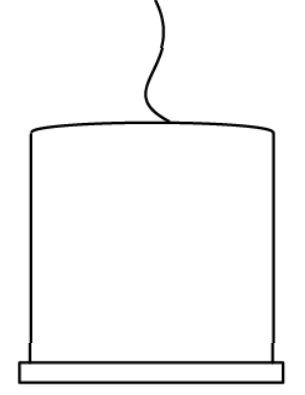

Arlux LIGHTING Ruby Fixed Spotlights Module
Included
Not Included
Integrated LED circuit
|
2700K |
4000K |
||
|
409628 |
409625 |
409626 |
409629 |
 |
ref.731503 ref.731505 ref.731509 |
ref.731511 ref.731516 ref.731517 |
 |
ref.731502 ref.731504 ref.731508 |
ref.731510 ref.731514 ref.731517 |
 |
 |
CRI |
 |
 |
 |
| 3297027313122 | 5W | > 80 | IP 20 | 230V | 8,2×4 cm |
| 3297027313139 | 5W | > 80 | IP 20 | 230V | 8,2×4 cm |
| 3297027313146 | 5W | > 80 | IP 20 | 230V | 8,2×4 cm |
| 3297027313153 | 5W | > 80 | IP 20 | 230V | 8,2×4 cm |
| 3297027313160 | 5W | > 80 | IP 20 | 230V | 8,2×4 cm |
| 3297027313177 | 5W | > 80 | IP 20 | 230V | 8,2×4 cm |
| 3297027314747 | 5W | > 80 | IP 20 | 230V | 8,2×4 cm |
| 3297027314754 | 5W | > 80 | IP 20 | 230V | 8×4 cm |
| 3297027314761 | 5W | > 80 | IP 20 | 230V | 8×4 cm |
| 3297027315027 | 5W | > 80 | IP 20 | 220-240V | 8,4×4 cm |
| 3297027315034 | 5W | > 80 | IP 20 | 220-240V | 8,4×4 cm |
| 3297027315041 | 5W | > 80 | IP 20 | 220-240V | 8,4×4 cm |
| 3297027315058 | 5W | > 80 | IP 20 | 220-240V | 8,4×4 cm |
| 3297027315065 | 5W | > 0 | IP 20 | 230V | 8,2×4 cm |
| 3297027315072 | 5W | > 80 | IP 20 | 230V | 8×4 cm |
| 3297027315089 | 5W | > 80 | IP 20 | 220-240V | 8,2×4 cm |
| 3297027315096 | 5W | > 80 | IP 20 | 220-240V | 8,4×4 cm |
| 3297027315102 | 5W | > 80 | IP 20 | 220-240V | 8,2×4 cm |
| 3297027315119 | 5W | > 80 | IP 20 | 220-240V | 8,4×4 cm |
| 3297027315140 | 5W | > 80 | IP 20 | 220-240V | 8,4×4 cm |
| 3297027315157 | 5W | > 80 | IP 20 | 220-240V | 8,4×4 cm |
| 3297027315164 | 5W | > 80 | IP 20 | 220-240V | 8,4×4 cm |
| 3297027315171 | 5W | > 80 | IP 20 | 220-240V | 8,4×4 cm |
| 3297027315188 | 5W | > 80 | IP 20 | 230V | 8×4 cm |
Safety Symbols
 |
Electrical products must not be thrown out with domestic waste. They must be taken to a communal collecting point for environmentally friendly disposal in accordance with local regulations. Contact your local authorities or stockiest for advice on recycling. |
 |
Product conforms to European Union D1rect1ves |
 |
For indoor use only |
 |
Class II, double insulated, earth less |
 |
Live: brown wire |
 |
Neutral: blue wire |
 |
Cannot be covered by an insulating material |
 |
Not compatible with a dimmer |
 |
Compatible with a 2-wire LED dimmer without neutral |

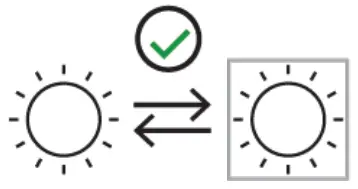

User replaceable light source
This product contains a light source of energy class F.
|
5W – 2700K: 999133 5W – 4000K: 999134 |
 |
5W – 2700K: 999135 5W -4000K : 999136 |
General safety instructions
- The installation of the product must be carried out by an electrician or any other qualified person and in accordance with the standards in force in the country of installation. To proceed with the installation or any maintenance or upkeep, turn off the electrical network.
- Do not look directly at the light source.
- Never touch the product when it is in use, or when it has just been turned off.
- Do not use a damaged or modified power cord to avoid any risk of fire, electric shock.
- Before use, make sure that the product has not been damaged. If deterioration is noted, do not use the product.
- The flexible outer cable or cord of this fixture cannot be replaced. If the cable is damaged, the luminaire must be recycled.
- Ensure that the fixed power cable of the luminaire has additional insulation before the luminaire can be connected.
- Guarantee from the date of purchase against manufacturing defects, breakdowns and malfunctions of the product, subject to installation in accordance with the installation rules in force and subject to use in accordance with the information in this manual. ‘use.
- This warranty does not cover defects and deterioration caused by improper use.
- During the Guarantee period, with proof of purchase of the item, contact the point of sale which will replace or reimburse the product concerned.
Instructions for use
