ARBOR EmETXe-i91U0 COM Express Compact Type 6 CPU Module
COM Express® Compact Type 6 CPU Module
- Form Factor
- COM Express® Compact Type 6 CPU Module
- CPU
- 8th Gen. Intel® Core™
- i7-8665UE/ i5-8365UE/
- i3-8145UE/ Celeron 4305UE
- Video
- 24-bit Dual Channels LVDS/ DDI/ Analog RGB
- LAN
- Intel® i219LM PCIe GbE PHY
- Audio
- HD Audio Link
- I/O
- USB / SATA/ PCIe / I2C/DIO / UART
Technical Support
- If you have any technical difficulties, please consult the user’s manual first on our website.
- http://www.arbor-technology.com
- Please do not hesitate to call or e-mail our customer service when you still can not find out the answer. E-mail: info@arbor.com.tw
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- COM Express supports seven pin-out Type applying to Basic and Extended form factors:
- Module Type 1 and 10 support single connector with two rows of pins (220 pins) Module Type 2, 3, 4, 5 and 6 support two connectors with four rows of pins (440 pins)
- Connector placement and most mounting holes have transparency between Form Factors.
- The differences among the Module Type 6 and EmETXe-i91U0 are summarized in table below:
| Module Type | Standard Type 6 | EmETXe-i91U0 |
| Connectors | 2 | 2 |
| Connector Rows | A, B, C, D | A, B, C, D |
| PCIe Lanes (Max) | 24 | 8 |
| LAN (Max) | 1 | 1 |
| Serial Ports (Max) | 2 | 2 |
| Digital Display I/F (Max) | 3 | 2 |
| USB 3.0 Ports (Max) | 4 | 4 |
Packing List
Before you begin installing your single board, please make sure that the following materials have been shipped:
 |
1 x EmETXe-i91U0 COM Express CPU Module |
 |
1 x Quick Installation Guide |
| If any of the above items is damaged or missing, contact your vendor immediately. | |
Specifications
| System | |
| CPU | Soldered onboard 8th Generation Intel® Core™
– i7-8665UE 1.7GHz (Base)/ 4.4GHz (Turbo) – i5-8365UE 1.6GHz (Base)/ 4.1GHz (Turbo) – i3-8145UE 2.2GHz (Base)/ 3.9GHz (Turbo) – Celeron 4305UE 2.2GHz processor |
| Memory | 2 x DDR4 SO-DIMM sockets |
| BIOS | AMI UEFI BIOS |
| Watchdog Timer | 1~255 levels reset |
| I/O | |
|
USB Port |
12 x USB ports:
– 8 x USB 2.0 ports – 4 x USB 3.1 ports |
| Serial Port | 2 x UART ports (RX/TX only) |
| Expansion Bus | 8 x PCIex1 lanes, I2C Interface |
| Digital I/O | 8-bit Digital Input/Output |
| Storage | 2 x Serial ATA ports
Soldered onboard eMMC 5.0 up to 32GB (OEM Request) |
| Ethernet Chipset | 1 x Intel® i219LM PCIe GbE PHY |
| Audio | HD audio link |
| TPM | Supports TPM (OEM Request) |
| Display | |
| Graphic Chipset | Integrated Intel® HD Graphics 620 |
|
Graphic Interface |
LCD: Dual Channels 24-bit LVDS |
| 2 x DDI ports or
1 x DDI port, 1 x Analog RGB port |
|
| Mechanical & Environmental | |
| Power Requirement | 8.5V~20V +/- 5% wide range voltage input, +5VSB |
| Power Consumption | 2.3A@12V (i7-8665UE typical, CPU module only) |
| Operating Temp. | -40 ~ 85ºC (-40 ~ 185ºF) |
| Operating Humidity | 10 ~ 95% @ 85ºC (non-condensing) |
| Dimensions (L x W) | 95 x 95 mm (3.7” x 3.7”) |
Ordering Information
| EmETXe-i91U0-WT-8665UE | 8th Generation Intel® Core™ i7-8665UE WT COM Express® Compact Type 6 CPU module, w/ DDI |
| EmETXe-i91U0-WT-8365UE | 8th Generation Intel® Core™ i5-8365UE WT COM Express® Compact Type 6 CPU module, w/ DDI |
| EmETXe-i91U0-WT-8145UE | 8th Generation Intel® Core™ i3-8145UE WT COM Express® Compact Type 6 CPU module-, w/ DDI |
| EmETXe-i91U0-WT-4305UE | 8th Generation Intel® Core™ Celeron 4305UE WT COM Express® Compact Type 6 CPU module, w/ DDI |
| EmETXe-i91U0-WT-8665UE-RGB | 8th Generation Intel® Core™ i7-8665UE WT COM Express® Compact Type 6 CPU module, w/ DDI+RGB |
| EmETXe-i91U0-WT-8365UE-RGB | 8th Generation Intel® Core™ i5-8365UE WT COM Express® Compact Type 6 CPU module, w/ DDI+RGB |
| EmETXe-i91U0-WT-8145UE-RGB | 8th Generation Intel® Core™ i3-8145UE WT COM Express® Compact Type 6 CPU module-, w/ DDI+RGB |
|
EmETXe-i91U0-WT-4305UE-RGB |
8th Generation Intel® Core™ Celeron 4305UE WT COM Express® Compact Type 6 CPU module,
w/ DDI+RGB |
| EmETXe-i91U0D-WT-8665UE
(OEM Request) |
8th Generation Intel® Core™ i7-8665UE COM Express® Compact Type 6 CPU module, w/ 32GB eMMC, DDI |
| EmETXe-i91U0D-WT-8365UE
(OEM Request) |
8th Generation Intel® Core™ i5-8365UE COM Express® Compact Type 6 CPU module, w/ 32GB eMMC, DDI |
| EmETXe-i91U0D-WT-8145UE
(OEM Request) |
8th Generation Intel® Core™ i3-8145UE COM Express® Compact Type 6 CPU module, w/ 32GB eMMC, DDI |
| EmETXe-i91U0D-WT-4305UE
(OEM Request) |
8th Generation Intel® Core™ Celeron 4305UE COM Express® Compact Type 6 CPU module, w/ 32GB eMMC, DDI |
| EmETXe-i91U0D-WT-8665UE-
RGB (OEM Request) |
8th Generation Intel® Core™ i7-8665UE COM Express® Compact Type 6 CPU module, w/ 32GB eMMC, DDI+RGB |
| EmETXe-i91U0D-WT-8365UE-
RGB (OEM Request) |
8th Generation Intel® Core™ i5-8365UE COM Express® Compact Type 6 CPU module, w/ 32GB eMMC, DDI+RGB |
| EmETXe-i91U0D-WT-8145UE-
RGB (OEM Request) |
8th Generation Intel® Core™ i3-8145UE COM Express® Compact Type 6 CPU module, w/ 32GB eMMC, DDI+RGB |
| EmETXe-i91U0D-WT-4305UE-
RGB (OEM Request) |
8th Generation Intel® Core™ Celeron 4305UE COM Express® Compact Type 6 CPU module, w/ 32GB eMMC, DDI+RGB |
Optional Accessories
| HS-91U0-F2-T | Heat spreader, threaded standoffs (bore hole) (95x95x11mm) |
| HS-91U0-F2-NT | Heat spreader, non-threaded standoffs (bore hole) (95x95x11mm) |
| HS-91U0-C1 | Heat sink with Fan (95x95x37.6mm) |
| PBE-1705-F1 | COM Express® Type 6 evaluation carrier board with SIO F71869ED module in ATX form factor |
| CBK-03-1705-00 | Cable kit
1 x SATA cable 2 x Serial port cables |
Driver (7.4A) Installation
To install the drivers, please visit our website at www.arbor.technology.com and download the driver pack from the product page.
| Driver | Path |
| Audio | \EmETXe-i91U0\Audio\Win10_Win8.1_Win8_Win7_WHQLx64 |
| Chipset | \EmETXe-i91U0\Chipset |
| LAN | \EmETXe-i91U0\Ethernet |
| Graphic | \EmETXe-i91U0\Graphic\igfx_win10_100.7212 |
| ME | \EmETXe-i91U0\ME |

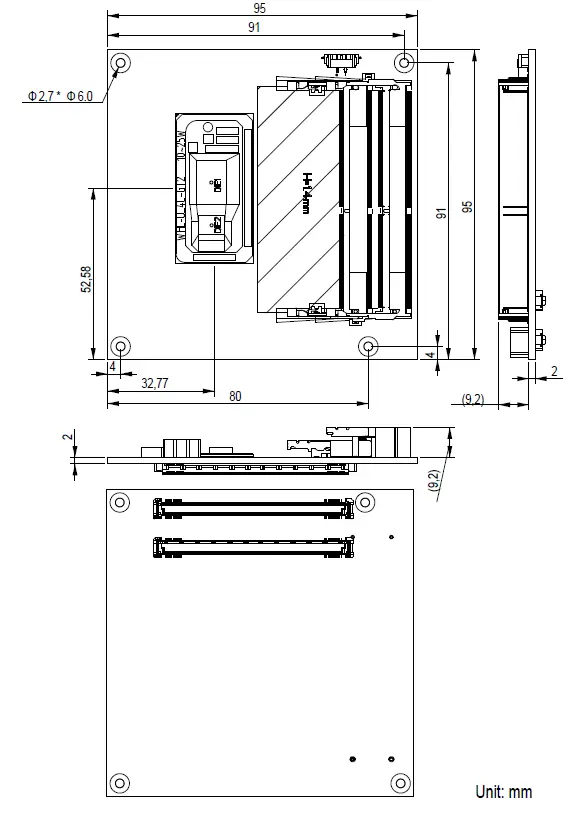

Board Dimensions
Connectors Quick Reference
Top Side

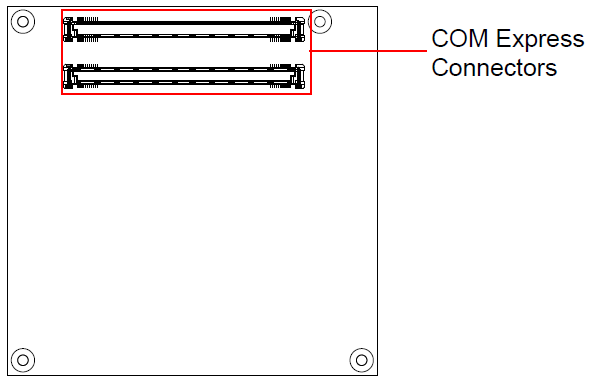

Bottom Side
FAN1: Fan connector
Connector type: Wafer 3-pin 1.25mm 85204-03X0L
| Pin | Description |
| 1 | GND |
| 2 | Fan out |
| 3 | Fan Tachometer Input |
COM Express AB Connector (bottom side)
|
B1 |
GND |
GND (FIXED) |
A1 |
| B2 | LAN_LED_ACT# | LAN1_MDI3N | A2 |
| B3 | LPC_FRAME# | LAN1_MDI3P | A3 |
| B4 | LPC_AD0 | LAN_LED_100# | A4 |
| B5 | LPC_AD1 | LAN_LED_1000# | A5 |
| B6 | LPC_AD2 | LAN1_MDI2N | A6 |
| B7 | LPC_AD3 | LAN1_MDI2P | A7 |
| B8 | LPC_LDRQ0- | LAN_LED_LNK# | A8 |
| B9 | LPC_LDRQ1- | LAN1_MDI1N | A9 |
| B10 | LPC_CLK | LAN1_MDI1P | A10 |
| B11 | GND | GND (FIXED) | A11 |
| B12 | CB_PWRBTN# | LAN1_MDI0N | A12 |
| B13 | SMB_CLK | LAN1_MDI0P | A13 |
| B14 | SMB_DATA | 0V9_LAN | A14 |
| B15 | SMB_ALERT# | SLP_S3# | A15 |
| B16 | SATA_TXP1 | SATA_TXP0 | A16 |
| B17 | SATA_TXN1 | SATA_TXN0 | A17 |
| B18 | SUS_STAT# | SLP_S4# | A18 |
| B19 | SATA_RXP1 | SATA_RXP0 | A19 |
| B20 | SATA_RXN1 | SATA_RXN0 | A20 |
| B21 | GND | GND (FIXED) | A21 |
| B22 | N/C | N/C | A22 |
| B23 | N/C | N/C | A23 |
| B24 | CB_PWROK | SLP_S5# | A24 |
| B25 | N/C | N/C | A25 |
| B26 | N/C | N/C | A26 |
| B27 | WDT | PM_BATLOW# | A27 |
| B28 | N/C | SEALED- | A28 |
| B29 | HDA_SDIN1 | HDA_SYNC | A29 |
| B30 | HDA_SDIN0 | HDA_RST- | A30 |
| B31 | GND | GND | A31 |
| B32 | SPCA | HDA_BIT_CLK | A32 |
| B33 | I2C_CLK | HDA_SDOUT | A33 |
| B34 | I2C_DAT | BIOS_DIS0# | A34 |
| B35 | THRM# | CB_TRIP# | A35 |
| B36 | USBP_7N | USBP_6N | A36 |
| B37 | USBP_7P | USBP_6P | A37 |
| B38 | USBOC_45- | USBOC_67- | A38 |
| B39 | USBP_5N | USBP_4N | A39 |
| B40 | USBP_5P | USBP_4P | A40 |
| B41 | GND | GND | A41 |
| B42 | USBP_3N | USBP_2N | A42 |
| B43 | USBP_3P | USBP_2P | A43 |
| B44 | USBOC_01- | USBOC_23- | A44 |
| B45 | USBP_1N | USBP_0N | A45 |
| B46 | USBP_1P | USBP_0P | A46 |
| B47 | PLTRST#_BUFF | VCC_RTC | A47 |
| B48 | EXCD1_CCPE# | PLTRST#_BUFF | A48 |
| B49 | CB_SYSRST# | EXCD0_CCPE# | A49 |
| B50 | CB_RESET# | LPC_SERIRQ | A50 |
| B51 | GND | GND | A51 |
| B52 | PCIE_RXP7 | PCIE_TXP7 | A52 |
| B53 | PCIE_RXN7 | PCIE_TXN7 | A53 |
| B54 | DIO_1 | DIO_0 | A54 |
| B55 | PCIE_RXP6 | PCIE_TXP6 | A55 |
|
B56 |
PCIE_RXN6 |
PCIE_TXN6 |
A56 |
| B57 | DIO_2 | GND | A57 |
| B58 | PCIE_RXP4 | PCIE_TXP4 | A58 |
| B59 | PCIE_RXN4 | PCIE_TXN4 | A59 |
| B60 | GND | GND | A60 |
| B61 | PCIE_RXP3 | PCIE_TXP3 | A61 |
| B62 | PCIE_RXN3 | PCIE_TXN3 | A62 |
| B63 | DIO_3 | DIO_1 | A63 |
| B64 | PCIE_RXP2 | PCIE_TXP2 | A64 |
| B65 | PCIE_RXN2 | PCIE_TXN2 | A65 |
| B66 | PCH_WAKE# | GND | A66 |
| B67 | EC_WAKE_IN# | DIO_2 | A67 |
| B68 | PCIE_RXP1 | PCIE_TXP1 | A68 |
| B69 | PCIE_RXN1 | PCIE_TXN1 | A69 |
| B70 | GND | GND | A70 |
| B71 | LVDSB_DATA0 | LVDSA_DATA0 | A71 |
| B72 | LVDSB_DATA0- | LVDSA_DATA0- | A72 |
| B73 | LVDSB_DATA1 | LVDSA_DATA1 | A73 |
| B74 | LVDSB_DATA1- | LVDSA_DATA1- | A74 |
| B75 | LVDSB_DATA2 | LVDSA_DATA2 | A75 |
| B76 | LVDSB_DATA2- | LVDSA_DATA2- | A76 |
| B77 | LVDSB_DATA3 | LVDS_VDD_EN | A77 |
| B78 | LVDSB_DATA3- | LVDSA_DATA3 | A78 |
| B79 | LVDS_BKLT_EN | LVDSA_DATA3- | A79 |
| B80 | GND | GND | A80 |
| B81 | LVDSB_CLK+ | LVDSA_CLK+ | A81 |
| B82 | LVDSB_CLK- | LVDSA_CLK- | A82 |
| B83 | COM_BKLT_CTRL | LVDS_DDC_CLK | A83 |
| B84 | VCC_5V_SBY | LVDS_DDC_DATA | A84 |
| B85 | VCC_5V_SBY | DIO_3 | A85 |
| B86 | VCC_5V_SBY | H_RCIN# | A86 |
| B87 | VCC_5V_SBY | A20GATE | A87 |
| B88 | BIOS_DIS1# | COM_EXP_CLK_P | A88 |
| B89 | N/C | COM_EXP_CLK_N | A89 |
| B90 | GND | GND | A90 |
| B91 | CRT_GREEN | +V3.3A | A91 |
| B92 | CRT_BLUE | SPI_MISO | A92 |
| B93 | CRT_HSYNC | DIO_0 | A93 |
| B94 | CRT_VSYNC | SPI_CLK | A94 |
| B95 | CRT_DDC_CLK | SPI_MOSI | A95 |
| B96 | CRT_DDC_DATA | COM_TMP_PP | A96 |
| B97 | SPI_CS1# | N/C | A97 |
| B98 | N/C | UART_TX0 | A98 |
| B99 | N/C | UART_RX0 | A99 |
| B100 | GND | GND | A100 |
| B101 | FAN_PWMOUT | UART_TX1 | A101 |
| B102 | FAN_TACHIN | UART_RX1 | A102 |
| B103 | SLEEP# | LID# | A103 |
| B104 | VCC_12V | VCC_12V | A104 |
| B105 | VCC_12V | VCC_12V | A105 |
| B106 | VCC_12V | VCC_12V | A106 |
| B107 | VCC_12V | VCC_12V | A107 |
| B108 | VCC_12V | VCC_12V | A108 |
| B109 | VCC_12V | VCC_12V | A109 |
| B110 | GND | GND | A110 |
COM Express CD Connector (bottom side)
|
D1 |
GND (FIXED) |
GND (FIXED) |
C1 |
| D2 | GND | GND | C2 |
| D3 | USB_SSTX0- | USB_SSRX0- | C3 |
| D4 | USB_SSTX0+ | USB_SSRX0+ | C4 |
| D5 | GND | GND | C5 |
| D6 | USB_SSTX1- | USB_SSRX1- | C6 |
| D7 | USB_SSTX1+ | USB_SSRX1+ | C7 |
| D8 | GND | GND | C8 |
| D9 | USB_SSTX2- | USB_SSRX2- | C9 |
| D10 | USB_SSTX2+ | USB_SSRX2+ | C10 |
| D11 | GND (FIXED) | GND (FIXED) | C11 |
| D12 | USB_SSTX3- | USB_SSRX3- | C12 |
| D13 | USB_SSTX3+ | USB_SSRX3+ | C13 |
| D14 | GND | GND | C14 |
| D15 | DDI1_CTRLCLK_AUX+ | N/C | C15 |
| D16 | DDI1_CTRLCLK_AUX- | N/C | C16 |
| D17 | N/C | RSVD | C17 |
| D18 | N/C | RSVD | C18 |
| D19 | PCIE_TX6+ | PCIE_RX6+ | C19 |
| D20 | PCIE_TX6- | PCIE_RX6- | C20 |
| D21 | GND(FIXED) | GND(FIXED) | C21 |
| D22 | PCIE_TX7+ | PCIE_RX7+ | C22 |
| D23 | PCIE_TX7- | PCIE_RX7- | C23 |
| D24 | N/C | DDI1_HPD | C24 |
| D25 | N/C | N/C | C25 |
| D26 | DDI1_PAIR0+ | N/C | C26 |
| D27 | DDI1_PAIR0- | RSVD | C27 |
| D28 | N/C | RSVD | C28 |
| D29 | DDI1_PAIR1+ | N/C | C29 |
| D30 | DDI1_PAIR1- | N/C | C30 |
| D31 | GND(FIXED) | GND (FIXED) | C31 |
| D32 | DDI1_PAIR2+ | DDI2_CTRLCLK_AUX+ | C32 |
| D33 | DDI1_PAIR2- | DDI2_CTRLCLK_AUX- | C33 |
| D34 | DDI1_DDC_AUX_SEL | DDI2_DDC_AUX_SEL | C34 |
| D35 | N/C | RSVD | C35 |
| D36 | DDI1_PAIR3+ | N/C | C36 |
| D37 | DDI1_PAIR3- | N/C | C37 |
| D38 | N/C | N/C | C38 |
| D39 | DDI2_PAIR0+ | N/C | C39 |
| D40 | DDI2_PAIR0- | N/C | C40 |
| D41 | GND(FIXED) | GND(FIXED) | C41 |
| D42 | DDI2_PAIR1+ | N/C | C42 |
| D43 | DDI2_PAIR1- | N/C | C43 |
| D44 | DDI2_HPD | N/C | C44 |
| D45 | N/C | RSVD | C45 |
| D46 | DDI2_PAIR2+ | N/C | C46 |
| D47 | DDI2_PAIR2- | N/C | C47 |
| D48 | N/C | RSVD | C48 |
| D49 | DDI2_PAIR3+ | N/C | C49 |
| D50 | DDI2_PAIR3- | N/C | C50 |
| D51 | GND (FIXED) | GND (FIXED) | C51 |
| D52 | N/C | N/C | C52 |
| D53 | N/C | N/C | C53 |
| D54 | PEG_LANE_RV# | N/C | C54 |
| D55 | N/C | N/C | C55 |
|
D56 |
N/C |
N/C |
C56 |
| D57 | TYPE2# | N/C | C57 |
| D58 | N/C | N/C | C58 |
| D59 | N/C | N/C | C59 |
| D60 | GND (FIXED) | GND (FIXED) | C60 |
| D61 | N/C | N/C | C61 |
| D62 | N/C | N/C | C62 |
| D63 | N/C | N/C | C63 |
| D64 | N/C | N/C | C64 |
| D65 | N/C | N/C | C65 |
| D66 | N/C | N/C | C66 |
| D67 | N/C | N/C | C67 |
| D68 | N/C | N/C | C68 |
| D69 | N/C | N/C | C69 |
| D70 | GND (FIXED) | GND (FIXED) | C70 |
| D71 | N/C | N/C | C71 |
| D72 | N/C | N/C | C72 |
| D73 | GND | GND | C73 |
| D74 | N/C | N/C | C74 |
| D75 | N/C | N/C | C75 |
| D76 | GND | GND | C76 |
| D77 | N/C | N/C | C77 |
| D78 | N/C | N/C | C78 |
| D79 | N/C | N/C | C79 |
| D80 | GND (FIXED) | GND (FIXED) | C80 |
| D81 | N/C | N/C | C81 |
| D82 | N/C | N/C | C82 |
| D83 | N/C | N/C | C83 |
| D84 | GND | GND | C84 |
| D85 | N/C | N/C | C85 |
| D86 | N/C | N/C | C86 |
| D87 | GND | GND | C87 |
| D88 | N/C | N/C | C88 |
| D89 | N/C | N/C | C89 |
| D90 | GND (FIXED) | GND (FIXED) | C90 |
| D91 | N/C | N/C | C91 |
| D92 | N/C | N/C | C92 |
| D93 | GND | GND | C93 |
| D94 | N/C | N/C | C94 |
| D95 | N/C | N/C | C95 |
| D96 | GND | GND | C96 |
| D97 | N/C | N/C | C97 |
| D98 | N/C | N/C | C98 |
| D99 | N/C | N/C | C99 |
| D100 | GND (FIXED) | GND (FIXED) | C100 |
| D101 | N/C | N/C | C101 |
| D102 | N/C | N/C | C102 |
| D103 | GND | GND | C103 |
| D104 | VCC_12V | VCC_12V | C104 |
| D105 | VCC_12V | VCC_12V | C105 |
| D106 | VCC_12V | VCC_12V | C106 |
| D107 | VCC_12V | VCC_12V | C107 |
| D108 | VCC_12V | VCC_12V | C108 |
| D109 | VCC_12V | VCC_12V | C109 |
| D110 | GND (FIXED) | GND (FIXED) | C110 |
Documents / Resources
 |
ARBOR EmETXe-i91U0 COM Express Compact Type 6 CPU Module [pdf] Installation Guide EmETXe-i91U0 COM Express Compact Type 6 CPU Module, EmETXe-i91U0, EmETXe-i91U0 Type 6 CPU Module, COM Express Compact Type 6 CPU Module, Type 6 CPU Module, CPU Module, Module |
