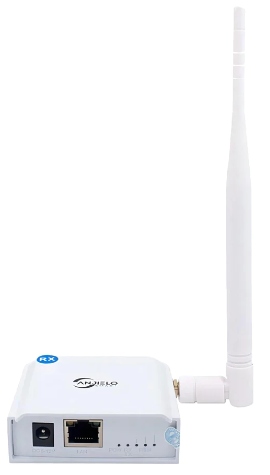

Anjielo Smart Technology ETHERNET AIR Wireless Signal Wall Through Ethernet Connector
Product Usage Instructions
Installation
Drill a hole and screw the Ethernet Air onto the wall. Ensure it is securely mounted for optimal performance.
Connecting the Device
- Plug in the RJ45 cable to establish a network connection.
- Connect the power supply (DC12V1A) to power on the device.
Mode Switching
Use the mode switching switch to toggle between Receiver (RX) and Transmitter (TX) modes based on your requirements.
Pairing and Setup
Press the pairing button for automatic connection between devices. Follow the user manual for detailed setup instructions.
Network Configuration
Configure the Ethernet Air as a Wi-Fi bridge to extend network coverage, suitable for multi-floor setups.
General Information
Plug And Play, Automatic Connected
Install the Ethernet Air
Before You Begin Check Out All
Detailed Technical Specifications
- Connectivity: Wi-Fi Halow security protocol
- Transmission Distance: Max 10000ft with the 1080P video
- Penetration Ability: 3-4 concrete walls
- Power: 12V/1ADC
- Operation Temperature: -50F-1200F(-200C-480C)
- Size: 114mmX84mmX30mm
- Antenna: length 19cm with 2dBi gain
- Warranty: 12 months Parts and Lifetime Purchase Protection
- FCC ID: 2AZlK-AH9066
Wireless Signal Wall-through Ethernet Connector — ETHERNET AIR
First omnidirectional Antenna Network Bridge with 10000ft transmission distance
FCC Statement
- This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
- Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Frequently Asked Questions
- Q: What is the maximum transmission distance of the Ethernet Air?
A: The Ethernet Air can transmit up to 10000ft (350m) with a clear line of sight. - Q: How do I switch between receiver and transmitter modes?
A: Use the mode switching switch located on the device to change between RX (receiver) and TX (transmitter) modes. - Q: What is included in the package of Ethernet Air?
A: The package includes Ethernet Air x1, self-tapping screws x2, colloidal particles x2, ethernet cable x1, 12V1A power adapter x1, and omnidirectional antenna x1.
