RB5
Relay Module
Specifications:
- 6VDC or 12VDC selectable operation.
- Turn SW1 OFF for 12VDC operation.
Turn SW1 ON for 6VDC operation. - Current draw: 120mA.
- 5A/220VAC or 28VDC DPDT contacts.
- Snap track mountable (order part # ST1).
Board Dimensions (approximate): 2.75”L x 2”W x 1”H

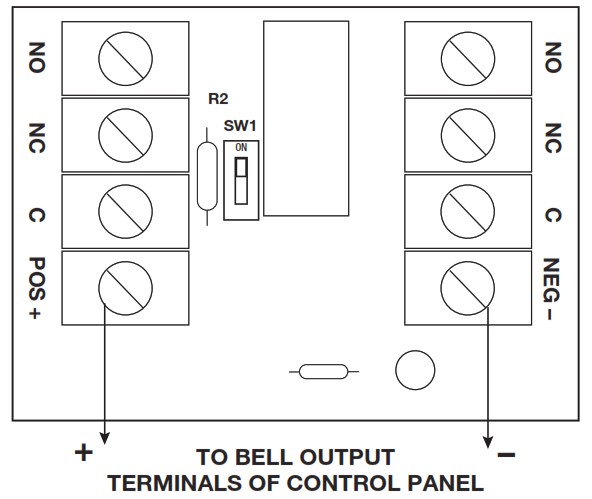

Dry Contacts

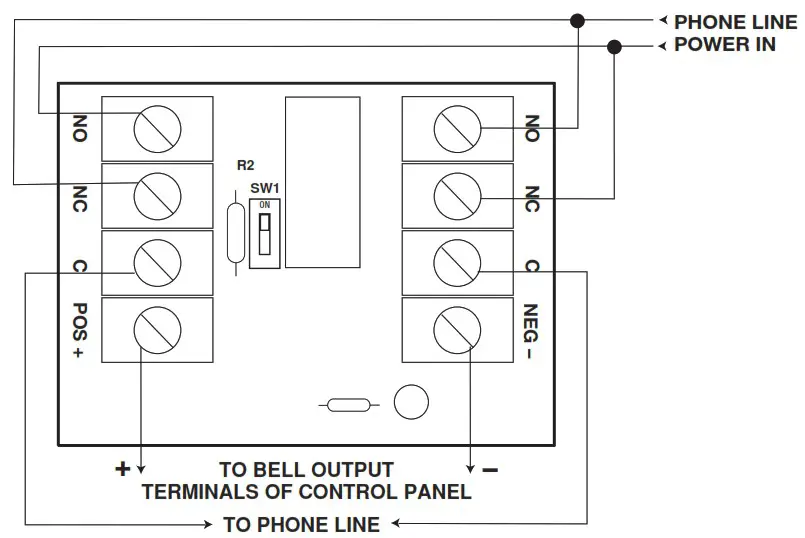

Polarity Reversal
Latching Dry Contacts
Line Seizure
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IIRB5 – Rev. 122804 F21U
