RDC48
Relay and Base Module

Specifications:

• UL and cUL Recognized.
• CE – European Conformity.
• 48VDC operation.
• Current draw: 20mA.
• 10A/220VAC or 28VDC DPDT contacts.
• DIN Rail mountable.
  Dimensions (W x D x H): 3.125″ x 1.375″ x 2.375″ (79.4mm x 35mm x 86mm).

Installation Instructions:

1. Mount RDC48 in the desired location.
2. Plug-in relay into base.

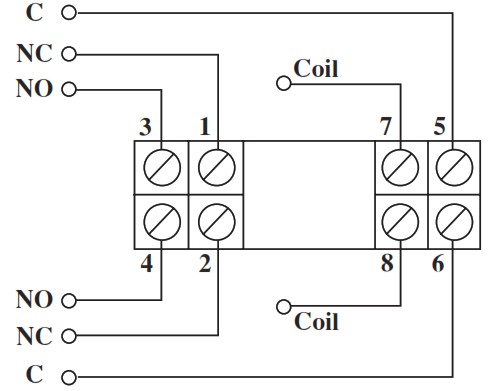

3. Relay will activate upon applying 48VDC to the terminals marked [7] and [8].
4. Use output contacts to make and break load circuits.


Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.

140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IIRDC48 – Rev. 011812
F21U
