AllParts Board Programming To Remote Transmitter
Specifications

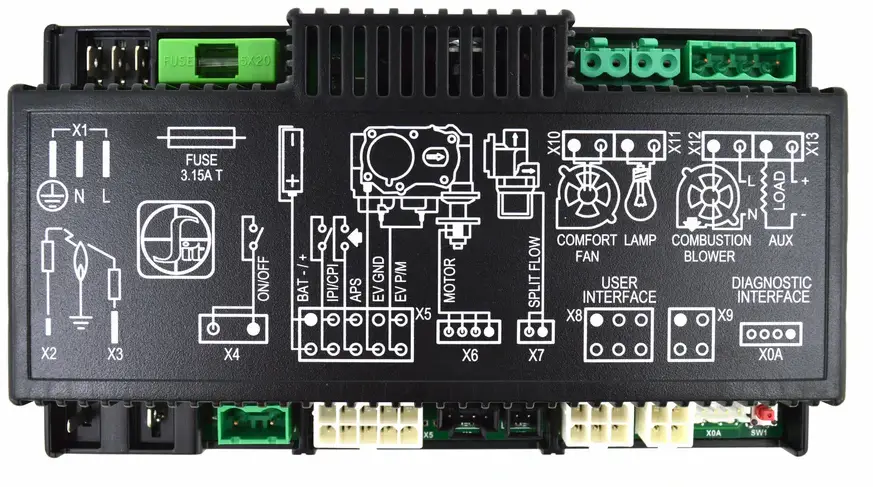

- Product Name: IFC Control Board
- Function: Programming to Remote Transmitter
- Contact Information:
- Call: 1-269-685-4123
- Text: 1-269-447-0412
- Email: customerservice@allpartsinc.com
Product Usage Instructions
- Step 1: Ensure the IFC Control Board is powered on and ready for programming.
- Step 2: Locate the Remote Transmitter module and ensure it is functioning properly.
- Step 3: Press the programming button on the IFC Control Board to start the programming mode.
- Step 4: Follow the instructions provided with the Remote Transmitter to initiate programming mode on the transmitter.
- Step 5: Once in programming mode, press the necessary buttons on both the IFC Control Board and Remote\ Transmitter to establish a connection.
- Step 6: Upon successful connection, you should hear additional beeps confirming the programming completion.
FAQs
- Q: How do I know if the remote is successfully programmed to the IFC module?
- A: Upon successful programming, you will hear additional beeps indicating the completion of the programming process.
- Q: What should I do if I encounter any issues during the programming process?
- A: If you face any difficulties or have questions, please refer to the contact information provided above to reach out for assistance.
USING INSTRUCTION
Before use, the new IFC board must be programmed to your remote transmitter:
- Locate the red button on your IFC board labeled SW1: this is the remote sync button.
- Press this button 1 time and you will hear an audible beep from the module. Now turn the remote on and you should hear additional beeps indicating that the remote is now programmed to the new IDC module.
CONTACT INFORMATION
- If you have any questions, please contact us:
- Call: 1-269-685-4123
- Text: 1-269-447-0412
- Email: customerservice@allpartsinc.com
