AJAX SYSTEMS MCAMPH1 Security System Devices and Detectors
Product Usage Instructions
Quick Start Guide
Before using the device, we strongly recommend reviewing the User Manual on the website.

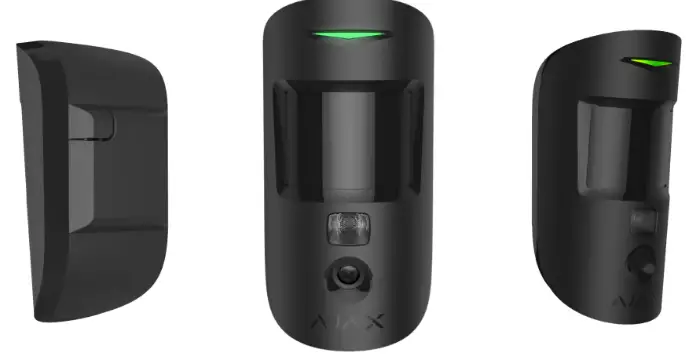

MotionCam (PhOD) Jeweller detects motion within a 39 ft range, snaps photos when triggered, and ignores pets.
- Operating frequencies 905-926.5 MHz FHSS (complies with part 15 of the FCC rules)
- Maximum effective radiated power:s20 mW
- Radio signal range up to 5,500 ft (in an open space)
- Power supply: 2 batteries CR23A
- Operation from battery up to 4 years
- Operating temperature range from 14″F to 104″F
- Operating humidity up to 75%
- Dimensions 5.3 X 2.7 X 2.4 °
- Weight 5.9 oz
MotionCam (PhOD) Jeweller is compatible only with hubs supporting visual alarm verification. Find this information on the hub’s packaging or Ajax official website.
- Complete set: 1. MotionCam (PhOD) Jeweller; 2. SmartBracket mounting panel; 3. 2 batteries CRl 23A (pre-installed); 4. Installation kit; 5. Quick Start Guide.
- CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Installation and Setup
- Quick Installation: Devices are easily added via QR codes and mounted with SmartBracket.
- Configuration via App: Use the Ajax PRO or Ajax Security System app.
- Firmware Updates: Automatic over-the-air updates keep the system secure and up to date.
- Zones & Scenarios: Customise triggers, alarm behaviours, and automation rules
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
To maintain compliance with the FCC’s RF Exposure guidelines, this equipment should be installed and operated with a minimum distance between 20 cm and the radiator and your body: Use only the supplied antenna. This equipment has been tested and found to comply with the limits for a Class B digital device, under Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
ISED Regulatory Compliance
This device contains a licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (7) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. To maintain compliance with ISED’s RF Exposure guidelines, this equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body: use only the supplied antenna.
Warranty
Warranty for Ajax devices is valid for two years after the purchase date. If the device does not work correctly, you should first contact the support service – in half of the cases, technical issues can be solved remotely. The full text of the warranty is available on the website: www.ajax.systems/warranty.
User Agreement
- www.ajax.systems/end-user-agreement.
- Technical support: support@ajax.systems
- The manufacturing date is indicated on a sticker at the bottom of the box. The importer’s name, location, and contact details are indicated on the package.
Designed by Ajax
Address: 5 Sklyarenka Str., Kyiv, 04073, Ukraine.
FAQs
Q1: Is the MCAMPH1 kit expandable?
Yes, you can add up to 200 devices, depending on the Hub model.
Q2: Can I monitor the system remotely?
Yes, through the Ajax Security System app (iOS/Android) with real-time alerts.
Q3: What happens during a power failure?
The Hub has a built-in backup battery and can operate independently for hours
