Aiphone GT Series Multi Tenant Entry Security Intercom
GT Series Multi-Tenant Entry Security Intercom
Easy to customize – mix and match any combination of stations to suit the building!
Use up to 16 entrance stations, 4 concierge / guard stations, and 500 tenant stations or telephone line interface adaptors.
Tenant Station Comparison Chart
| TENANT STATIONS |  |
FEATURES | ||||||
| Suite Security
(4 alarm inputs) |
Internal Communication (4 units per apartment) |
Personal Tenant Door Station (Replaces the peephole) |
Picture Memory (Records visitors) |
PTZ Control (170˚ view) |
Hands-Free Communication (VOX or PTT) |
Door Release (Unlocks entrance) |
||
| GT-2C /GT-2CB /GT-2CS | √ | √ | √ | √ | √ | √ | √ | |
| GT-1C | √ | √ | √ | |||||
| GT-1M-L | √ | |||||||
| GT-1A | √ | √ | ||||||
| GT-1D | √ | |||||||
Tenant Stations & Telephone Line Interface Adaptor
(mix and match up to 500)
Hands-Free Audio/Video with Internal Communication and PanTilt/Zoom Contro
GT-2C / GT-2CB / GT-2CS*
Full Featured Audio / Video Tenant Master Station
*Suite Security optional with up to 3 sub stations: GT‑2H / GT‑2HB / GT‑2HS
GT‑2C requires separate power supply
GT-2H / GT-2HB / GT-2HS*
Full Featured Audio / Video Tenant Sub Master Station
*Requires 1 GT‑2C / GT‑2CB / GT‑2CS
Ask about Suite Security, an exclusive Aiphone feature!
Hands-Free A/V with PanTilt/Zoom Control
GT-1C*
Audio / Video Tenant Station
*Up to 2 audio / video and 2 audio only stations per tenant
GT-1M-L*
Audio / Video Tenant Station
*Up to 2 audio / video and 2 audio only stations per tenant
Hands-Free Audio Only

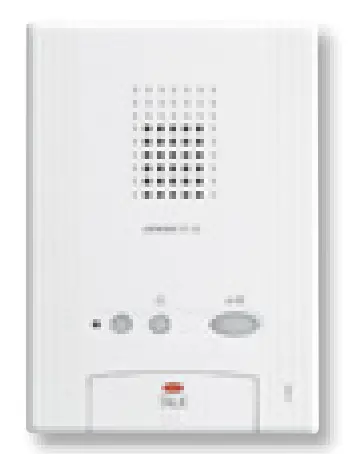

GT-1A*
Audio Only Tenant Station
*Up to 4 audio only stations per tenant
Handset Audio Only
GT-1D*
Audio Only Tenant Station
*Up to 4 audio only stations per tenant
Telephone Line Interface
GT-TLI*
Telephone Line Interface Adaptor
*Provides ability to answer calls and unlock doors using a telephone
GT‑TLI requires separate power supply
Concierge/Guard Station
(up to 4)
GT-MK
Concierge / Guard Station
GFW-S
Desk Stand for GT-MK
Personal Tenant Door Stations (1 per GT-2C)

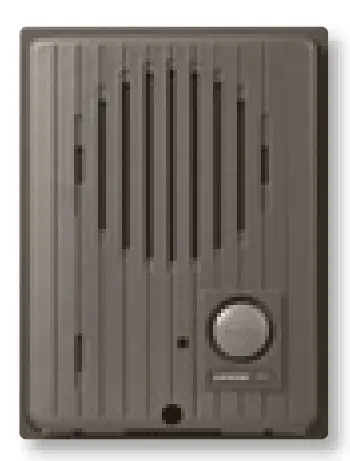

GT-D
Surface Mount Audio Only Door Station

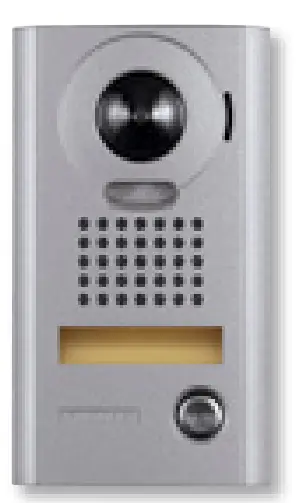

JK-DA
170˚ Wide Angle Digital Pan Tilt and Zoom Surface Mount Video Door Station
JK-DV
170˚ Wide Angle Digital Pan Tilt
and Zoom Vandal Resistant Surface Mount Video Door Station
JK-DVF
170˚ Wide Angle Digital Pan Tilt and Zoom Vandal Resistant
Flush Mount Video Door Station
Control Units, Power Supply, and Other Accessories

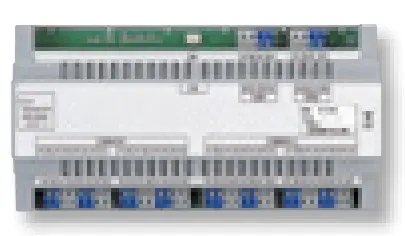

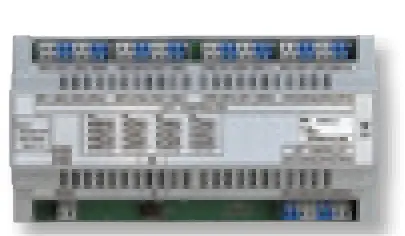

GT-BC
Audio Control Unit
GT-VBC
Video Control Unit
GT-4Z
4-Way Video
Distribution Adaptor
GT-BCX*
Expanded Audio Control Unit
*Includes mounting rail
GT-VBX*
Expanded Video Control Unit
*Includes mounting rail
GTW-LC*
Multi-Relay Control Unit
*Includes mounting rail

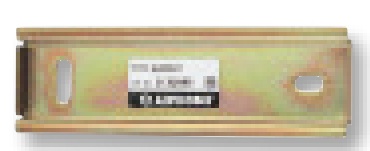

W-DIN11
DIN Mounting Rail for GT-BC, GT-VBC, or GT-4Z
PS-2420UL
24V DC, 2A Power Supply

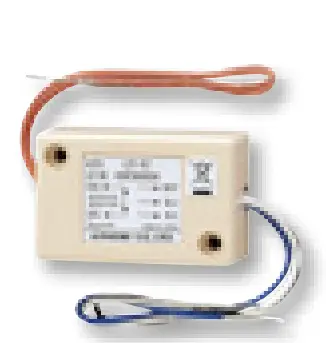

GT-RY
External Activation Relay

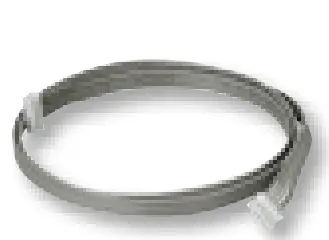

GF-C
30″ Internal Connector for Expanded Direct Select Modules

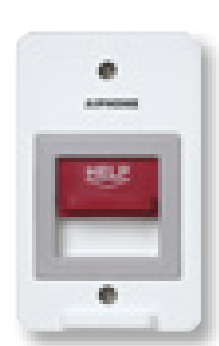

GFK-PS
Urgent Pull Cord Call Station
GT-HS
Optional Add-On Handset for GT-2C, GT-2CB, GT-2CS, GT-2H, GT-2HB, GT-2HS, or GT-1C
Ready-To-Install Entrance Stations

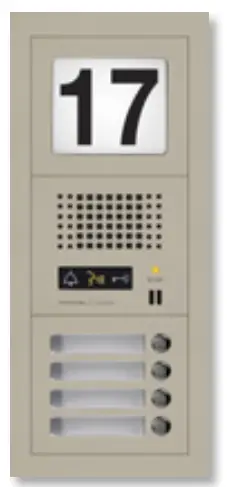

Direct Select
ENTRANCE STATION
Modular-Style Direct Select Audio Only Entrance Station

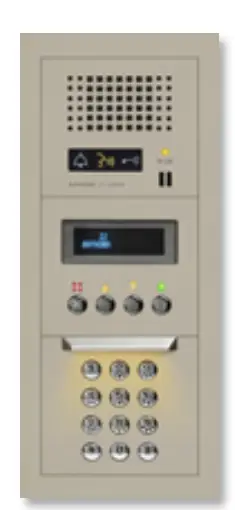

Digital Scroll
GTA-DES*
Modular-Style Digital Scroll Audio Only Entrance Station
*Configuration sold as a kit

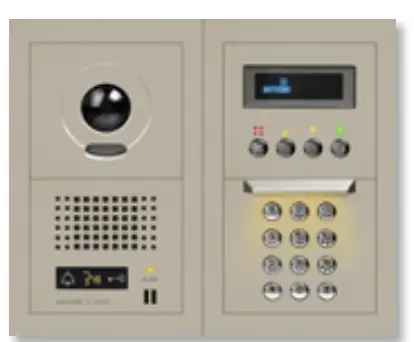

GTV-DES202*
Modular-Style Digital Scroll Video Entrance Station
*Configuration sold as a kit
GTV-DES104*
Modular-Style Digital Scroll Video Entrance Station
*Configuration sold as a kit
All-In-One
GT-DM
All-In-One Digital Scroll Stainless Steel Flush Mount Video Entrance Station
SBX-GTDM*
Surface Mount Box for GT-DM
*Sold separately
Modular Components for Custom Entrance Stations
Direct Select Options
Digital Scroll Options
Mix and Match with Required Audio Panel / Module – Compatible with Direct Select and Digital Scroll Options
**IMPORTANT NOTICE:
The Audio Panel (GT-DP-L) and Module (GT-DA-L) are required to customize entrance stations.
GT-AC
Access Control Keypad Module
GT-HID
ProxPoint Plus® Embedded HID® Card Reader Module
GT-OP2
2-Module Postal Lock
GT-OP3*
3-Module Postal Lock
*Top position open for additional module
Mounting Components for Entrance Stations

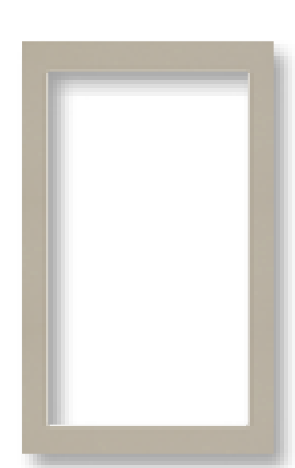

Front Frames
GF-2F
2-Module Front Frame
GF-3F
3-Module Front Frame
GT-4F
4-Module Front Frame

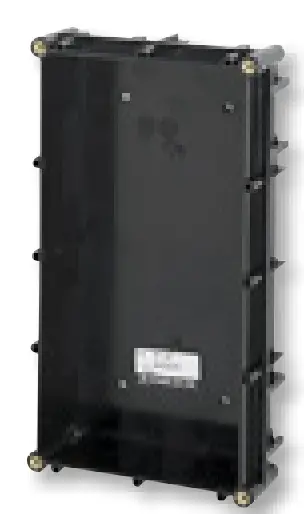

Back Boxes
GF-2B
2-Module Semi-Flush Back Box
GF-3B
3-Module Semi-Flush Back Box
GT-4B
4-Module Semi-Flush Back Box
Optional Rain Hoods
GT-104H*
Rain Hood
*GT‑103H / GT‑102H also available
GT-203H*
Rain Hood
*GT‑202H also available
Optional Surface Mount Boxes (replaces semi-flush back boxes)

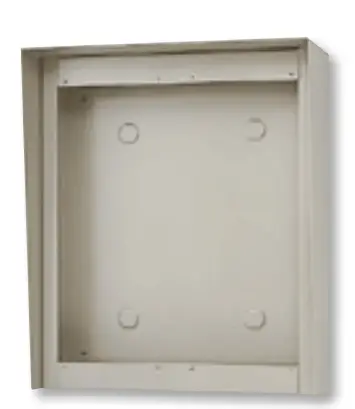

GT-104HB*
Hooded Surface Mount Box
*GT‑103HB / GT‑102HB also available
GT-203HB*
Hooded Surface Mount Box
*GT‑202HB / GT‑303HB also available
Customers Support
Need assistance specifying the GT Series? Use the online QuikSpec Plus tool. Register for
free, save in multiple formats, and download the specs! www.aiphone.com/quikspecplus.htm
800.692.0200
www.aiphone.com
